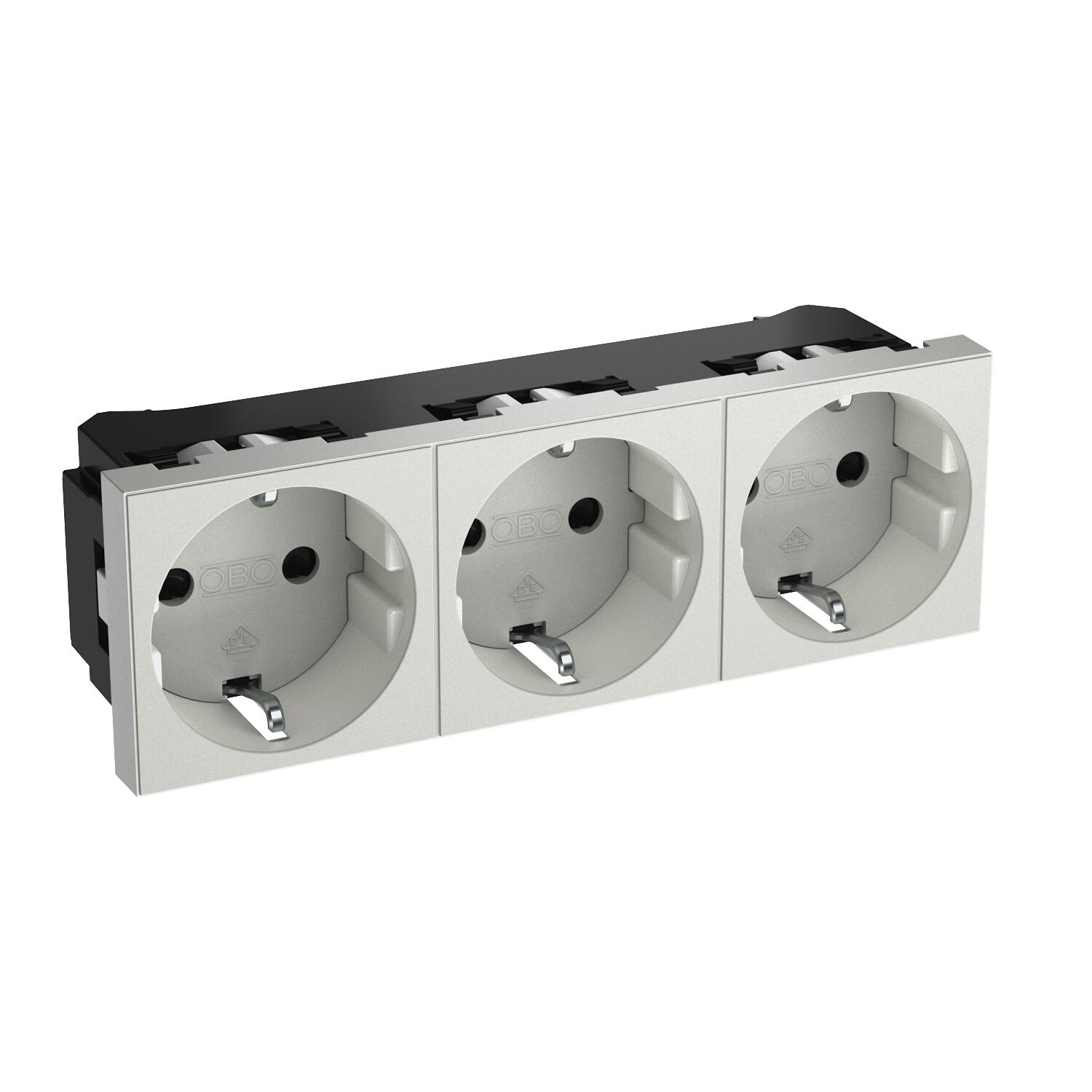

0° socket, protective contact, triple 3 | Triple 0° | Pure white; RAL 9010

0° socket, protective contact, triple

Item no. 6119750 | EAN 4012197482190

Item no. / Types

Number of units	3

Version for	Triple 0°

Colour

Product description

Product description

Protective contact socket, triple 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals according to IEC 60884-1.

Technical data

Technical data

Closable	no
Coding	no
Colour	Pure white; RAL 9010
Connection type	Screwless terminal
Cover	Central plate

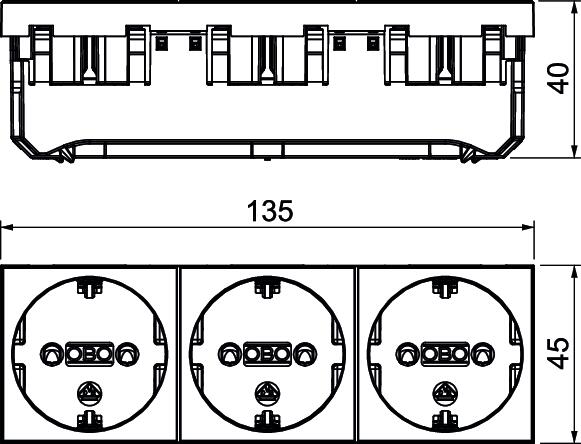

Dimension	135x45x42
Ejection mechanism	no
Error current protection	no
Fastening type	Lock
For more difficult conditions (according to VDE)	no
Halogen-free	yes
Height	45 mm
Hinged cover	no
increased touch protection	yes
Insulated installation	no
Labelling panel	no
Material	Polycarbonate Eco
Mounting type	Device installation duct
Nominal current	16 A
Nominal voltage	250 V
Number of poles	2
Number of units	3

Operating temperature, max.	40 °C
Operating temperature, min.	-5 °C
Power reserve	no
Printed label/coding	Without printing
Protection rating	Other
Recycled material content	90 %
Rotated central insert	no
Socket angle	0°
Socket version	Protective contact
Special power supply	Without special power supply
Surface	Matt
Surface version	Matt
Surge protection	no
Transparent	no
Version for	Triple 0°
Warning light	no
Width	135 mm
With fine-wire fuse	no
With functional lighting	no
With on/off switch	no
With orientation lighting	no

All types

All types

Types	Number of units	Version for	Colour	Item no.	Quantity	SSU
STD-D0N RW3	3	Triple 0°	Pure white; RAL 9010	6119750	piece	1 piece
STD-D0N ROR3	3	Triple 0°	Pure orange; RAL 2004	6119753	piece	1 piece
STD-D0N MZGN3	3	Triple 0°	Mint green; RAL 6029	6119756	piece	1 piece
STD-D0N SRO3	3	Triple 0°	Signal red; RAL 3001	6119759	piece	1 piece
STD-D0N SWGR3	3	Triple 0°	Black-grey; RAL 7021	6119762	piece	1 piece
STD-D0N AL3	3	Triple 0°	Aluminium painted	6119765	piece	1 piece
