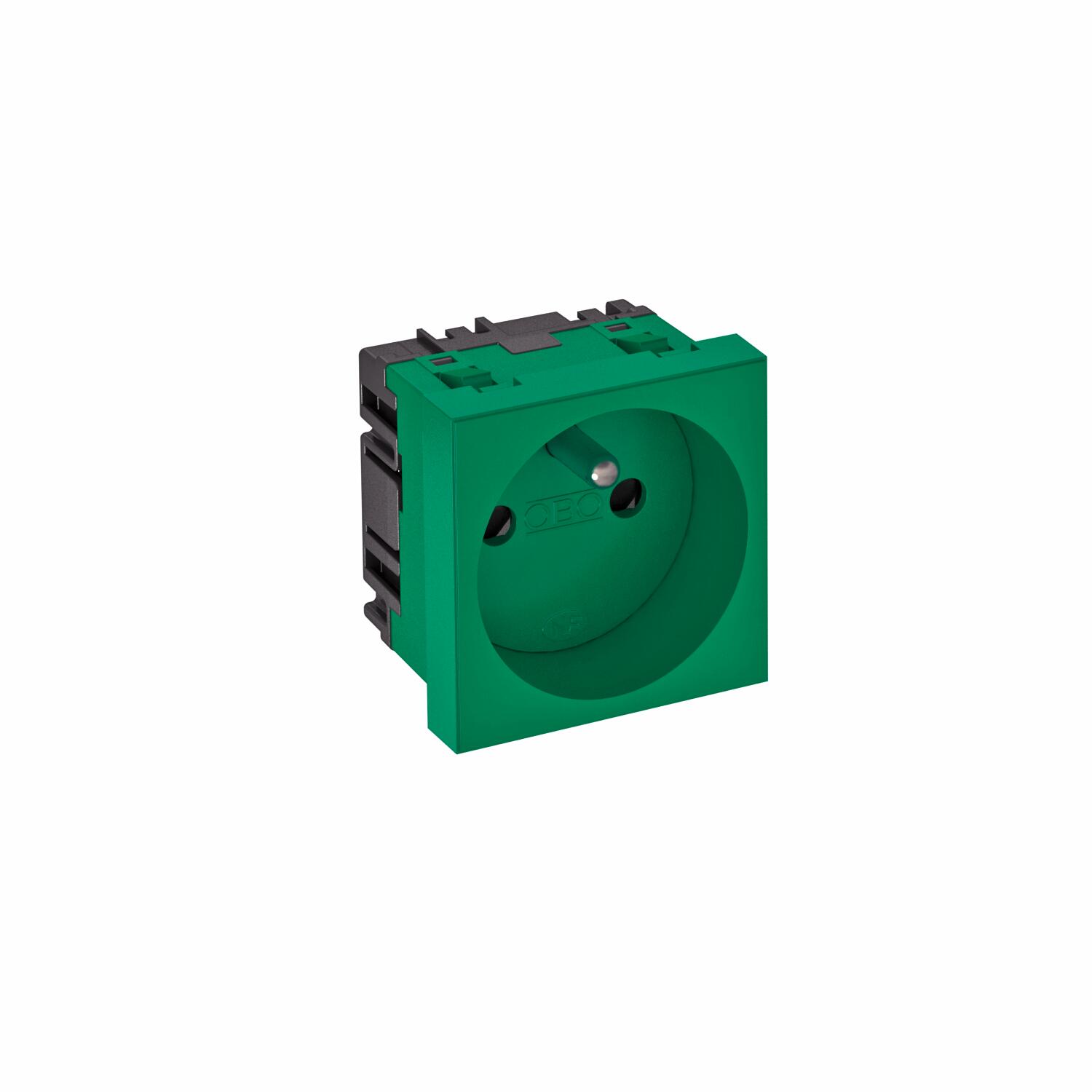

0° socket, with earthing pin, single
Item no. 6120155 | EAN 4012196048069
- Product description
-
Product descriptionSocket with earthing pin, single 0°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1.
For installation in Rapid 45 trunking, device installation trunking, service poles, underfloor systems and desk boxes.
-
- Technical data
-
Technical data
Approvals VDE Closable no Coding no Colour Mint green; RAL 6029 Connection type Screwless terminal Cover Central plate Depth 39 mm Dimension 250V, 10/16A Ejection mechanism no Error current protection no Fastening type Lock For more difficult conditions (according to VDE) no Halogen-free yes Hinged cover no increased touch protection yes Insulated installation no Labelling panel no Material Polycarbonate Mounting type Device installation duct Nominal current 16 A Nominal voltage 250 V Number of poles 2 Number of units 1 Operating temperature, max. 40 °C Operating temperature, min. -5 °C Printed label/coding Without printing Protection rating Other ROHS-conformant Exempt Rotated central insert no Socket angle 0° Socket version NF Special power supply Without special power supply Surface version Matt Surge protection no Transparent no Version for Single 0° Warning light no With fine-wire fuse no With functional lighting no With on/off switch no With orientation lighting no Dimensions

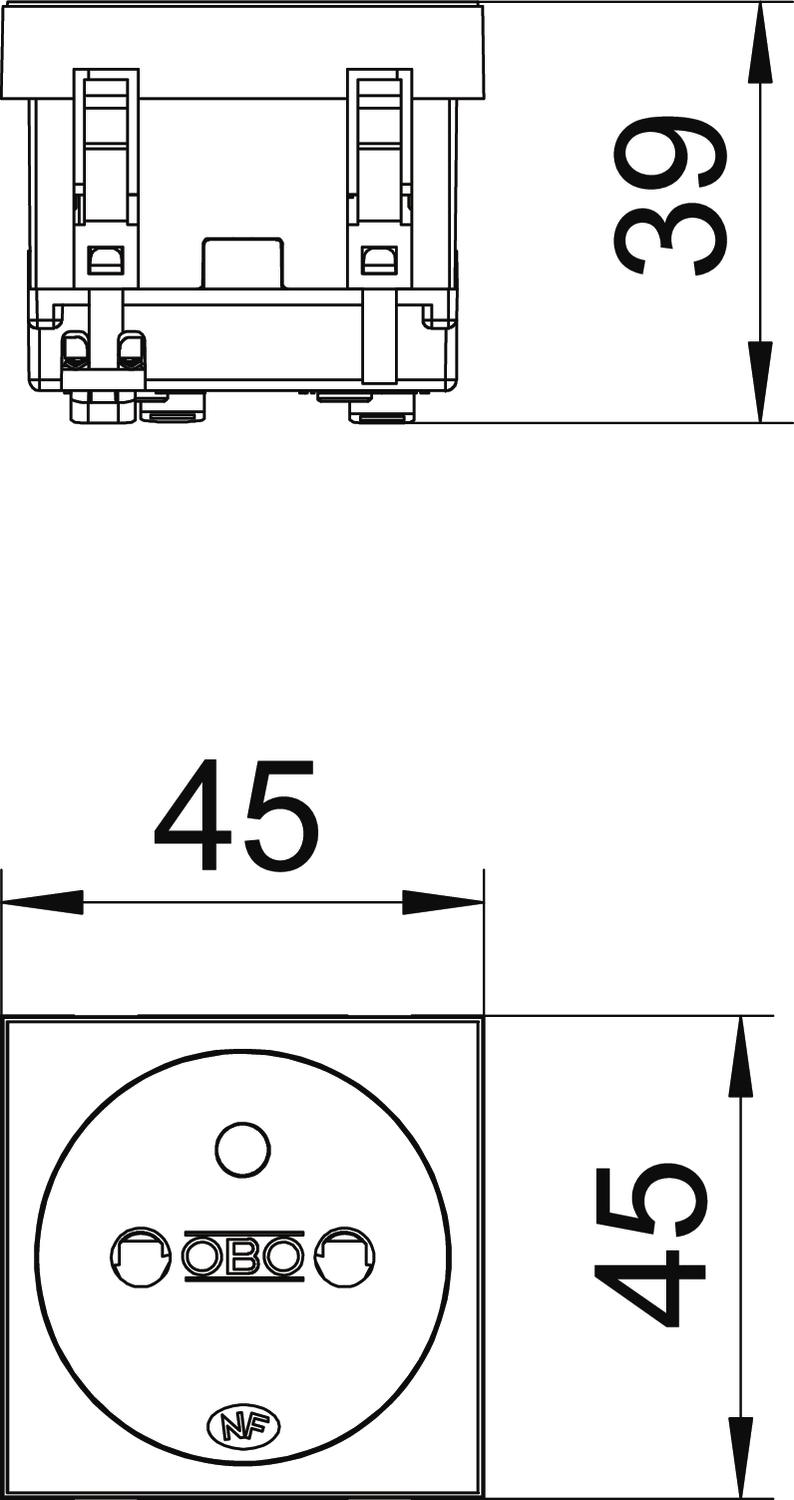

Height 45 mm Width 45 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1467 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1467 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-27T00:00:00.000+0200 - All types
-
All types
