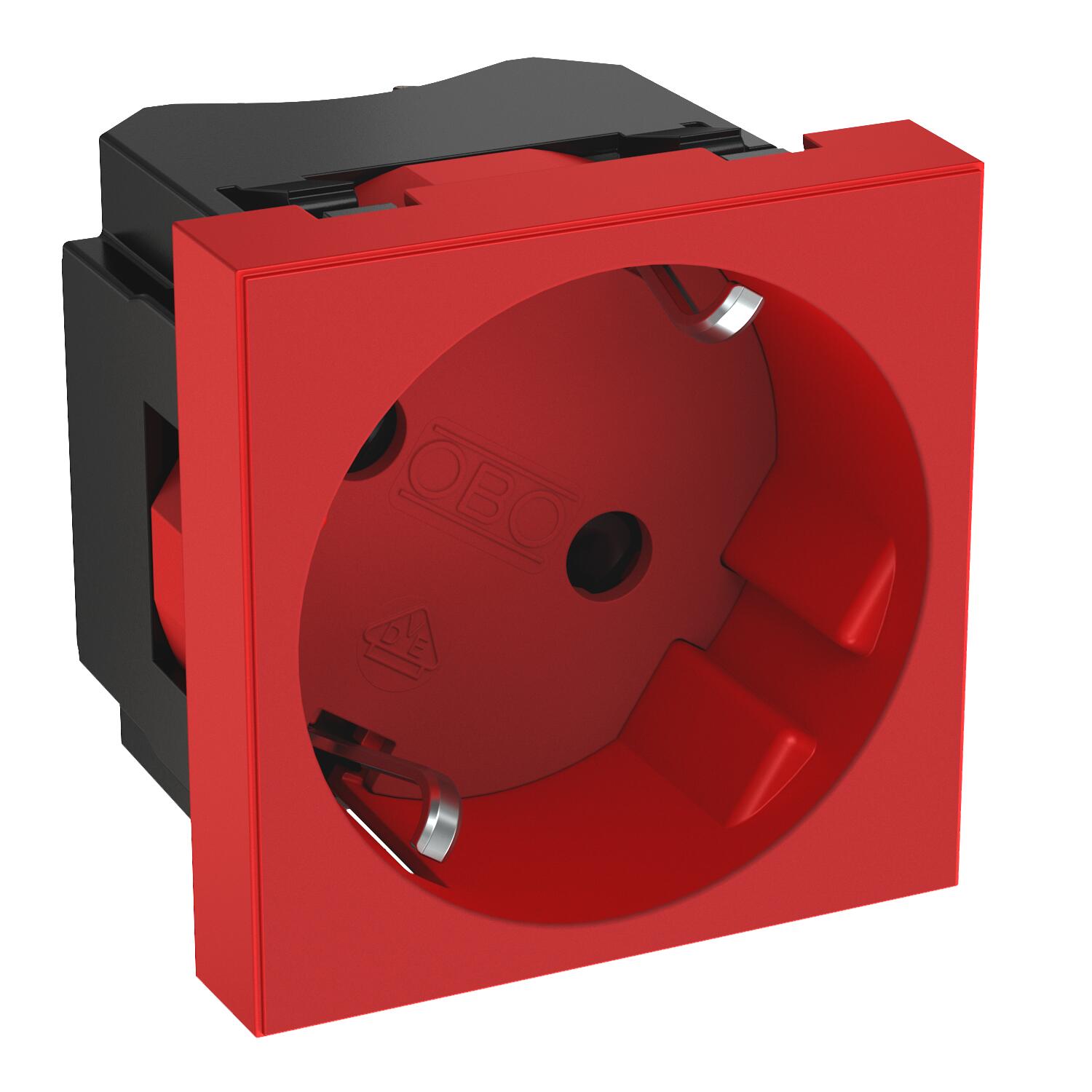

33° socket, protective contact, single
Item no. 6119784 | EAN 4012197482619
- Product description
-
Product descriptionProtective contact socket, single 33°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals according to IEC 60884-1.
-
- Technical data
-
Technical data

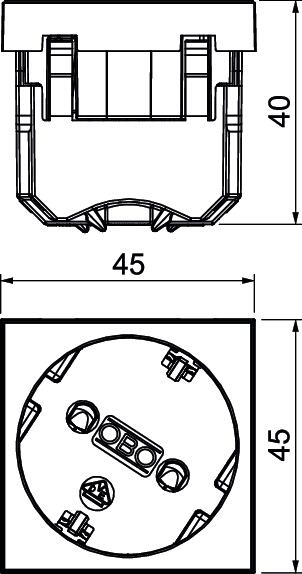

Closable no Coding no Colour Signal red; RAL 3001 Connection type Screwless terminal Cover Central plate Depth 42 mm Dimension 45x45x42 Ejection mechanism no Error current protection no Fastening type Lock For more difficult conditions (according to VDE) no Halogen-free yes Hinged cover no increased touch protection yes Insulated installation no Labelling panel no Material Polycarbonate Eco Mounting type Device installation duct Nominal current 16 A Nominal voltage 250 V Number of poles 2 Number of units 1 Operating temperature, max. 40 °C Operating temperature, min. -5 °C Printed label/coding Without printing Product series Modul 45® socket Protection rating Other Rotated central insert yes Socket angle 33° Socket version Protective contact Special power supply Without special power supply Surface Matt Surface version Matt Surge protection no Transparent no Version for Single 33° Warning light no With fine-wire fuse no With functional lighting no With on/off switch no With orientation lighting no Dimensions
Height 45 mm Width 45 mm Materials and Packaging
Recycled material content 90 % - All types
-
All types
- Downloads
-
Data sheet STD-D3N SRO1 / 6119784 , 0.22MB , pdfNo invitation to tender text is available for this product.
