90° bend 60 FS

Item no. 6211426 | EAN 4012196684939

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

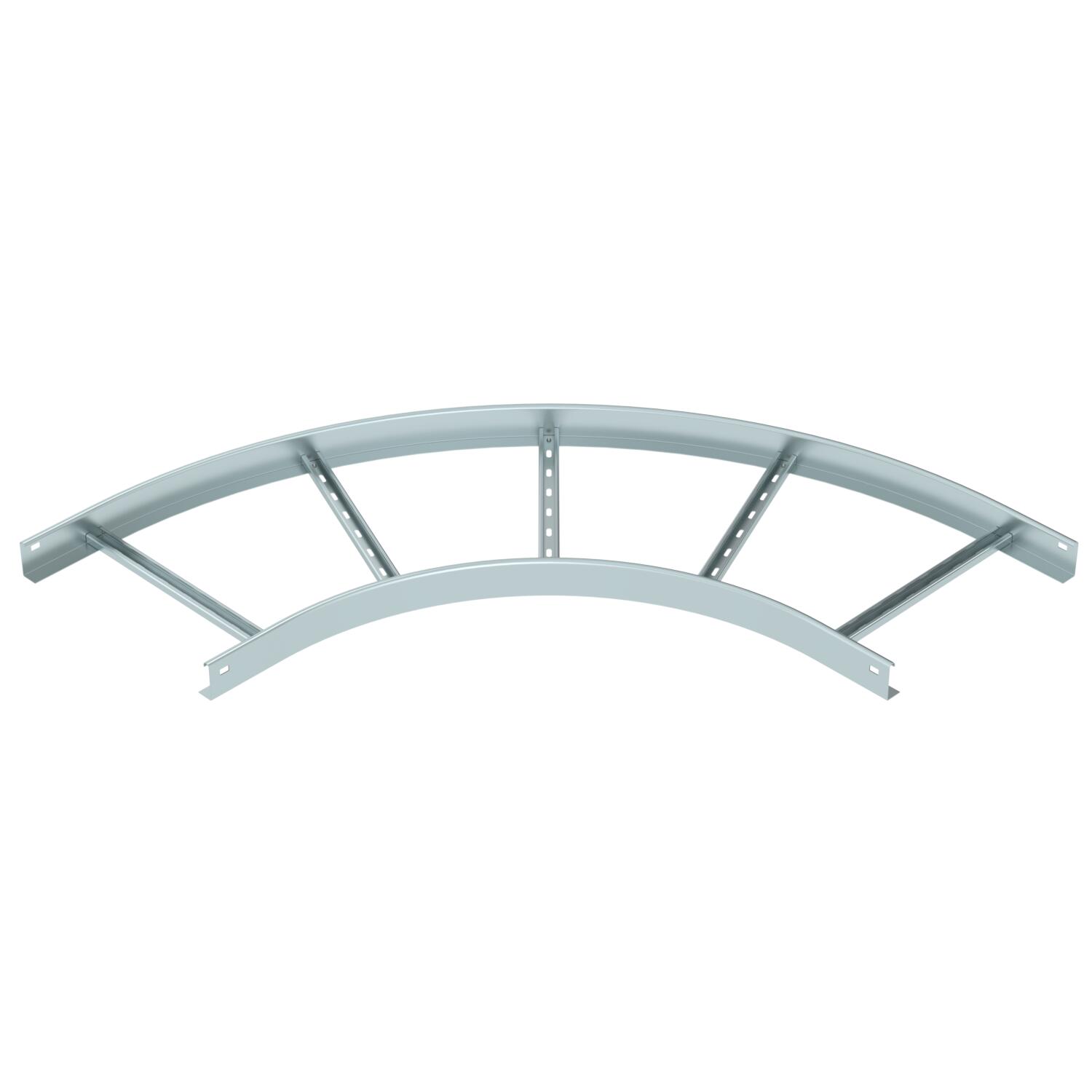

Horizontal 90° bend, fitting for cable ladders, side height 60 mm With connector perforation. Can be used in indoor areas. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Dimension	60x400
Hinged	no
Maintain electrical functions	no
Material	Steel

Rail thickness	1,5 mm
Rustproof steel, pickled	no
Side perforation	no
Side rail version	Flat profile
Surface	Strip galvanised
Version of the rungs	Profile unperforated
Wide-span version	no

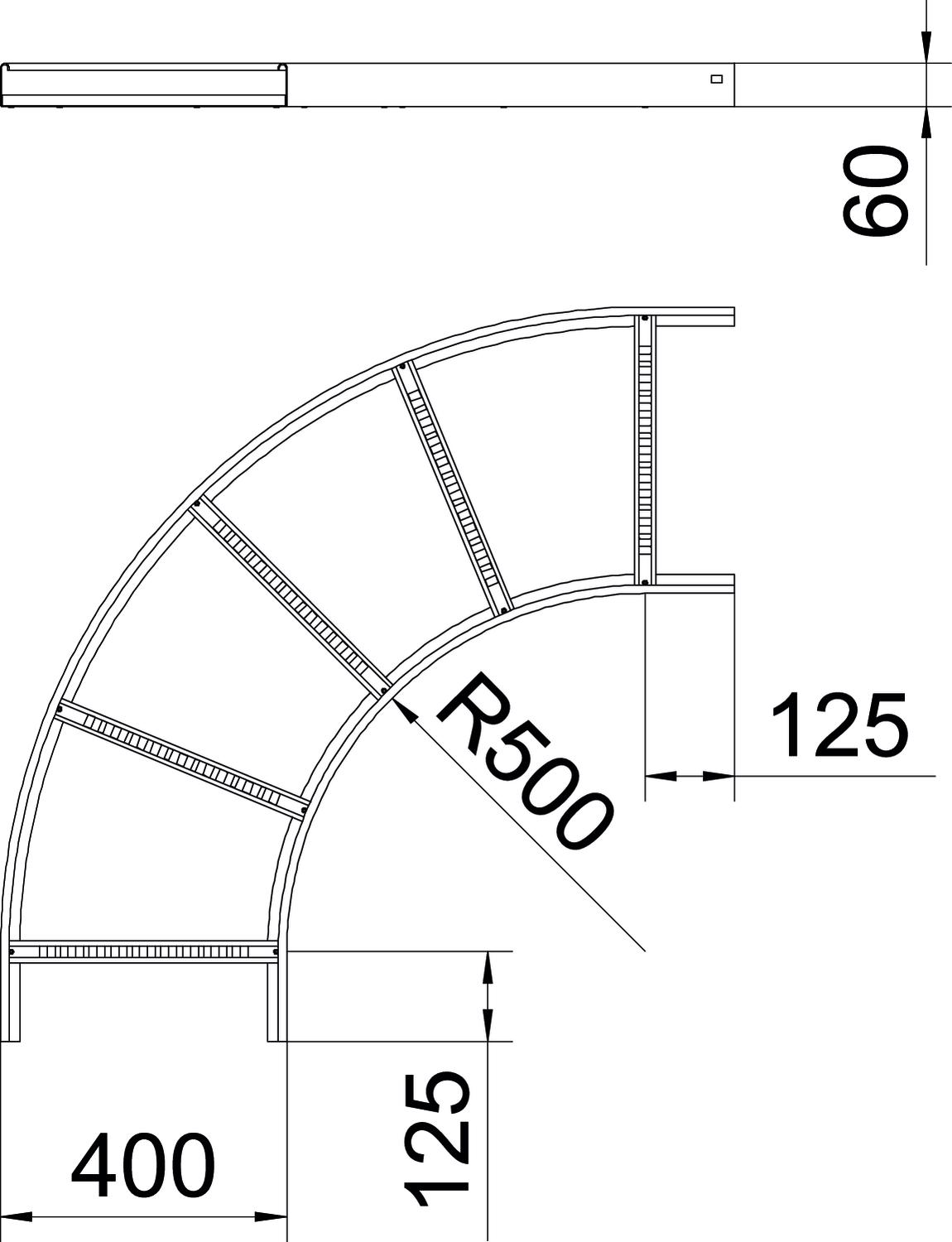

Dimensions

Dimension B	400 mm
Dimension R	400 mm

Height	60 mm
Width	400 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	11,9134 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	11,9134 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-27T00:00:00.000+0200

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LB 90 620 R5 FS	200 mm	1.5 mm	6211422	piece	1 piece
LB 90 630 R5 FS	300 mm	1.5 mm	6211424	piece	1 piece
LB 90 640 R5 FS	400 mm	1.5 mm	6211426	piece	1 piece
LB 90 650 R5 FS	500 mm	1.5 mm	6211428	piece	1 piece
LB 90 660 R5 FS	600 mm	1.5 mm	6211430	piece	1 piece
