90° bend VS 60 A2
Item no. 7160046 | EAN 4012196259991
- Product description
-

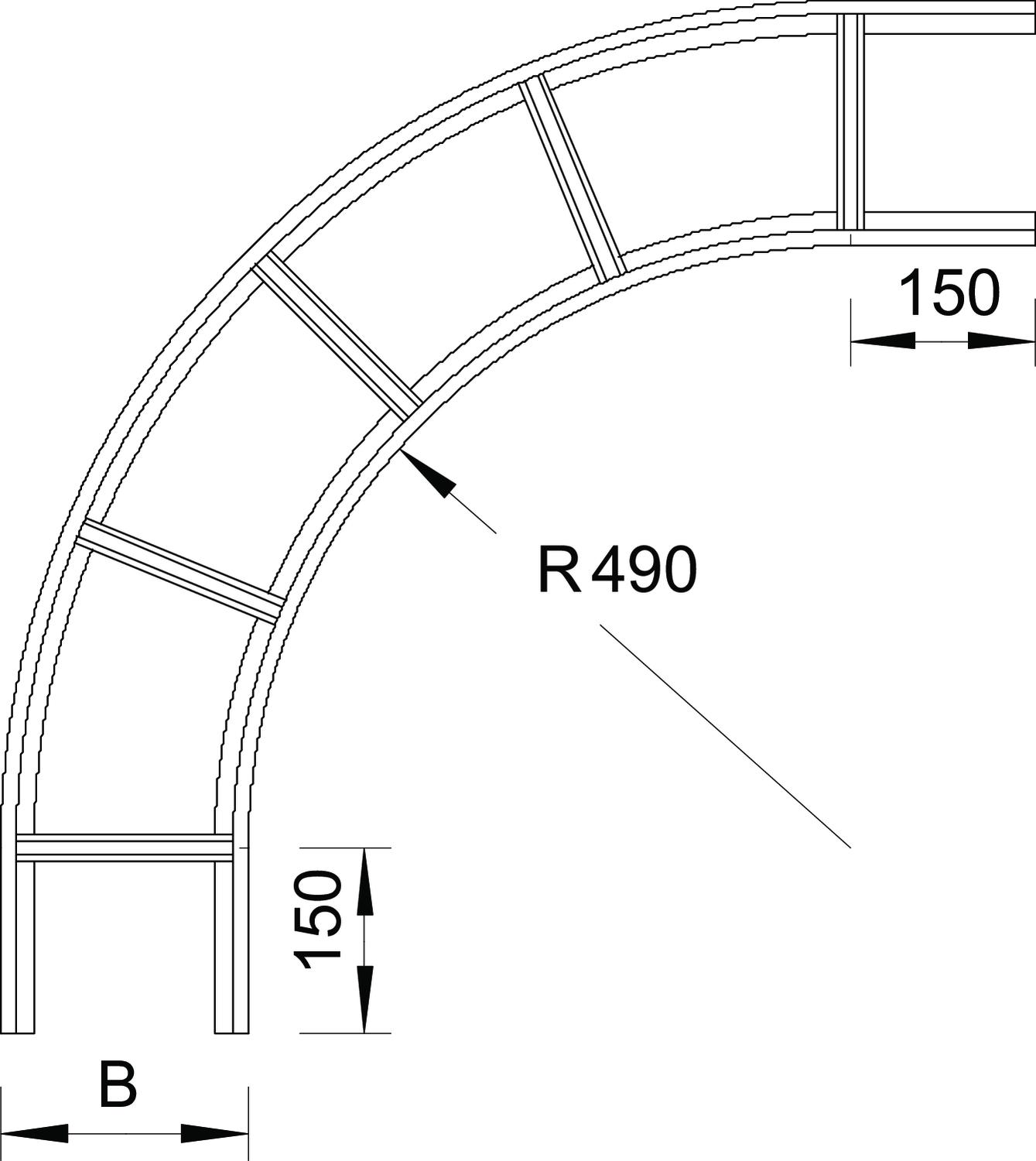

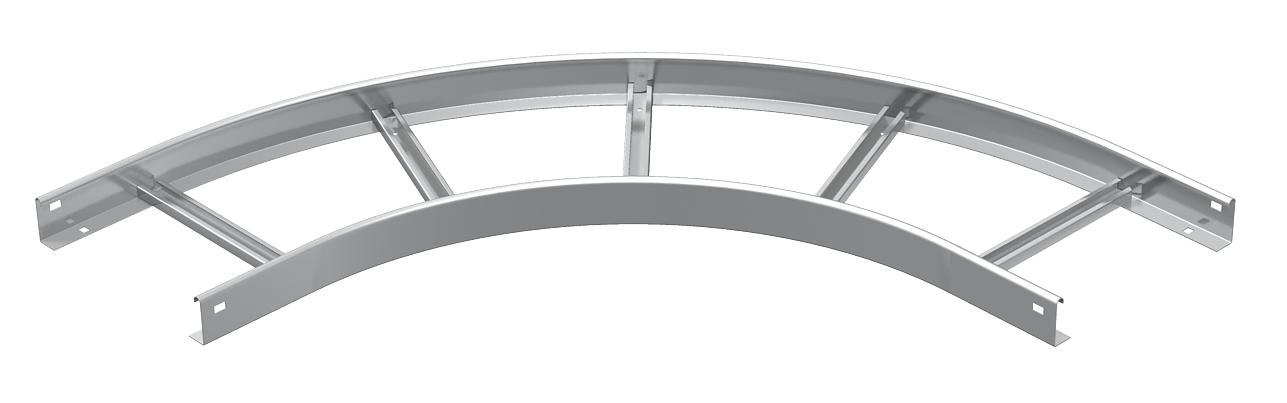

Product description90° bend, horizontal, for cable ladders with VS rungs and a side height of 60 mm.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour stainless steel Dimension 60x200 Hinged no Maintain electrical functions no Material Stainless steel 1.4301 Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile unperforated Wide-span version no Dimensions
Height 60 mm Width 200 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 18,7251 kg CO2e / 1 Piece CO₂ Footprint (GWP) 18,7251 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector A2
LVG 60 A2 6208846 10 piece - Downloads
-
Data sheet LBI 90 620 VS A2 / 7160046 , 0.20MB , pdfEU declaration of conformity LBI 90 620 VS A2 / 7160046 , 0.10MB , pdfUK Declaration of Conformity LBI 90 620 VS A2 / 7160046 , 0.09MB , pdfREACH Declaration of conformity LBI 90 620 VS A2 / 7160046 , 0.12MB , pdfRoHS Declaration of conformity LBI 90 620 VS A2 / 7160046 , 0.13MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
