Adjustable connector A2
Item no. 6227965 | EAN 4012195696407
- Product description
-

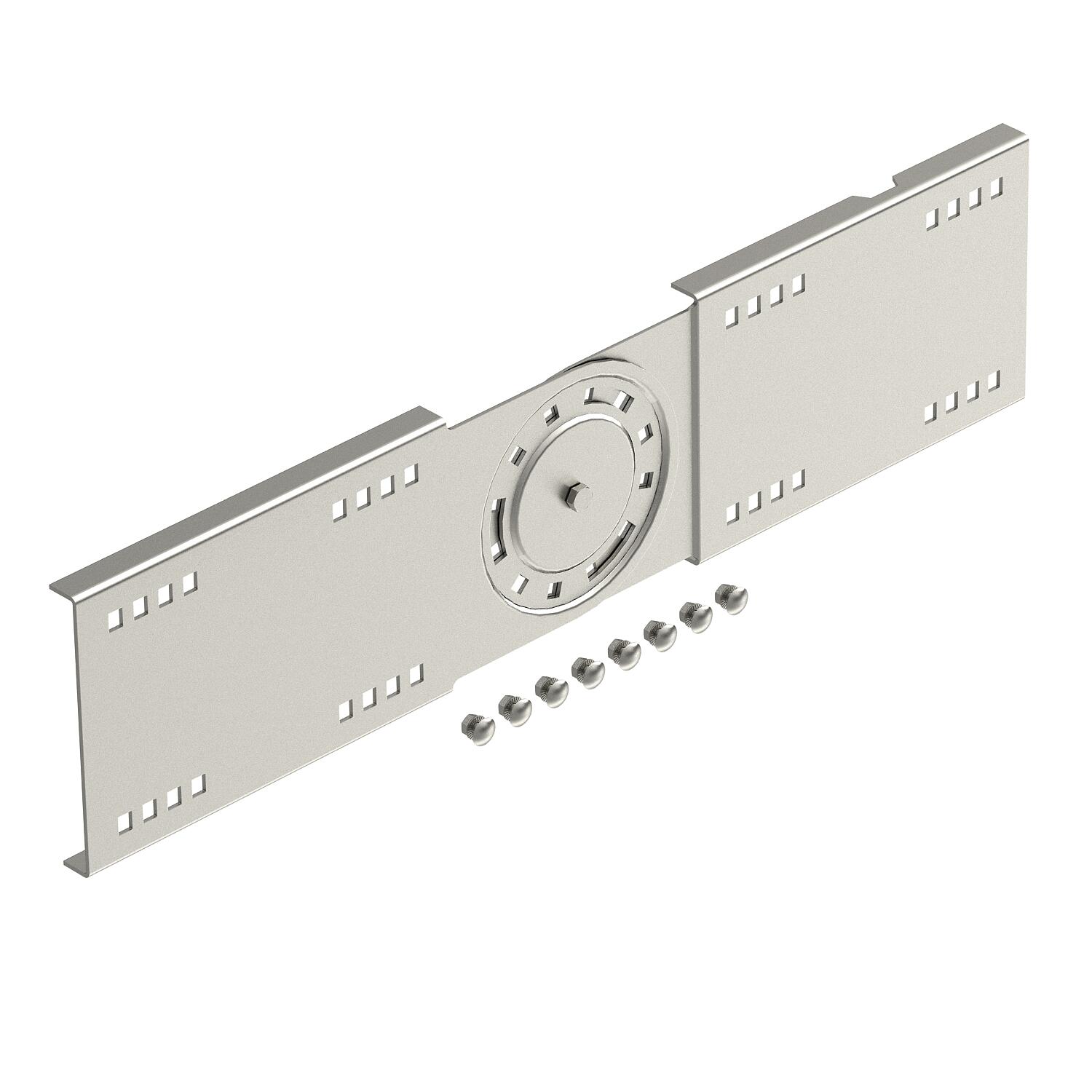

Product descriptionAdjustable connector for wide span cable trays and ladders with a side height of 160 mm.
Including appropriate bolts, washers and nuts.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical yes Colour stainless steel Connection type Screw connector Dimension 160x680 Maintain electrical functions no Material Stainless steel 1.4301 Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 160 mm Suitable for mesh cable tray no Surface Bright, treated Version for Straight connector Dimensions
Height 160 mm Length 680 mm Width 20 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 18,4105 kg CO2e / 1 Piece CO₂ Footprint (GWP) 18,4105 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WRGV 160 A2 / 6227965 , 0.20MB , pdfEU declaration of conformity WRGV 160 A2 / 6227965 , 0.11MB , pdfUK Declaration of Conformity WRGV 160 A2 / 6227965 , 0.09MB , pdfREACH Declaration of conformity WRGV 160 A2 / 6227965 , 0.12MB , pdfRoHS Declaration of conformity WRGV 160 A2 / 6227965 , 0.13MB , pdfMounting instructions Wide span cable ladders , 7.96MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
