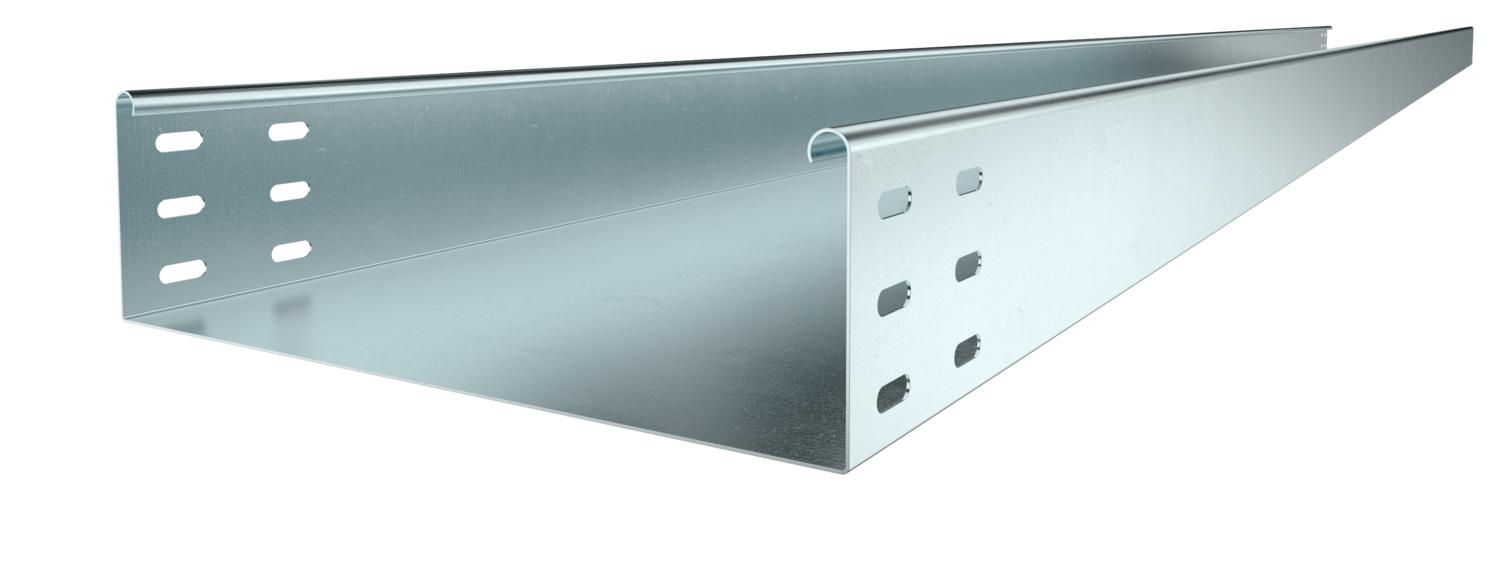

Cable tray MKSU 85 FS

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Strip galvanized

Product description

Product description

MKSU 85 = medium-duty cable tray system with a side height of 85 mm.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Including connector, type RLVL 85.

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	8,9541 kg CO₂e / 1 Meter
Colour	zinc
Connector version	Without connectors
Dimension	85x300
Dimension	85x300x3000
Dimension B	300 mm
Height	85 mm
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1 mm

Rustproof steel, pickled	no
Side perforation	no
Support spacing 1.5 m	1,75 kN/m
Support spacing 1.75 m	1,4 kN/m
Support spacing 2.0 m	1,1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Strip galvanized
Type of connector, cable support system	Screwed
Usable cross-section	25300 mm²
Usable cross-section	253 cm²
Wide-span version	no
Width	300 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKSU 810 FS	3000 mm	100 mm	1 mm	no	Steel	Strip galvanized	6063312	m	3 m
MKSU 820 FS	3000 mm	200 mm	1 mm	no	Steel	Strip galvanized	6063314	m	3 m
MKSU 830 FS	3000 mm	300 mm	1 mm	no	Steel	Strip galvanized	6063330	m	3 m
MKSU 840 FS	3000 mm	400 mm	1 mm	no	Steel	Strip galvanized	6063332	m	3 m
MKSU 850 FS	3000 mm	500 mm	1 mm	no	Steel	Strip galvanized	6063334	m	3 m
MKSU 860 FS	3000 mm	600 mm	1 mm	no	Steel	Strip galvanized	6063336	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight and angle connector	RLVL 85 FS	6067123	piece	10 piece
Joint plate FS	SSLB 300 FS	7070217	piece	20 piece
45° bend 85 FS	RB 45 830 FS	6036204	piece	1 piece
90° bend 85 FS	RB 90 830 FS	6036704	piece	1 piece
Bend, angle-adjustable, 85 FS	RB W 830 FS	6037204	piece	1 piece
Add-on tee 85 FS	RAA 830 FS	6042135	piece	1 piece
T piece 85 FS	RT 830 FS	6038214	piece	1 piece
Cross-over 85 FS	RK 830 FS	7027335	piece	1 piece
Cover with turn buckle FS	DRL 300 FS	6052304	m	3 m
Separating retainer 85 FS	TSG 85 FS	6062114	m	3 m
45° bend 85 FS	RB 45 830 FS	7000510	piece	1 piece
90° bend 85 FS	RB 90 830 FS	7001800	piece	1 piece
