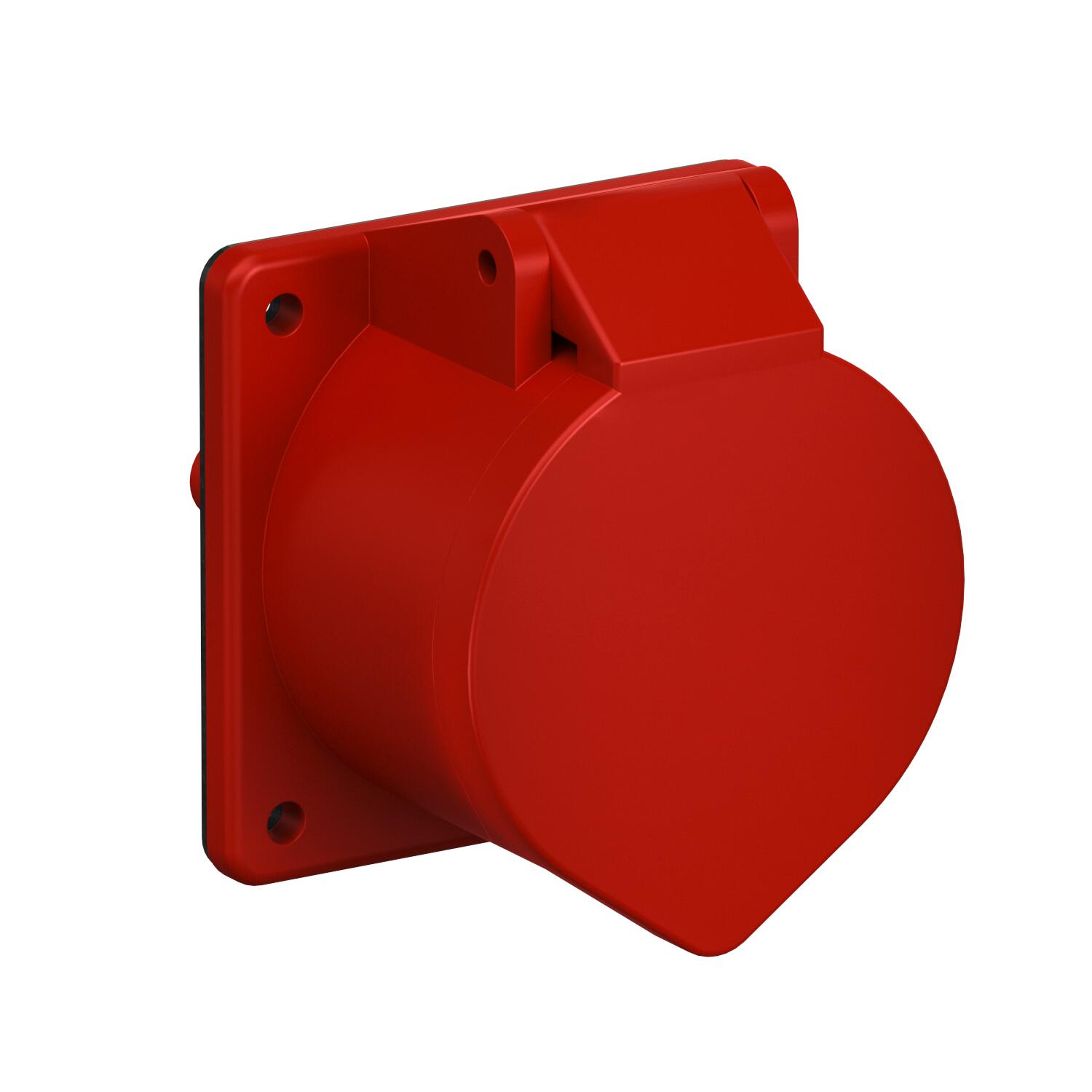

CEE connection unit, 16 A
Item no. 6109874 | EAN 4012195125594
- Product description
-
Product descriptionCEE socket with 60 mm fastening track, 3-pin + N + PE, 400 V, 16 A, 6 h.
-
- Technical data
-
Technical data

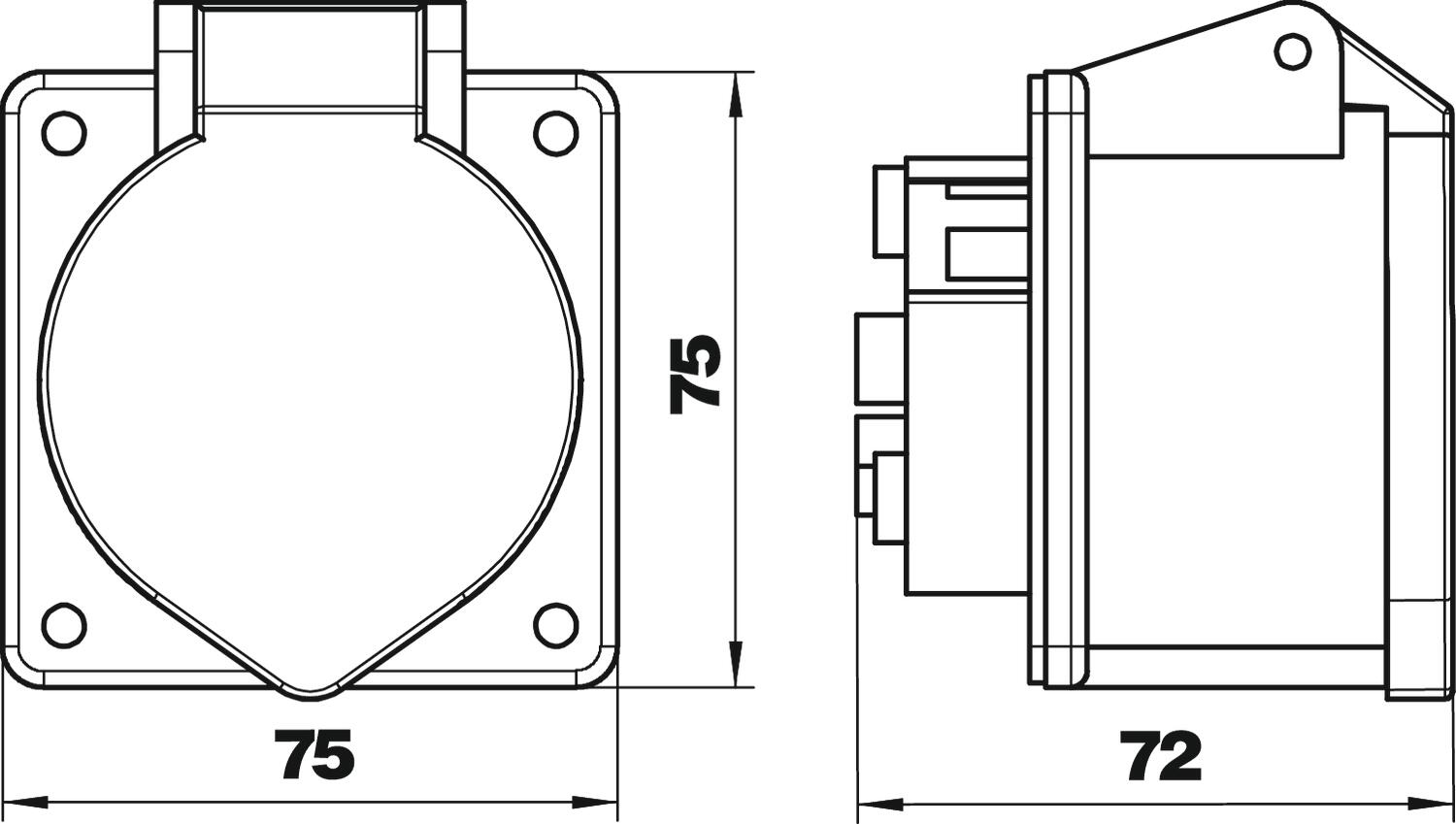

Cable entry Other Connection technology Screwless terminal Dimension 75x75x72 Direction of insertion Straight Drill hole spacing, horizontal 60 mm Drill hole spacing, vertical 60 mm Flange dimension, horizontal 75 mm Flange dimension, vertical 75 mm Military version no Nominal current 16 A Nominal voltage 400 V Pole number 5 Protection rating IP44 Voltage according to EN 60309-2 400 V (50+60 Hz) red Dimensions
Height 75 mm Length 72 mm Width 75 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1064 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1064 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet CEE-16A / 6109874 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity CEE-16A / 6109874 , 0.10MB , pdfREACH Declaration of conformity CEE-16A / 6109874 , 0.13MB , pdfRoHS Declaration of conformity CEE-16A / 6109874 , 0.13MB , pdf
