Note: This article is discontinued.

Clamping angle KWH A2 25 | 5.7

morepic-1

morepic-2

morepic-3

Clamping angle KWH A2

Item no. 6355358 | EAN 4012196195312

Item no. / Types

Height

F in kN	5.7 kN

Product description

Product description

Clamping angle, with hammer-head bolt, type KWH, for fixing in the profile rail, type CPS 5.

Technical data

Technical data

Bolt	M12 x 60
Dimension	60x50
F in kN	5,7 kN
Height	25 mm

Material	Stainless steel
Surface	Bright, treated
Thread metric	12

All types

All types

Types	Height	F in kN	Item no.	Quantity	SSU
KWH 5 A2	5 mm	5.7 kN	6355307	Pair	5 Pair
KWH 10 A2	10 mm	5.7 kN	6355315	Pair	5 Pair

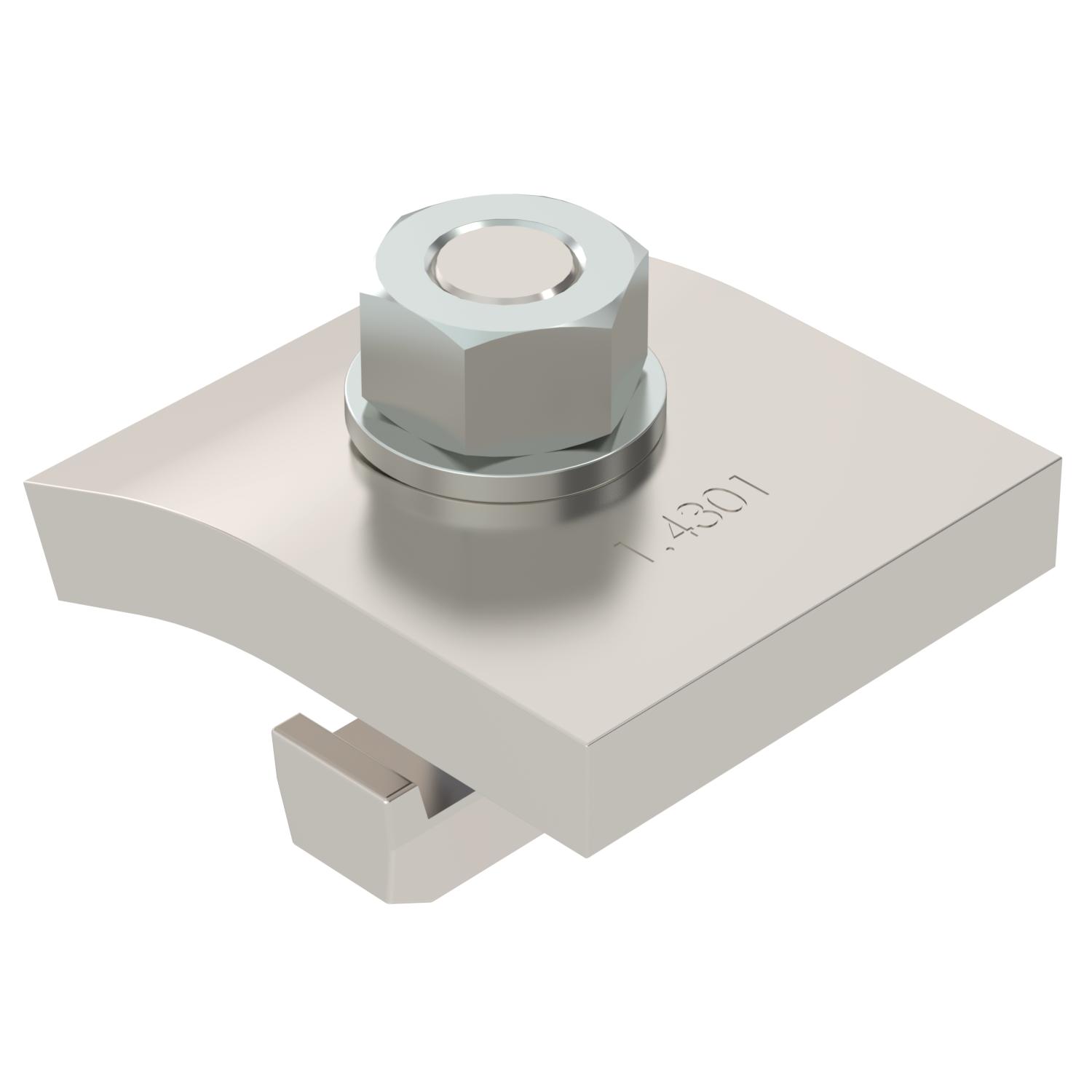

KWH 15 A2	15 mm	5.7 kN	6355323	Pair	5 Pair
KWH 20 A2	20 mm	5.7 kN	6355331	Pair	5 Pair
KWH 25 A2	25 mm	5.7 kN	6355358	Pair	5 Pair

Downloads

Data sheet KWH 25 A2 / 6355358 , 0.18MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity KWH 25 A2 / 6355358 , 0.11MB , pdf

REACH Declaration of conformity KWH 25 A2 / 6355358 , 0.12MB , pdf

Download

RoHS Declaration of conformity KWH 25 A2 / 6355358 , 0.13MB , pdf

Download

Mounting instructions Mounting instructions, clamp fastening , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.65MB , pdf

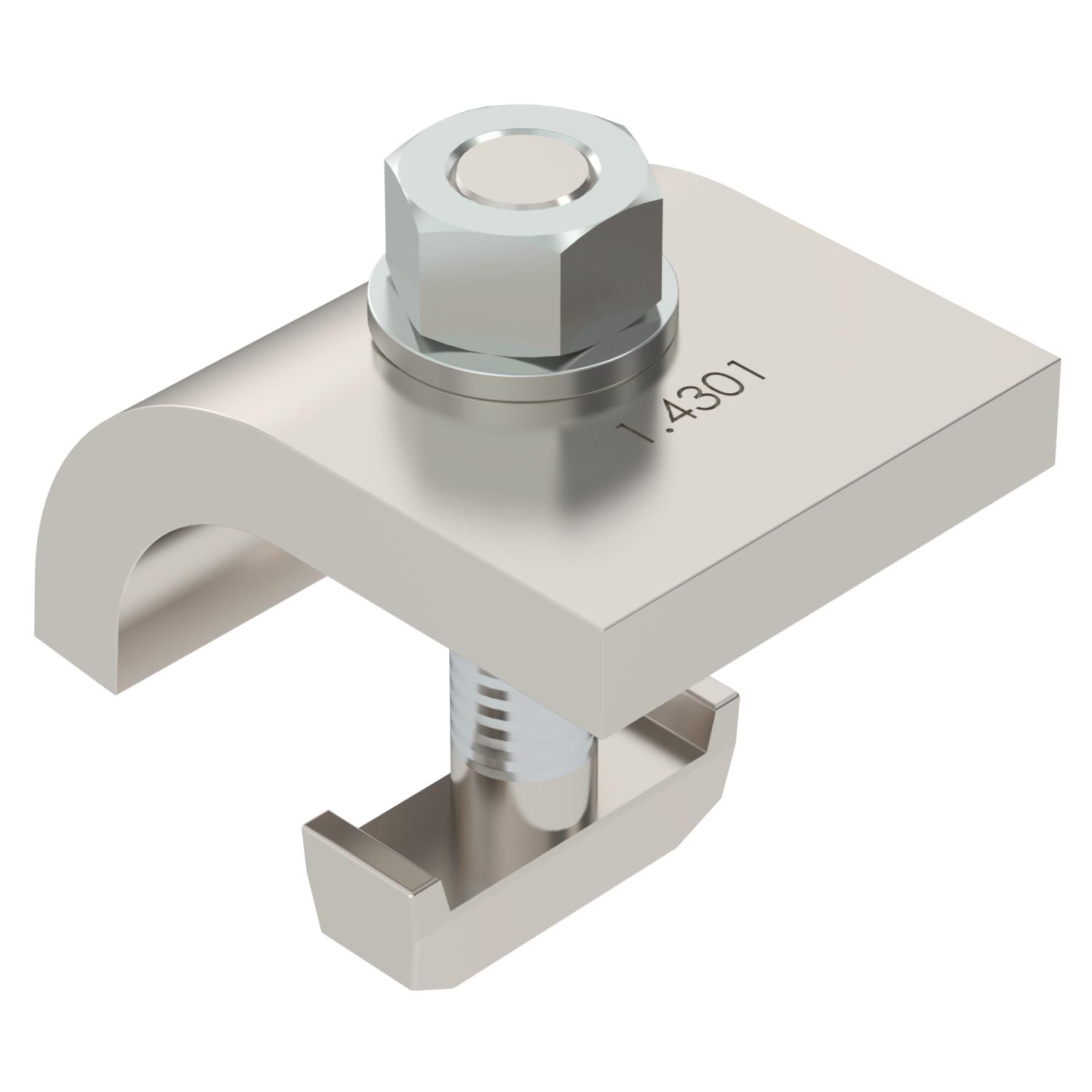

Product graphic KWH 25 A2 / 6355358, 49.62 kB, jpg

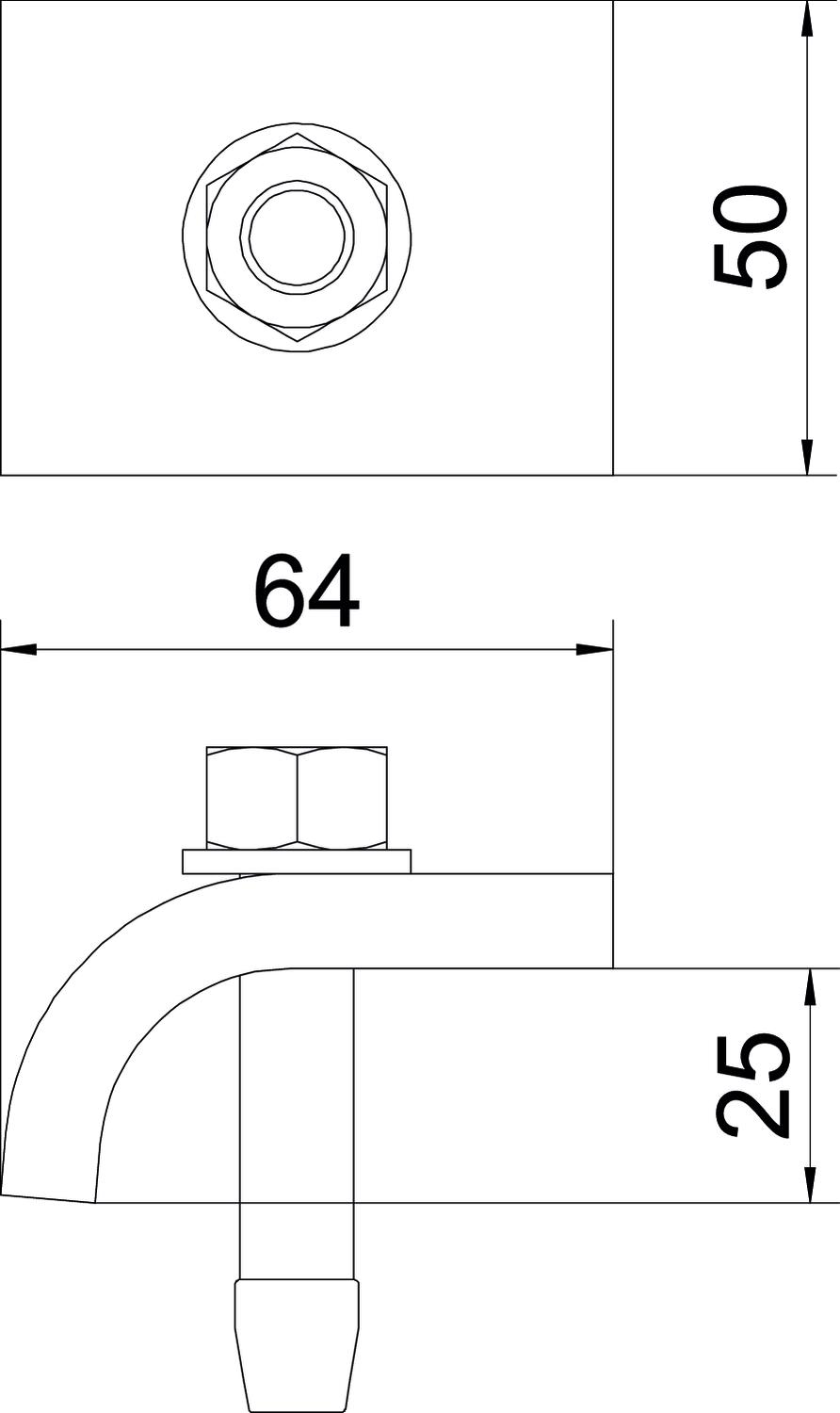

Scale drawing KWH 25 A2 / 6355358, 51.07 kB, jpg

KWH 25 A2 / 6355358
