Collision guard for industrial pole
Item no. 6290422 | EAN 4012196191505
- Product description
-

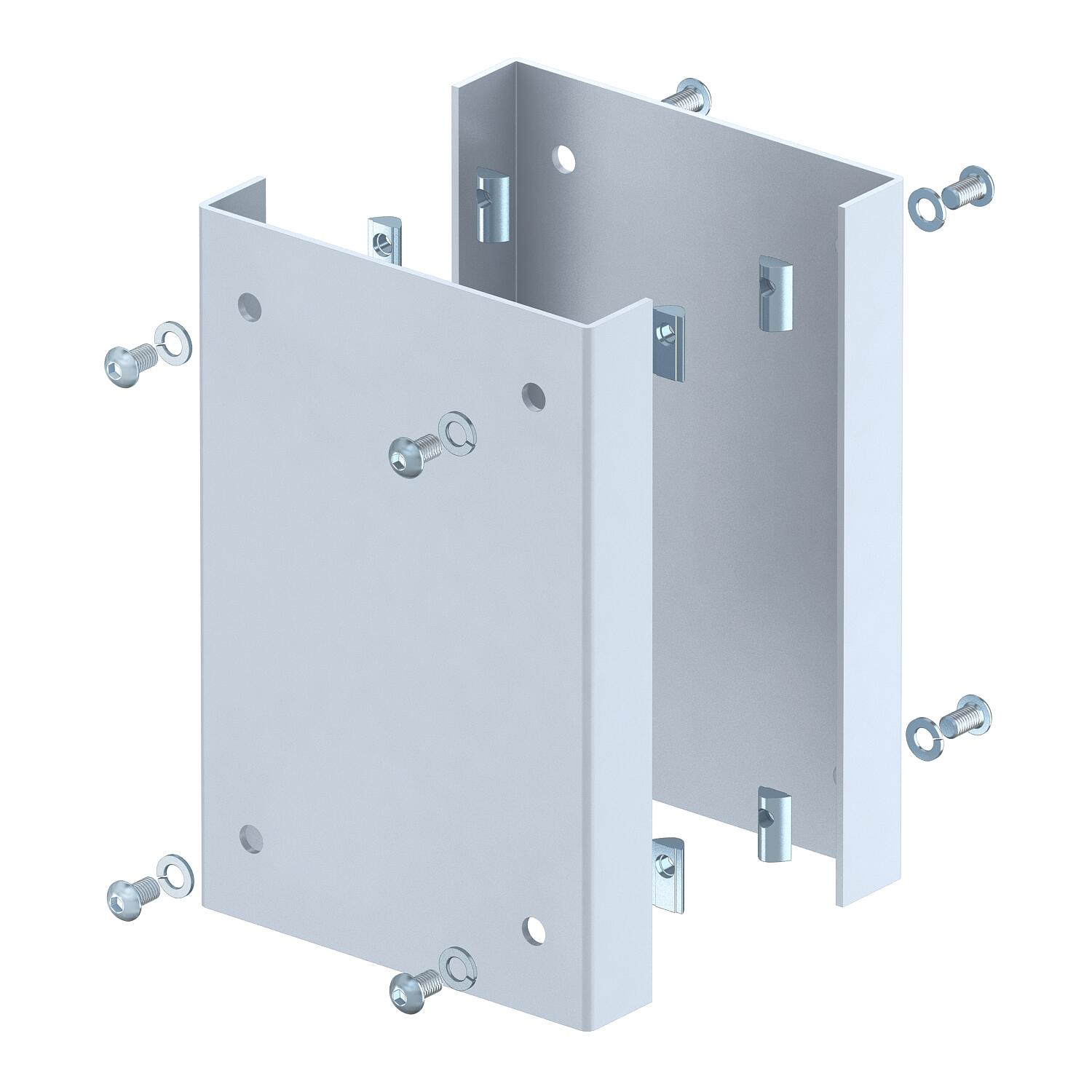

Product descriptionCollision guard as mechanical protection of the ISS industrial pole in the bottom area. The scope of delivery comprises of two U-shaped protection profiles made from 3 mm sheet steel and eight fastening screws with slot nuts to install on the pole profile.
-
- Technical data
-
Technical data
Colour White aluminium; RAL 9006 Dimension 250x166x33 Halogen-free yes Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Type of accessory Arrival protection Dimensions

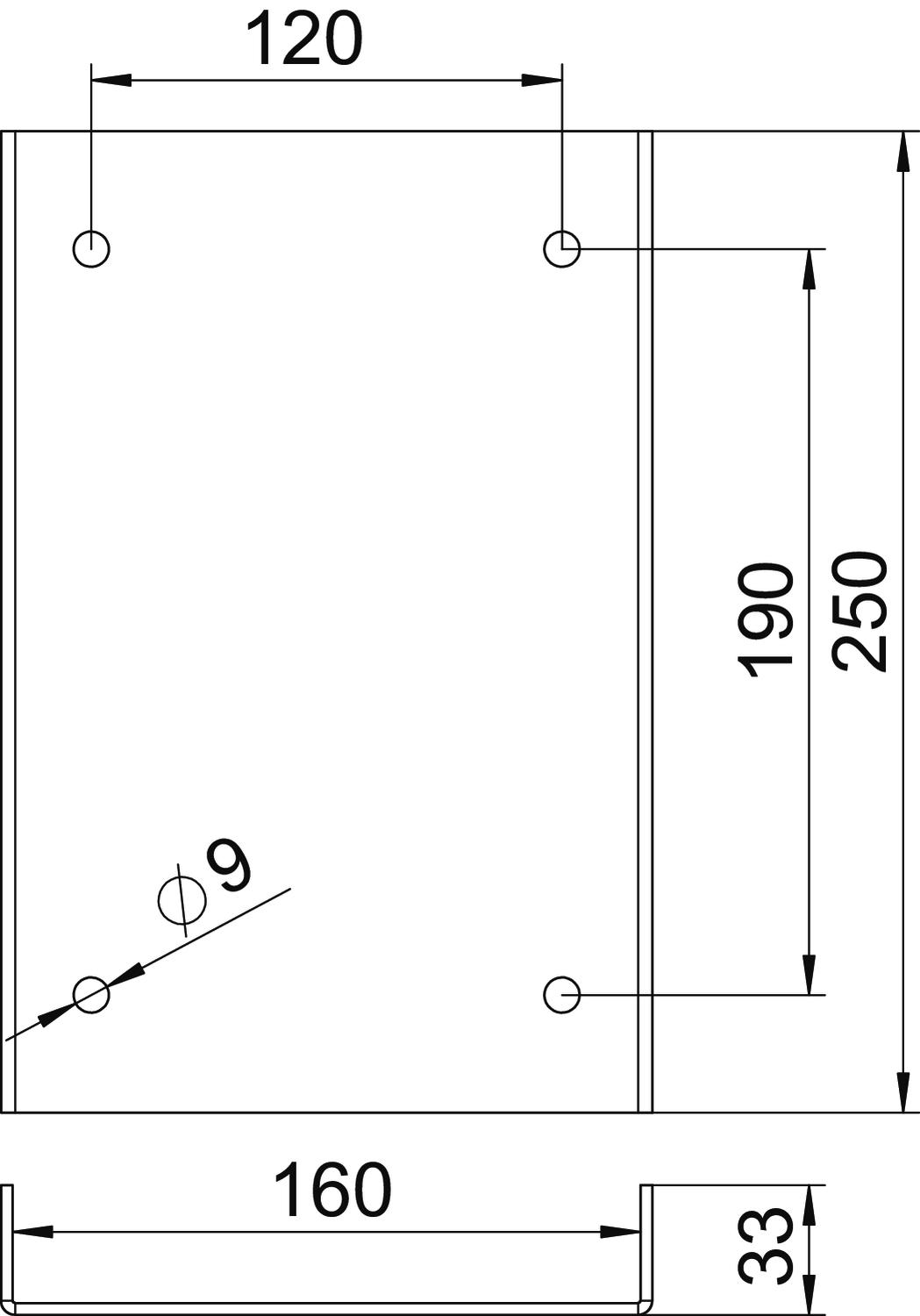

Height 33 mm Length 250 mm Width 166 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 7,7348 kg CO2e / 1 Piece CO₂ Footprint (GWP) 7,7348 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet ISS160160AS WA / 6290422 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ISS160160AS WA / 6290422 , 0.10MB , pdfUK Declaration of Conformity ISS160160AS WA / 6290422 , 0.09MB , pdfREACH Declaration of conformity ISS160160AS WA / 6290422 , 0.12MB , pdfRoHS Declaration of conformity ISS160160AS WA / 6290422 , 0.13MB , pdfLabel approval VDE symbol approval, service pole systems , 0.22MB , pdfMounting instructions Mounting instructions, ISS-I , 4.01MB , pdfMounting instructions Mounting instructions, ISS160160 bracket for ISS-I , 4.01MB , pdf
