Corner extension piece 160 A2
Item no. 6098868 | EAN 4012195696346
- Product description
-

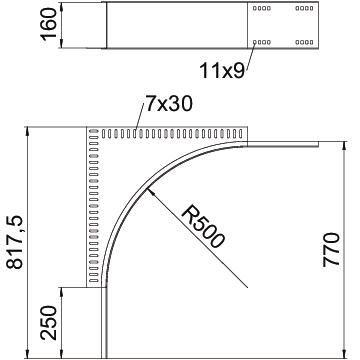

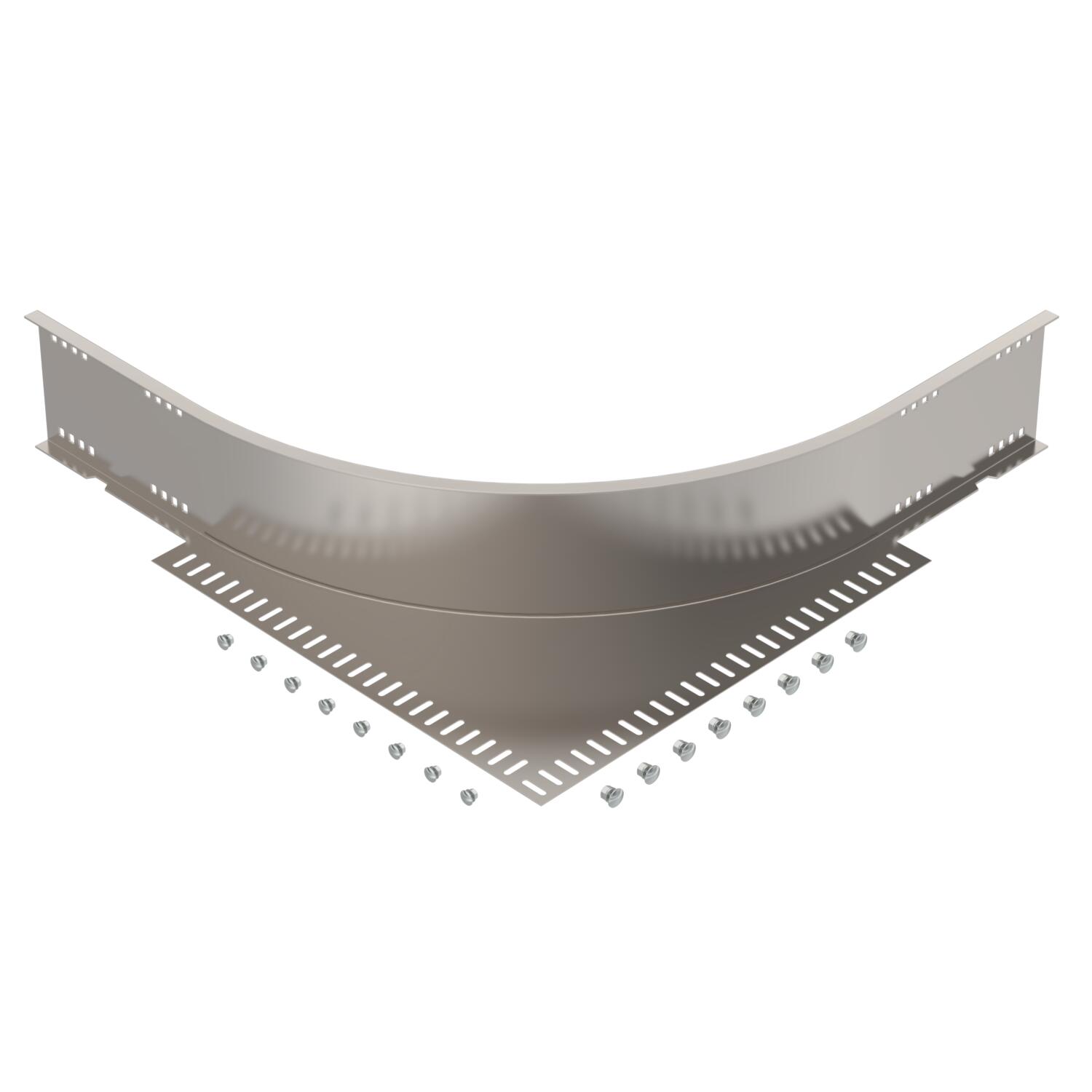

Product descriptionCorner extension piece for wide span cable trays and ladders with a side height of 160 mm. Including fastening material.
-
- Technical data
-
Technical data
Colour stainless steel Connector version Without connectors Dimension 160 Maintain electrical functions no Material Stainless steel 1.4301 ROHS-conformant yes Rustproof steel, pickled no Surface Bright, treated Type of connector, cable support system Screwed Dimensions
Dimension h 160 mm Height 160 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 36,0516 kg CO2e / 1 Piece CO₂ Footprint (GWP) 36,0516 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WEAS 160 A2 / 6098868 , 0.16MB , pdfEU declaration of conformity WEAS 160 A2 / 6098868 , 0.11MB , pdfUK Declaration of Conformity WEAS 160 A2 / 6098868 , 0.09MB , pdfREACH Declaration of conformity WEAS 160 A2 / 6098868 , 0.12MB , pdfRoHS Declaration of conformity WEAS 160 A2 / 6098868 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
