Note: This article is discontinued. You can find the current article here: 6036994 / Cover, 90° bend A4
Cover for 90° Magic bend A4 400 | 1.25
morepic-1 morepic-2 video-1

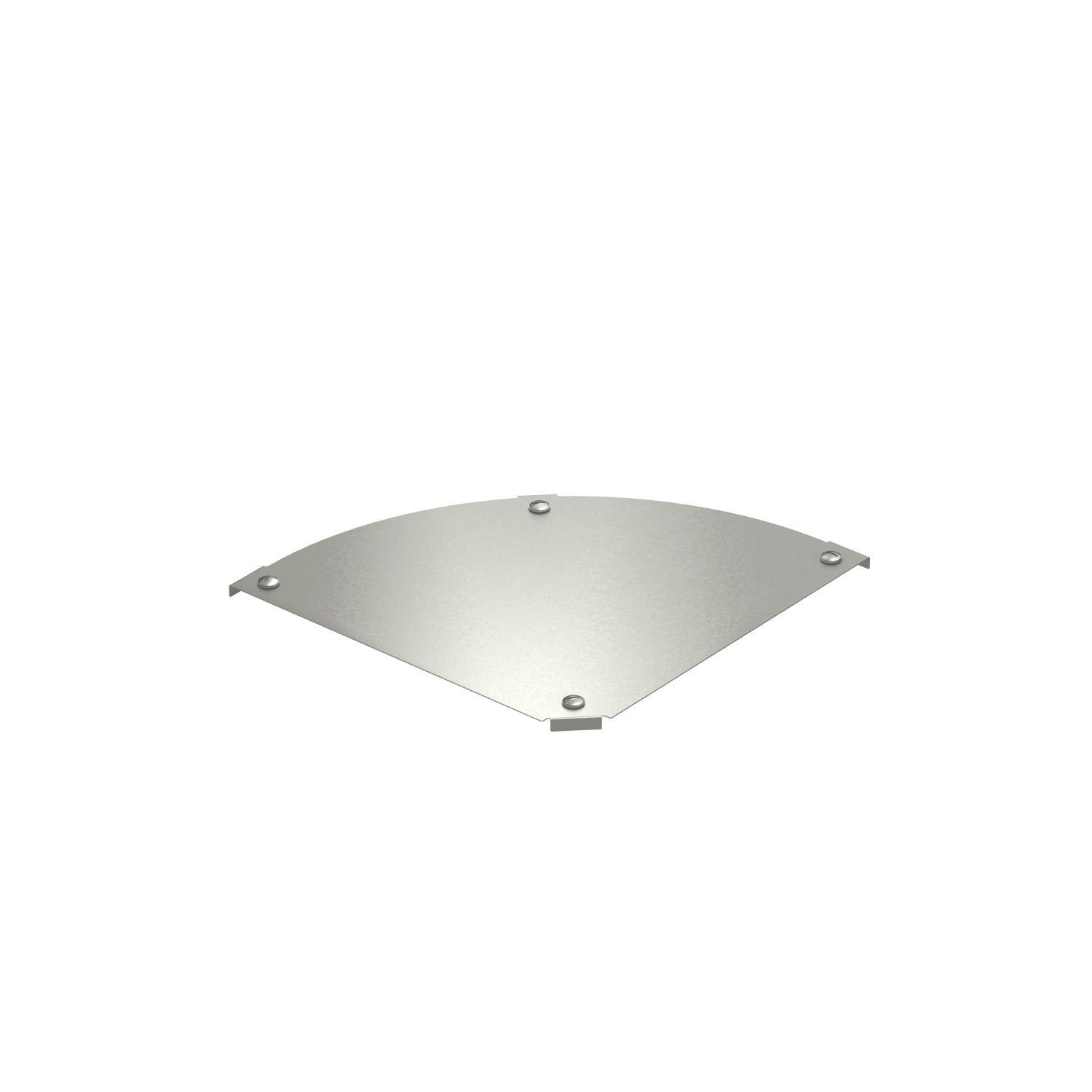

Cover for 90° Magic bend A4

Item no. 7138598 | EAN 4012195929376

1.25 mm
Product description
Product description
Cover for 90° bend with pre-mounted turn buckles.

The cover can be used with fittings of all side heights.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Dimension B=400mm
Fastening type Sash lock
Hinged no
Maintain electrical functions no
Material Stainless steel 1.4571
Plate thickness 1,25 mm
ROHS-conformant yes
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray no
Surface Bright, treated

Dimensions

Dimension B 400 mm
Width 400 mm
All types

All types

Types Width Plate thickness Item no. Quantity SSU
DFBM 90 100 A4 100 mm 1.25 mm 7138590
1 piece
DFBM 90 200 A4 200 mm 1.25 mm 7138594
1 piece
DFBM 90 300 A4 300 mm 1.25 mm 7138596
1 piece
DFBM 90 400 A4 400 mm 1.25 mm 7138598
1 piece
Downloads

Download

Download
Download

EU declaration of conformity DFBM 90 400 A4 / 7138598 , 0.10MB , pdf
Download
REACH Declaration of conformity DFBM 90 400 A4 / 7138598 , 0.12MB , pdf
Download
RoHS Declaration of conformity DFBM 90 400 A4 / 7138598 , 0.13MB , pdf
Download

Download

DFBM 90 400 A4 / 7138598
