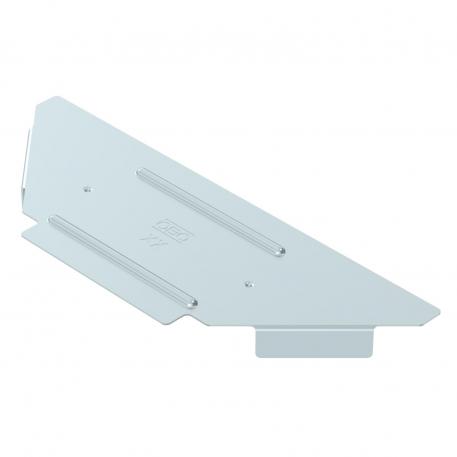

Cover for add-on tee FS

Item no. 6042401 | EAN 4012197406677

Item no. / Types

Width

Plate thickness

Product description

Product description

Cover for add-on tee fitting for lockable and screw-on cable trays in indoor areas, to protect cables against damage and soiling. Fastening through attachment of the section cover. Suitable for all side heights.

The cover can be used with fittings of all side heights.

Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate	0,3001 kg CO2e / 1 Piece
Colour	zinc
Dimension	B100mm
Dimension B	100 mm
Fastening type	On top
Material	Steel
Material thickness	0,75 mm
Permitted temperature range, max.	120 °C

Permitted temperature range, min.	-20 °C
Plate thickness	0,75 mm
Rustproof steel, pickled	no
Suitable for cable ladder	no
Suitable for cable tray	yes
Surface	Strip galvanized
Wide-span version	no
Width	100 mm

All types

All types

Types	Width	Plate thickness	Item no.	Quantity	SSU
RAAD 100 FS	100 mm	0.75 mm	6042401	piece	1 piece
RAAD 150 FS	150 mm	0.75 mm	6042403	piece	1 piece
RAAD 200 FS	200 mm	0.75 mm	6042405	piece	1 piece
RAAD 300 FS	300 mm	0.75 mm	6042407	piece	1 piece
RAAD 400 FS	400 mm	1 mm	6042409	piece	1 piece
RAAD 500 FS	500 mm	1 mm	6042411	piece	1 piece
RAAD 600 FS	600 mm	1 mm	6042413	piece	1 piece
