Deskbox with fastening clamp, 4 protective contact sockets, USB Charger
Item no. 6116764 | EAN 4012197333225
- Product description
-

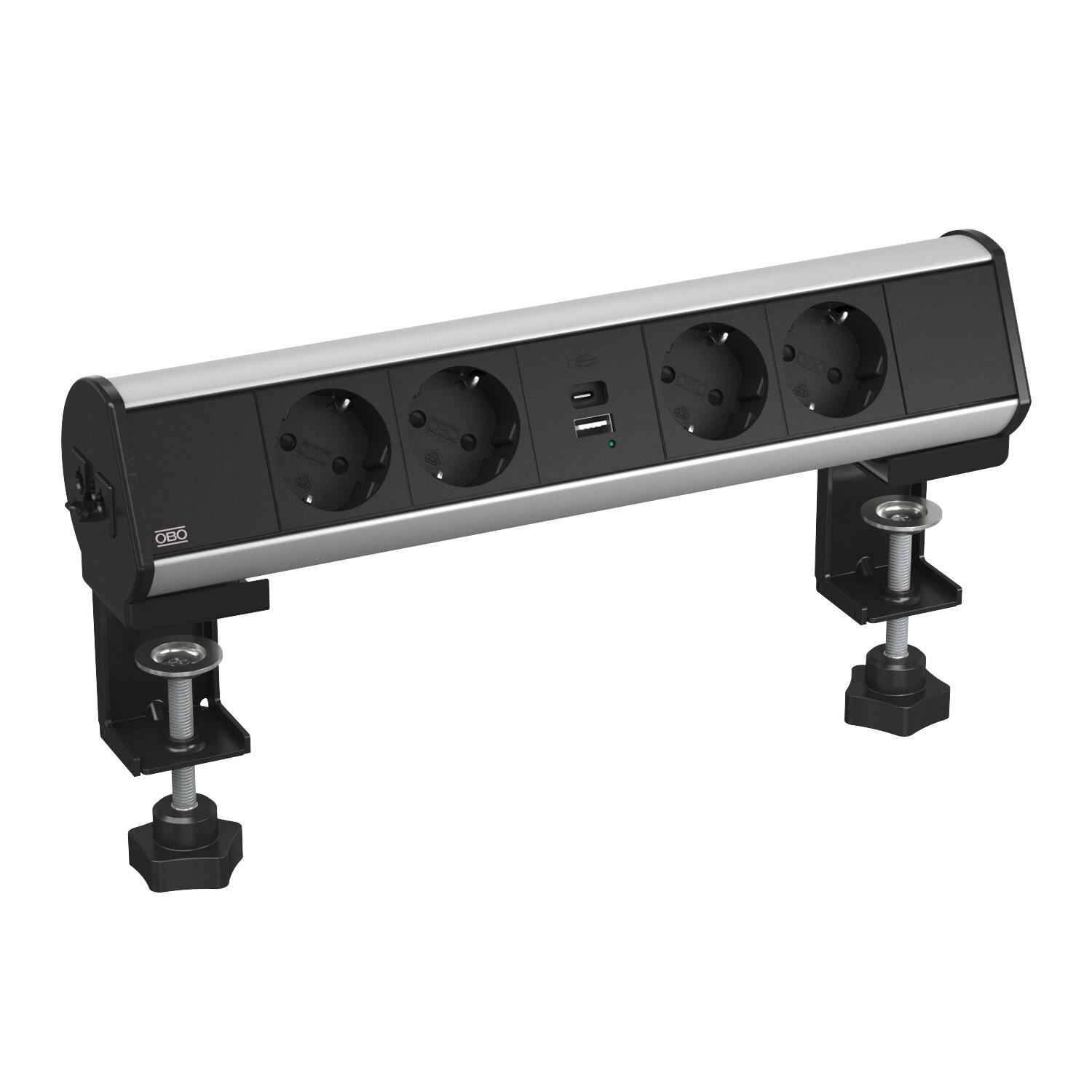

Product descriptionReady-for-connection Deskbox DBL for the direct supply of workstations with power. With a Wieland GST18® connector and cable outlet at the left side of the profile. Toolless mounting with 2 fastening clamps for tabletop thicknesses of 8 to 40 mm and 40 to 70 mm. The Deskbox is equipped with 4 black protective contact sockets in 33° connection direction and a 18W USB A+C Charger.
-
- Technical data
-
CO2 footprint (Product Carbon Footprint)

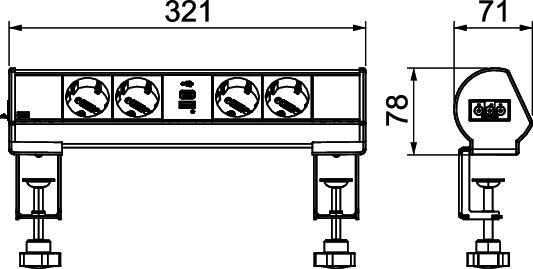

CO2 Footprint (GWP) Cradle-to-Gate 12,0545 kg CO2e / 1 Piece Colour aluminium CO₂ Footprint (GWP) 12,0545 kg CO₂e Declared Unit (LCA) Units Determination date of CO2 value 2025-05-27T00:00:00.000+0200 Dimension 325x71x78 Extendable no Foldable no Height 59 mm Length 145 mm Material Aluminium Surface Anodised - All types
- Downloads
-
Data sheet DBL-1B D4S 1C / 6116764 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity DBL-1B D4S 1C / 6116764 , 0.13MB , pdfRoHS Declaration of conformity DBL-1B D4S 1C / 6116764 , 0.13MB , pdfMounting instructions Multimedia support/Data technology support MTG.../DTG.... , 0.29MB , pdfMounting instructions Deskbox DBL with sockets , 0.56MB , pdf
