Note: This article is discontinued.
You can find the current article here: 2003702 / UP Flush-mounted device connection box 66

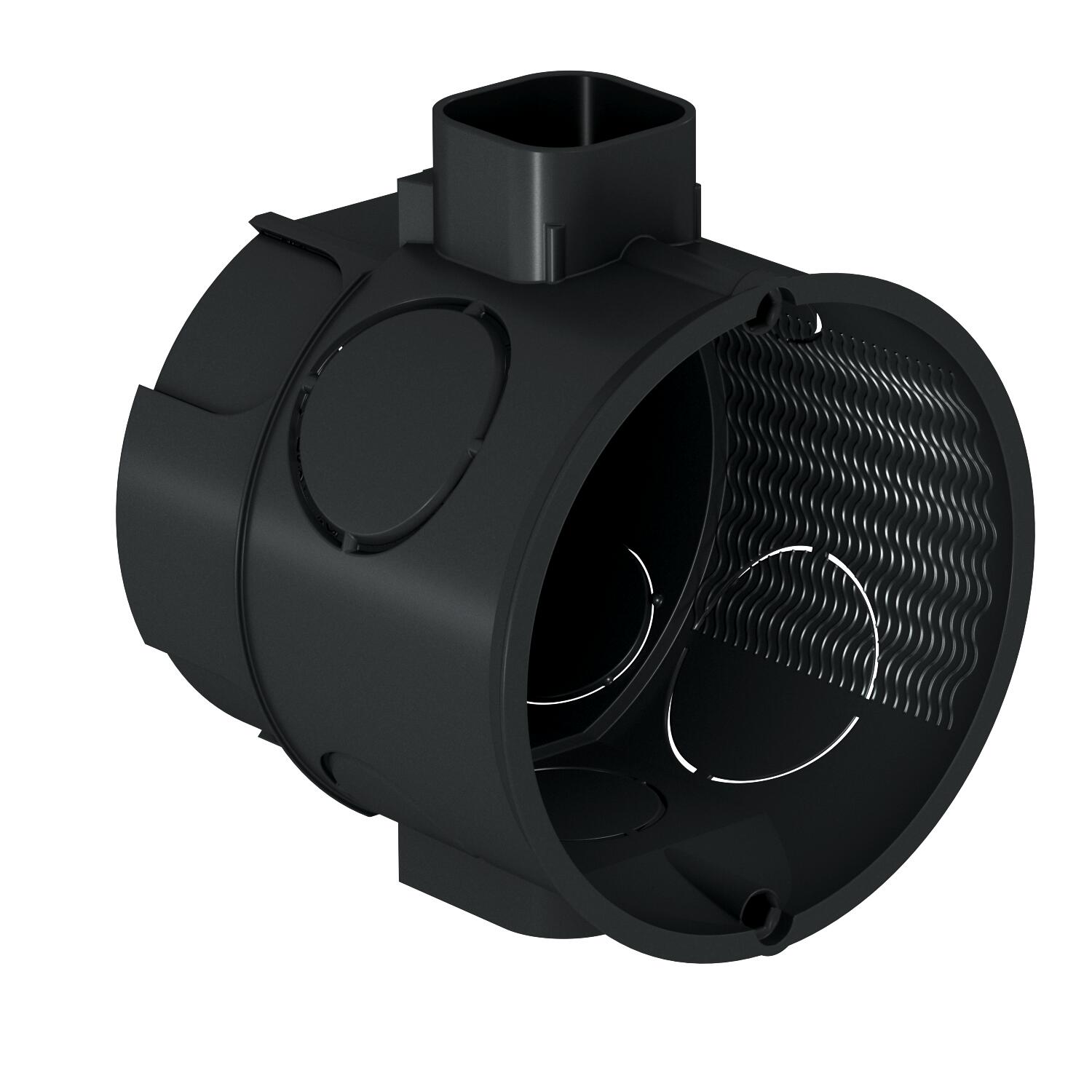

Device/connection socket - UG 60 255
Item no. 2004352 | EAN 4012195290223
- Product description
-
Product descriptionThe ideal system for use in any kind of masonry. The products were developed according to the state of the art and are perfectly matched. They can fulfil any practical requirements, thus allowing perfect installations in record time.
The system comprises a comprehensive range of accessories and can be used for any application.
-
- Technical data
-
Technical data
Accessory screw clearance 60 mm CO2 Footprint (GWP) Cradle-to-Gate 0,0591 kg CO₂e / 1 Piece Colour Black Cover Without Device fixing Screw or spread Dimension Ø60mm, H62mm Equipment Without Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Floor height, min. 64 mm Height 60 mm Material Polystyrene No. of entries 7 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 1,5 mm² Protection rating IP20 Rated voltage 400 V Sealable no Shape Round Support Square support Type of entry Break-out openings for cables and pipes Ø 20 mm and Ø 25 mm With bolts no - All types
- Downloads
-
Data sheet UG 60 255 / 2004352 , 0.22MB , pdfREACH Declaration of conformity UG 60 255 / 2004352 , 0.12MB , pdfRoHS Declaration of conformity UG 60 255 / 2004352 , 0.13MB , pdfLabel approval VDE symbol approval, UG 60 VDff , 0.12MB , pdfLabel approval VDE symbol approval, UG 60... , 0.12MB , pdf
