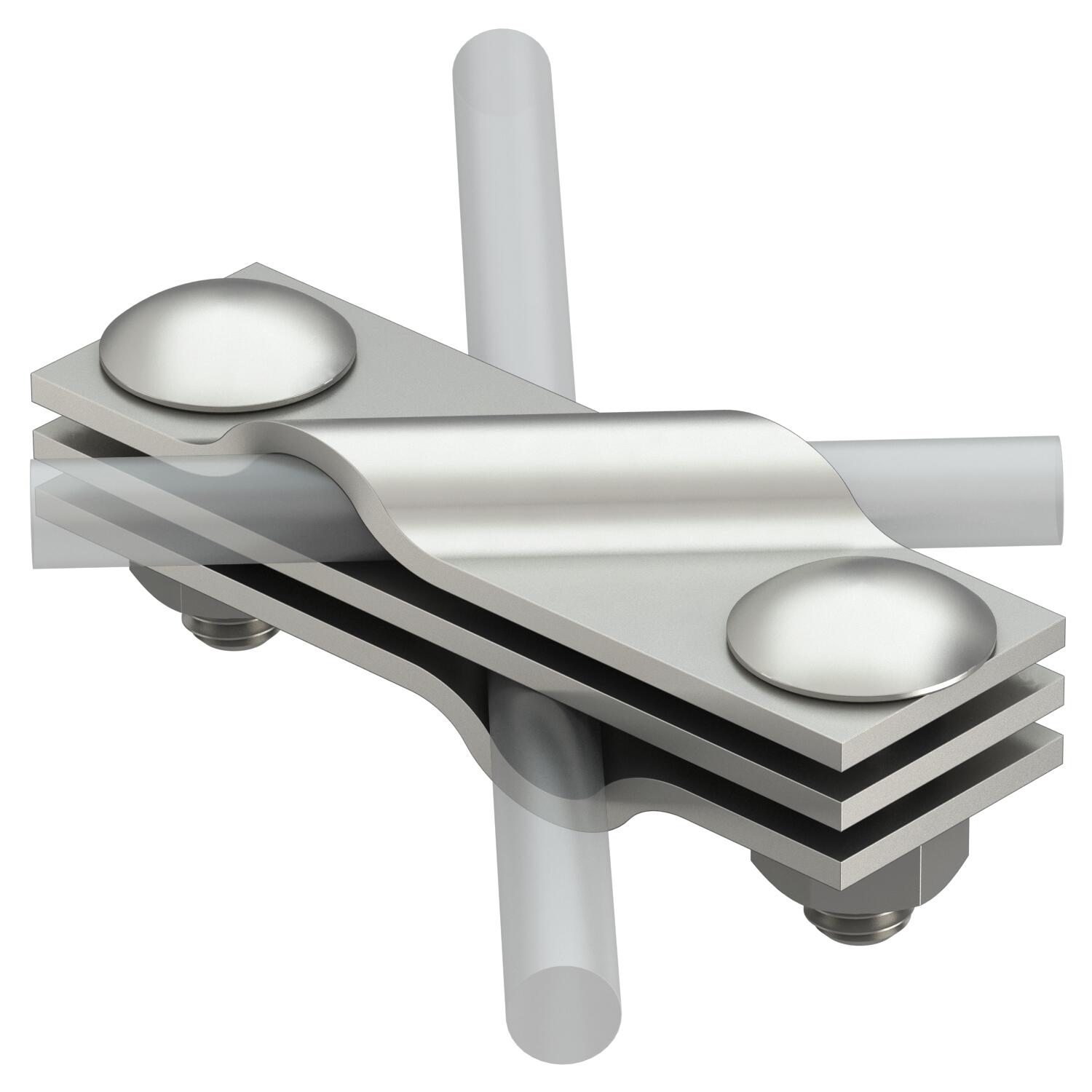

Diagonal connector with intermediate plate, for A2 round conductor
Item no. 5001612 | EAN 4012195721123
- Product description
-
Product description• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• To connect round conductors 8‒10 mm
• Mounted with 2 truss-head bolts M10 x 30 and 2 hexagonal bolts M10
• With adapter plate
-
- Technical data
-
Technical data
Clamping range, max. 10 mm Clamping range, min. 8 mm Dimension RD 8 Fit Rd 8-10 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Stainless steel 1.4301 Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Connectors Type of fastening screw Gutter bolt Dimensions

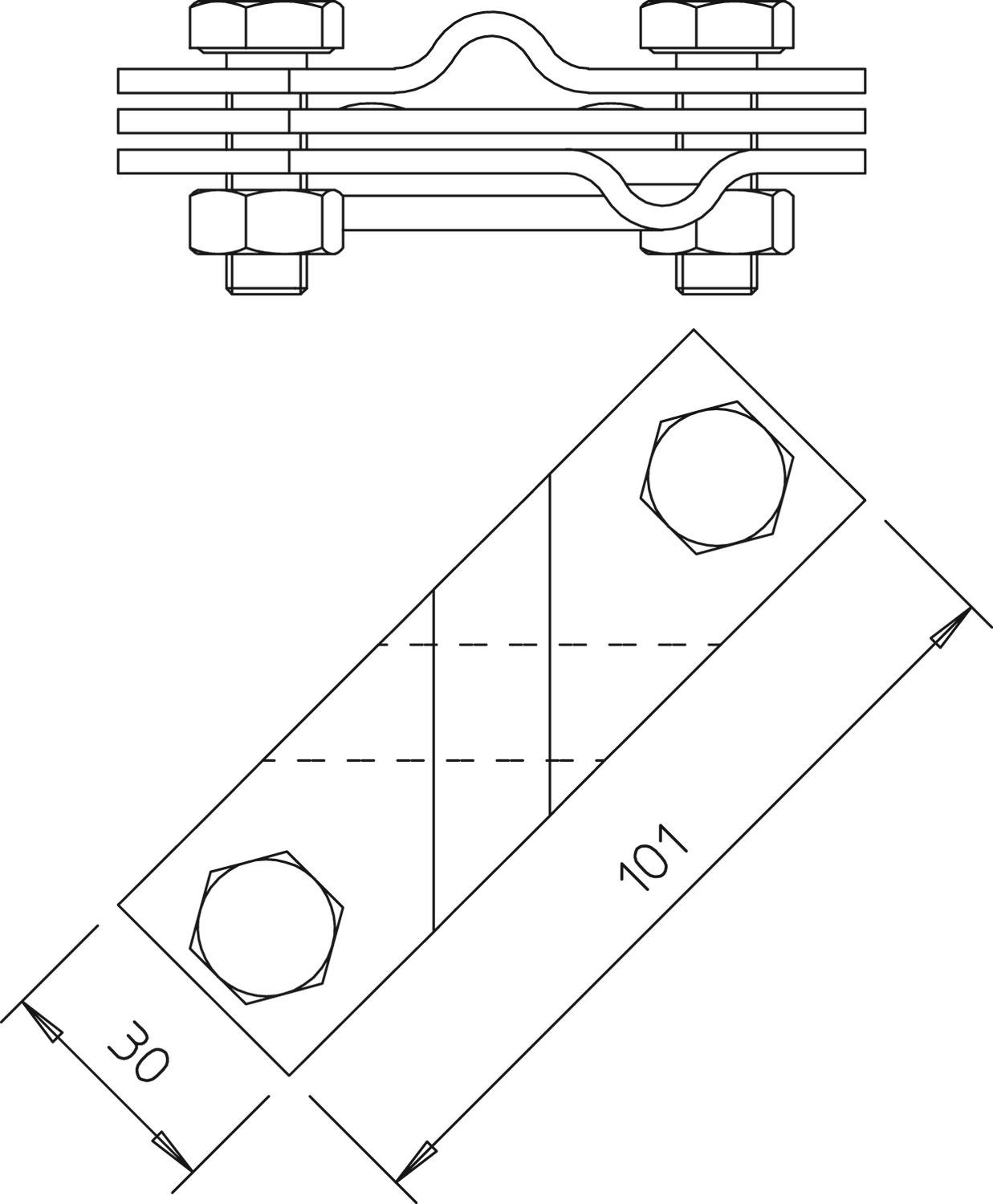

Dimension A 101 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 1,52 kg CO2e / 1 Piece CO₂ Footprint (GWP) 1,52 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 2760 8 / 5001612 , 0.18MB , pdfEU declaration of conformity 2760 8 / 5001612 , 0.06MB , pdfREACH Declaration of conformity 2760 8 / 5001612 , 0.12MB , pdfRoHS Declaration of conformity 2760 8 / 5001612 , 0.13MB , pdf
