End piece, trunking type WDK 30030

Item no. / Types

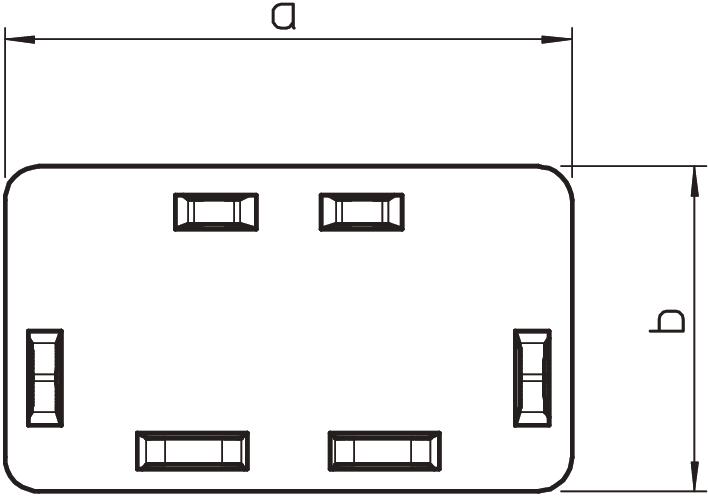

Dimension a	30 mm

Dimension b	30 mm

Dimension H	30 mm

Colour

Product description

Product description

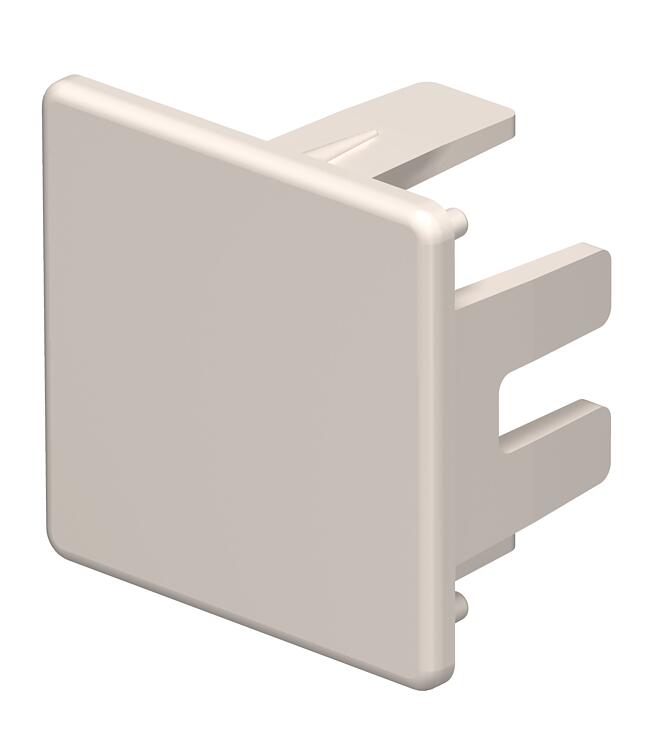

End piece to close the WDK trunking.
The end pieces are pushed onto the WDK trunking and are fixed on the connector.

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Dimension	30x30mm
Fastening type	Lockable
Halogen-free	no
Maintain electrical functions	no
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Version for	Left/right

CO2 Footprint (GWP) Cradle-to-Gate	0,0241 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	0,0241 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HE30030GR	30 mm	30 mm	30 mm	Stone grey; RAL 7030	6158765	piece	10 piece
WDK HE30030CW	30 mm	30 mm	30 mm	Cream; RAL 9001	6162576	piece	10 piece
WDK HE30030LGR	30 mm	30 mm	30 mm	Light grey; RAL 7035	6183697	piece	10 piece
WDK HE30030RW	30 mm	30 mm	30 mm	Pure white; RAL 9010	6193188	piece	10 piece
