End piece, trunking type WDKH 20020 19 | 18 | | Light grey; RAL 7035
morepic-1 morepic-2

End piece, trunking type WDKH 20020

Item no. 6175928 | EAN 4012195814597

19 mm
18 mm
Product description
Product description
End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 20x20mm
Fastening type Lockable
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right

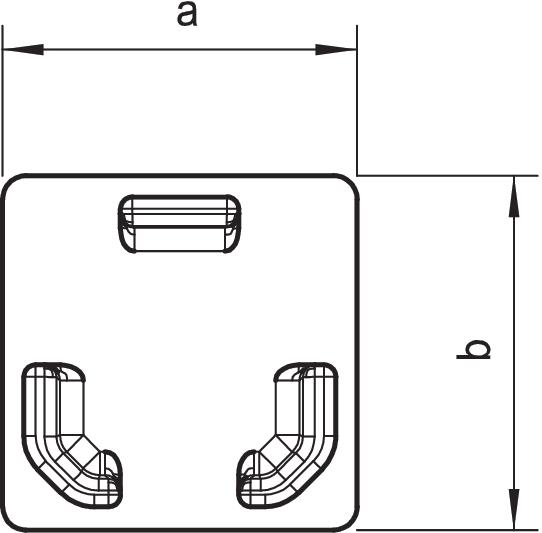

Dimensions

Dimension a 19 mm
Dimension b 18 mm
Height 17 mm
Length 11,5 mm
Width 17 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,0089 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,0089 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E20020RW 19 mm 18 mm Pure white; RAL 9010 6175550
10 piece
WDKH-E20020LGR 19 mm 18 mm Light grey; RAL 7035 6175928
10 piece
Downloads

Download

Download

EU declaration of conformity WDKH-E20020LGR / 6175928 , 0.11MB , pdf
Download
UK Declaration of Conformity WDKH-E20020LGR / 6175928 , 0.09MB , pdf
Download
REACH Declaration of conformity WDKH-E20020LGR / 6175928 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDKH-E20020LGR / 6175928 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
