End piece, trunking type WDKH 60110 110 | 60 | | Light grey; RAL 7035
morepic-1 morepic-2

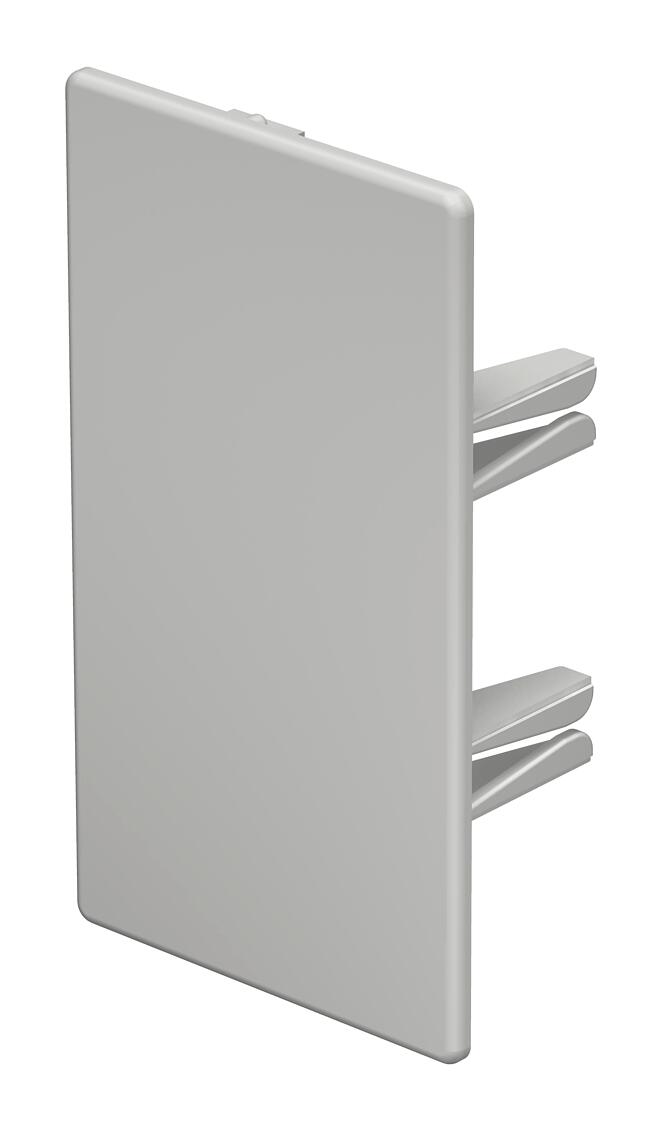

End piece, trunking type WDKH 60110

Item no. 6175944 | EAN 4012195814863

110 mm
60 mm
Product description
Product description
End piece for closing the WDK-H trunking.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 60x110mm
Fastening type Lockable
Halogen-free yes
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Version for Left/right

Dimensions

Dimension a 110 mm
Dimension b 60 mm
Height 60 mm
Length 27,5 mm
Width 110 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,174 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,174 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-E60110RW 110 mm 60 mm Pure white; RAL 9010 6175566
10 piece
WDKH-E60110LGR 110 mm 60 mm Light grey; RAL 7035 6175944
10 piece
Downloads

Download

Download

EU declaration of conformity WDKH-E60110LGR / 6175944 , 0.10MB , pdf
Download
UK Declaration of Conformity WDKH-E60110LGR / 6175944 , 0.09MB , pdf
Download
REACH Declaration of conformity WDKH-E60110LGR / 6175944 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDKH-E60110LGR / 6175944 , 0.12MB , pdf
Download

Download

No invitation to tender text is available for this product.
