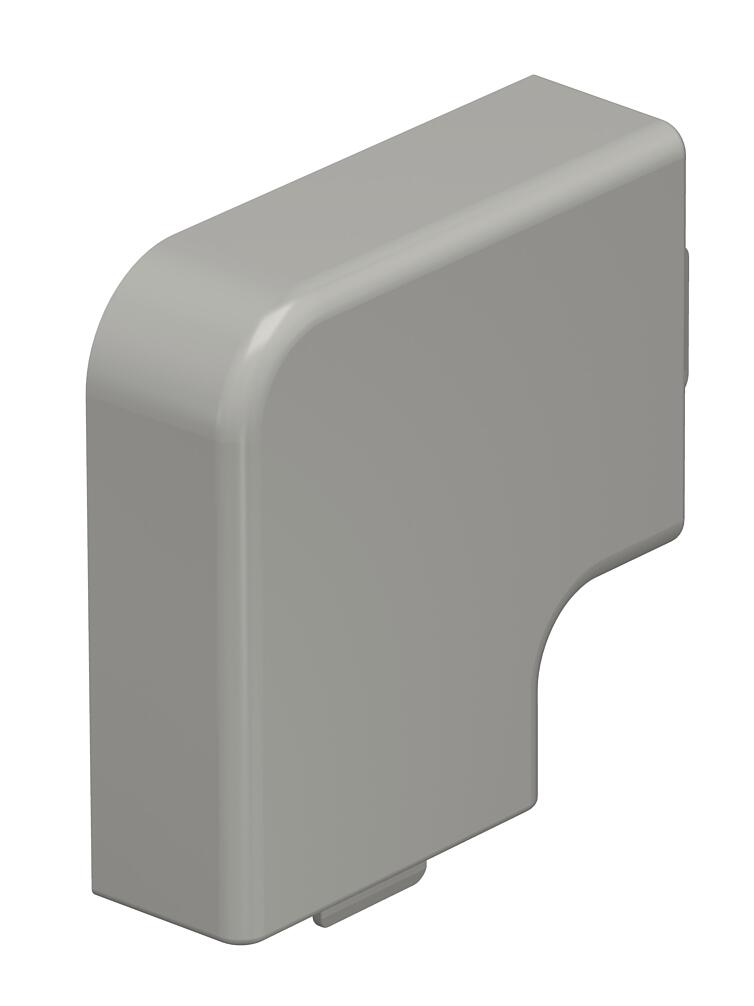

Flat angle cover, for trunking type WDK 15040
Item no. 6158609 | EAN 4012196582198
- Product description
-
Product descriptionFlat angle hood for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Stone grey; RAL 7030 Dimension 15x40mm Fastening type Lockable for duct dimension 15 x 40 Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 15 mm Version for Hood fitting Dimensions
Dimension a 63 mm Dimension H 40 mm Height 15 mm Length 63 mm Width 40 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0431 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0431 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HF15040GR / 6158609 , 0.18MB , pdfSafety data sheet WDK HF15040GR / 6158609 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HF15040GR / 6158609 , 0.11MB , pdfUK Declaration of Conformity WDK HF15040GR / 6158609 , 0.09MB , pdfREACH Declaration of conformity WDK HF15040GR / 6158609 , 0.12MB , pdfRoHS Declaration of conformity WDK HF15040GR / 6158609 , 0.13MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
