Flat angle, for cable trunking type LKM 40060
Item no. 6247504 | EAN 4012196312313
- Product description
-
Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour zinc Dimension 40x60mm Duct height, min. 44 mm Fastening type Base perforation for duct dimension 40 x 60 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Self-extinguishing no Surface Strip galvanised Trunking depth 44 mm Version for Base and cover Dimensions

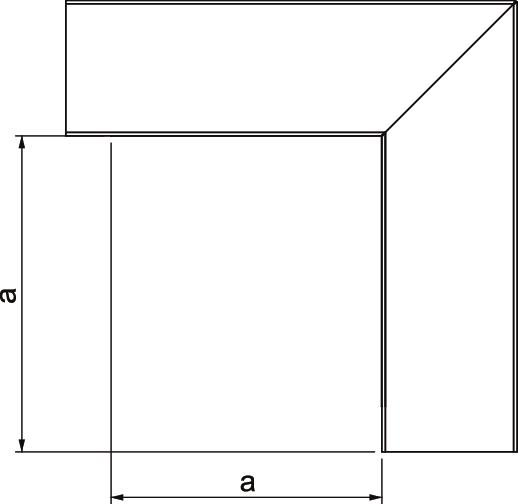

Dimension a 120 mm Height 44 mm Length 200 mm Width 60 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,3798 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,3798 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
