Flat angle, for cable trunking type LKM 60150
Item no. 6249515 | EAN 4012196314775
- Product description
-
Product descriptionFlat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 60x150mm Duct height, min. 64 mm Fastening type Base perforation for duct dimension 60 x 150 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Self-extinguishing no Surface Strip galvanised / plastic coated Trunking depth 64 mm Version for Base and cover Dimensions

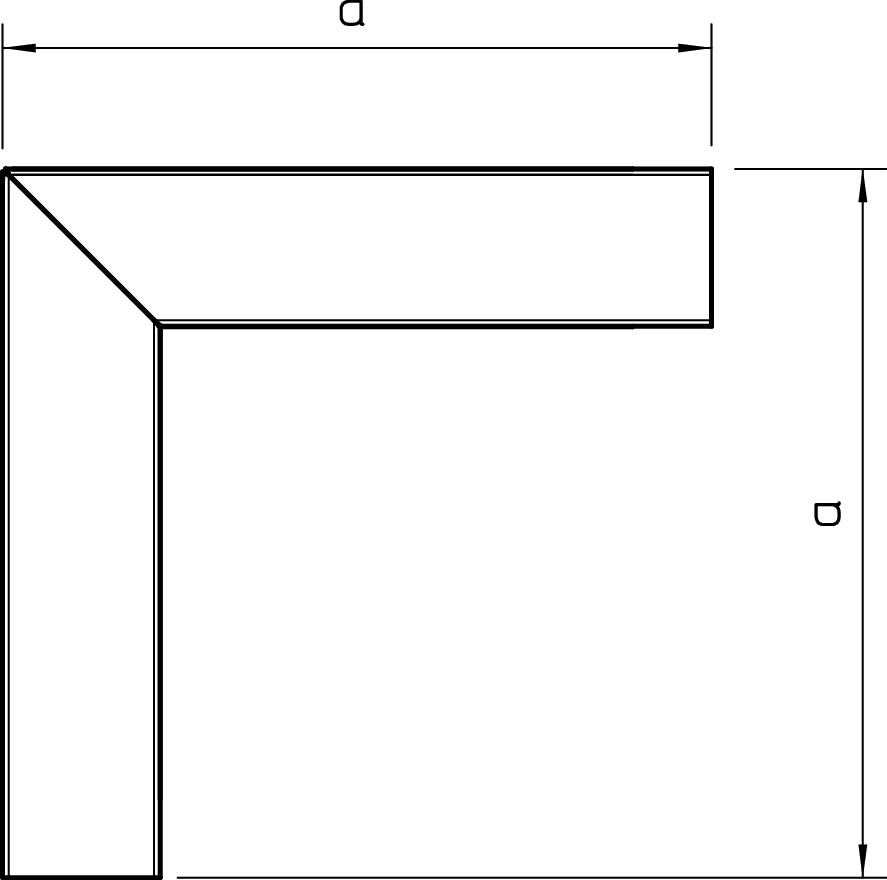

Dimension a 120 mm Height 64 mm Length 290 mm Width 150 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 4,9335 kg CO2e / 1 Piece CO₂ Footprint (GWP) 4,9335 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
