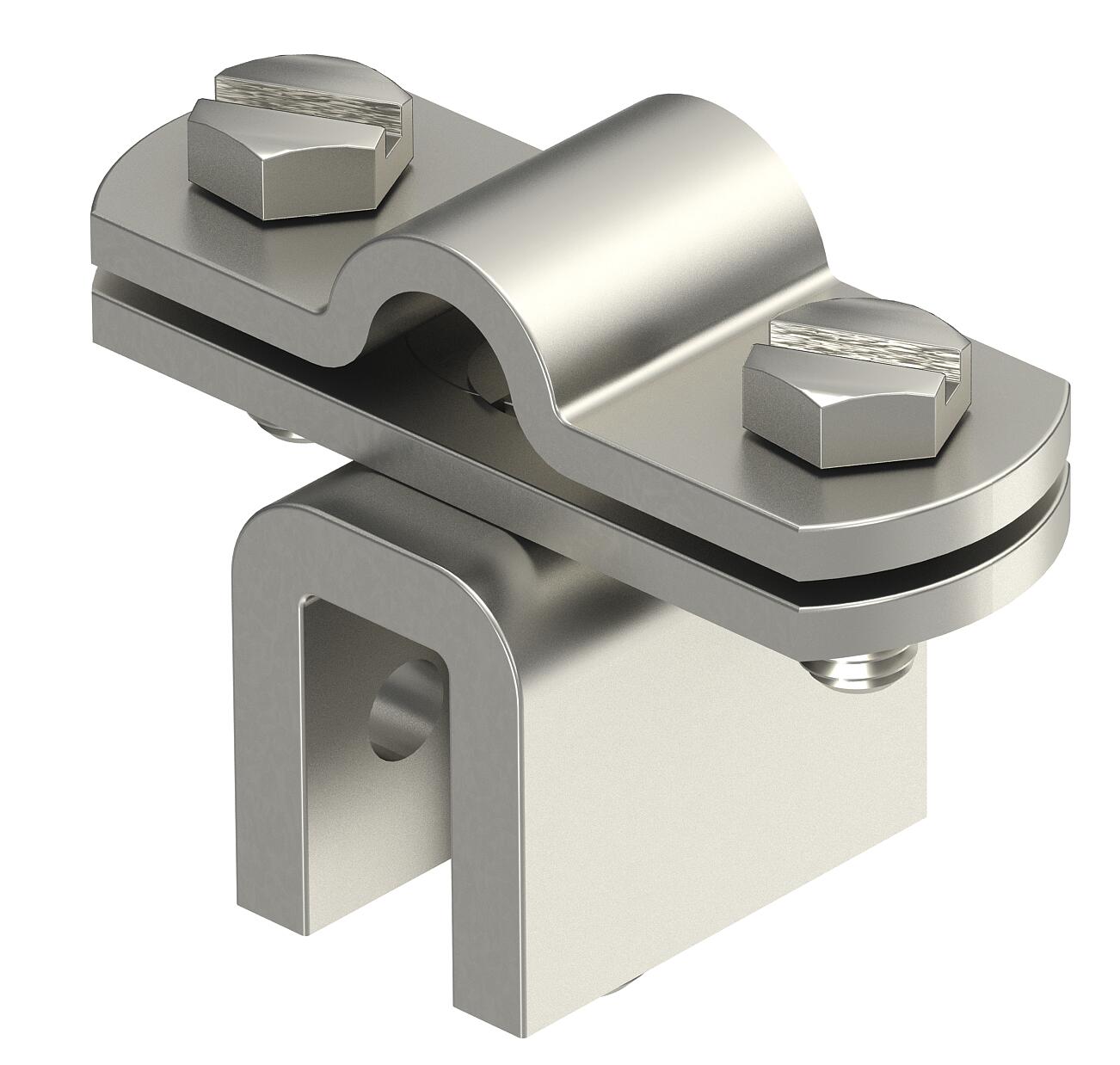

Folding clamp Rd 8-10 up to 10 mm plate thickness A2
Item no. 5317208 | EAN 4012195893158
- Product description
-
Product description• Metal thickness to 10 mm

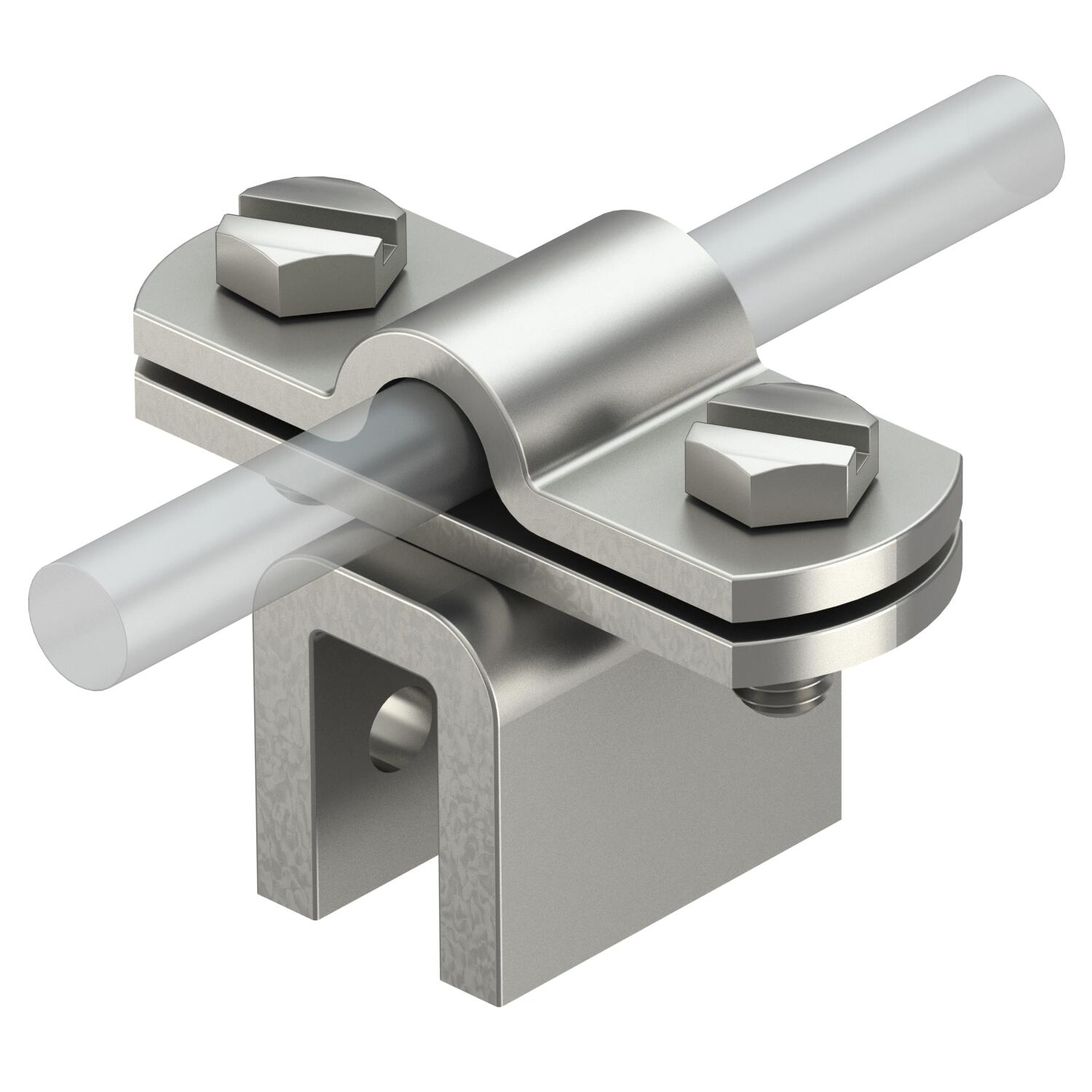

• For conductor routing transverse and in parallel to the plate
• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
-
- Technical data
-
Technical data
Clamping range, max. 10 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Stainless steel 1.4301 Type of connector Folding clamp Type of fastening screw Hexagonal bolt Dimensions
Height 28 mm Length 56 mm Width 30 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,7134 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,7134 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
