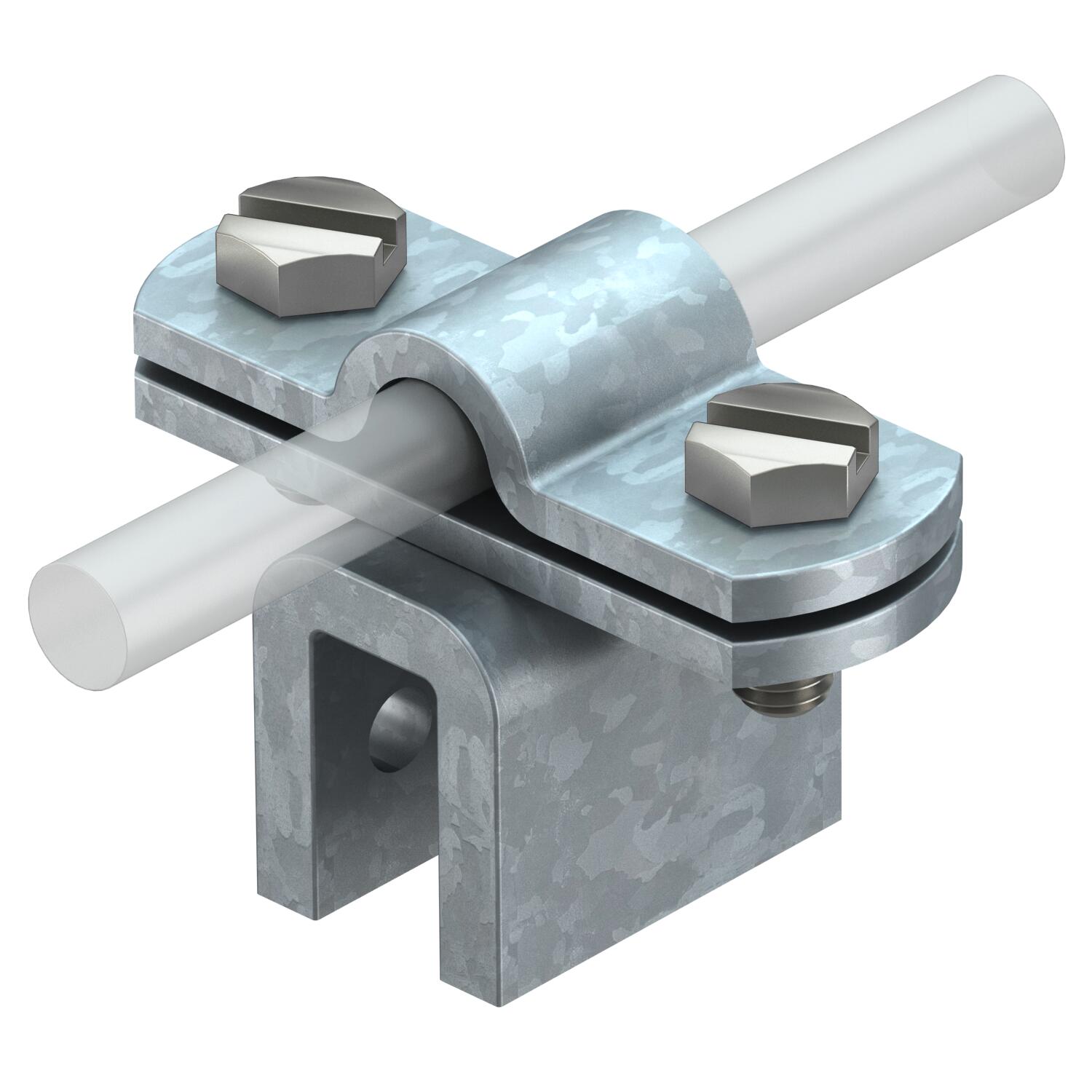

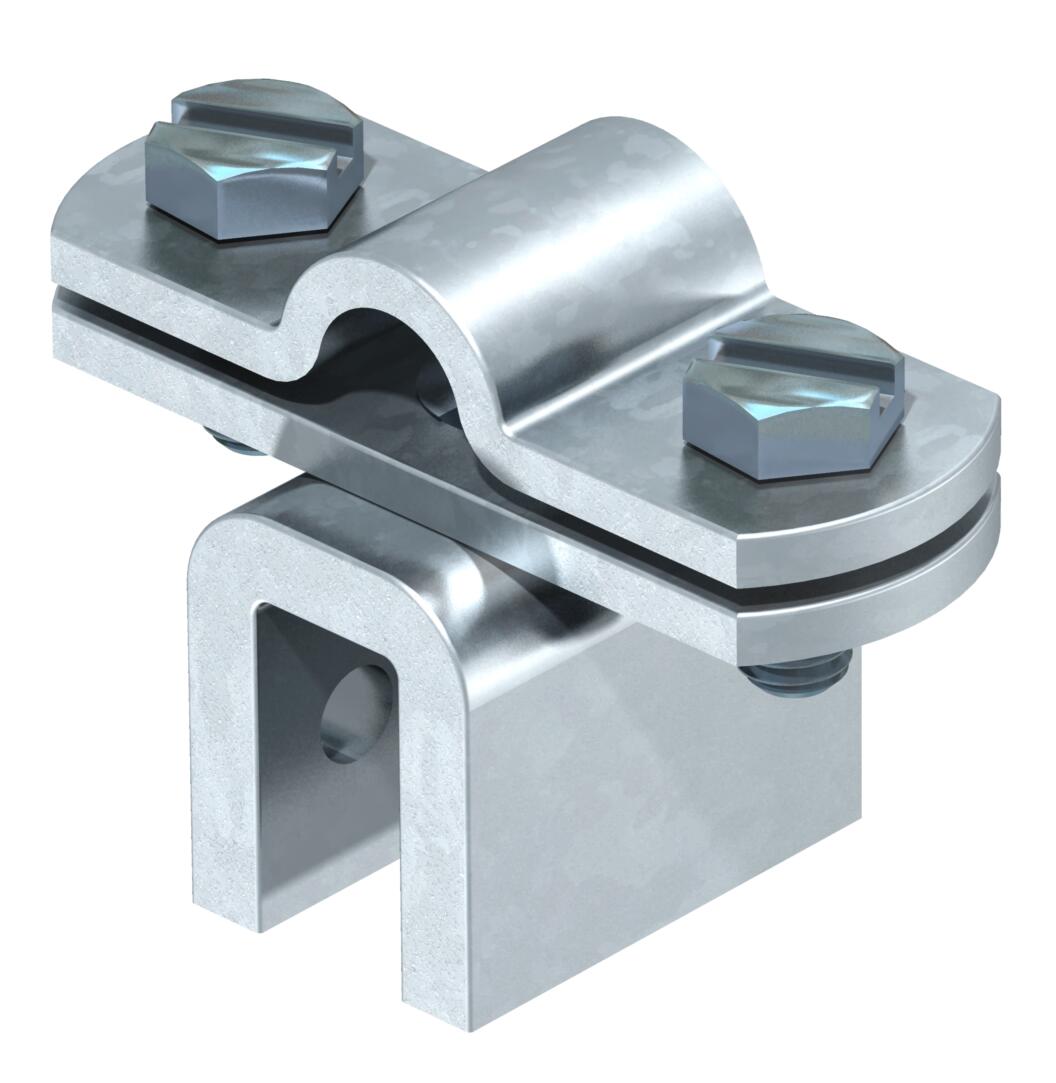

Folding clamp Rd 8-10 up to 10 mm plate thickness FT
Item no. 5317207 | EAN 4012195420552
- Product description
-
Product description• Metal thickness to 10 mm
• For conductor routing transverse and in parallel to the plate
• Corresponds to the requirements to DIN V VDE V 0185-3 section 4.5
-
- Technical data
-
Technical data
Clamping range, max. 10 mm Dimension 8/10mm Fit Rd 8-10 mm Lightning current carrying capacity N/50 kA Material Steel Surface Hot-dip galvanised Type of connector Folding clamp Type of fastening screw Hexagonal bolt CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,3479 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,3479 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet 270 8-10 FT / 5317207 , 0.19MB , pdfEU declaration of conformity 270 8-10 FT / 5317207 , 0.06MB , pdfREACH Declaration of conformity 270 8-10 FT / 5317207 , 0.10MB , pdfRoHS Declaration of conformity 270 8-10 FT / 5317207 , 0.13MB , pdf
