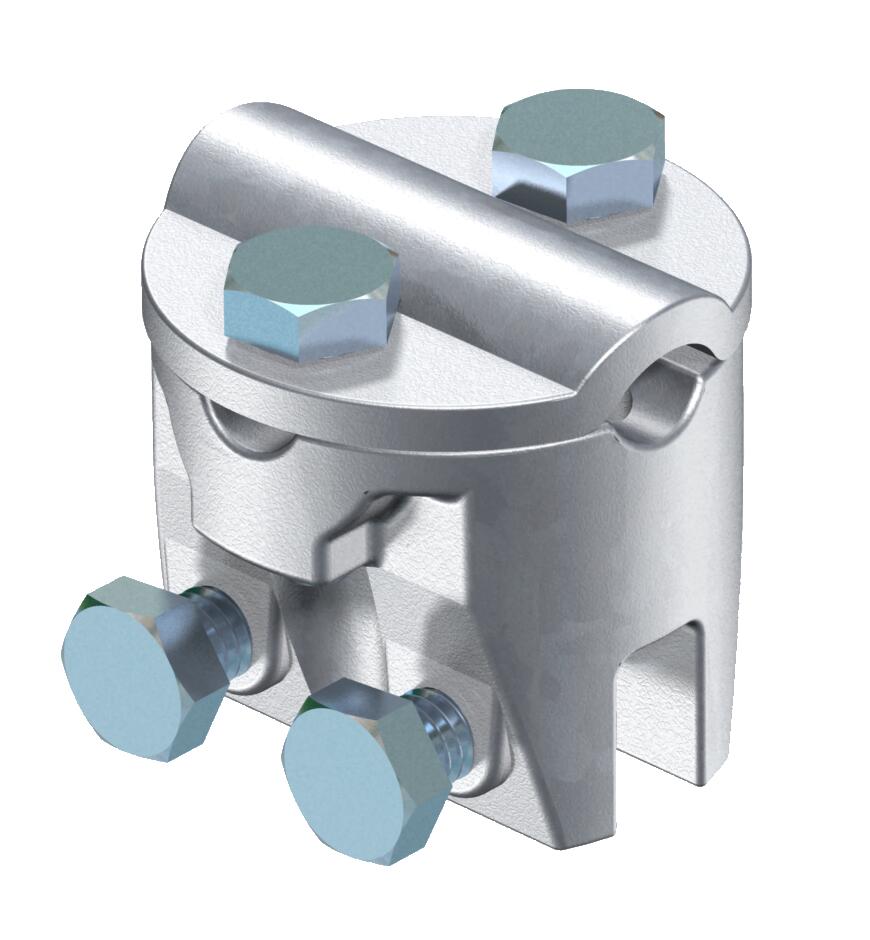

Folding clamp up to 7 mm plate thickness

Item no. 5317010 | EAN 4012195420439

5317010 / 269 8-10
Rd 8-10 mm
7 mm
Product description
Product description
• Plate thickness to 7 mm

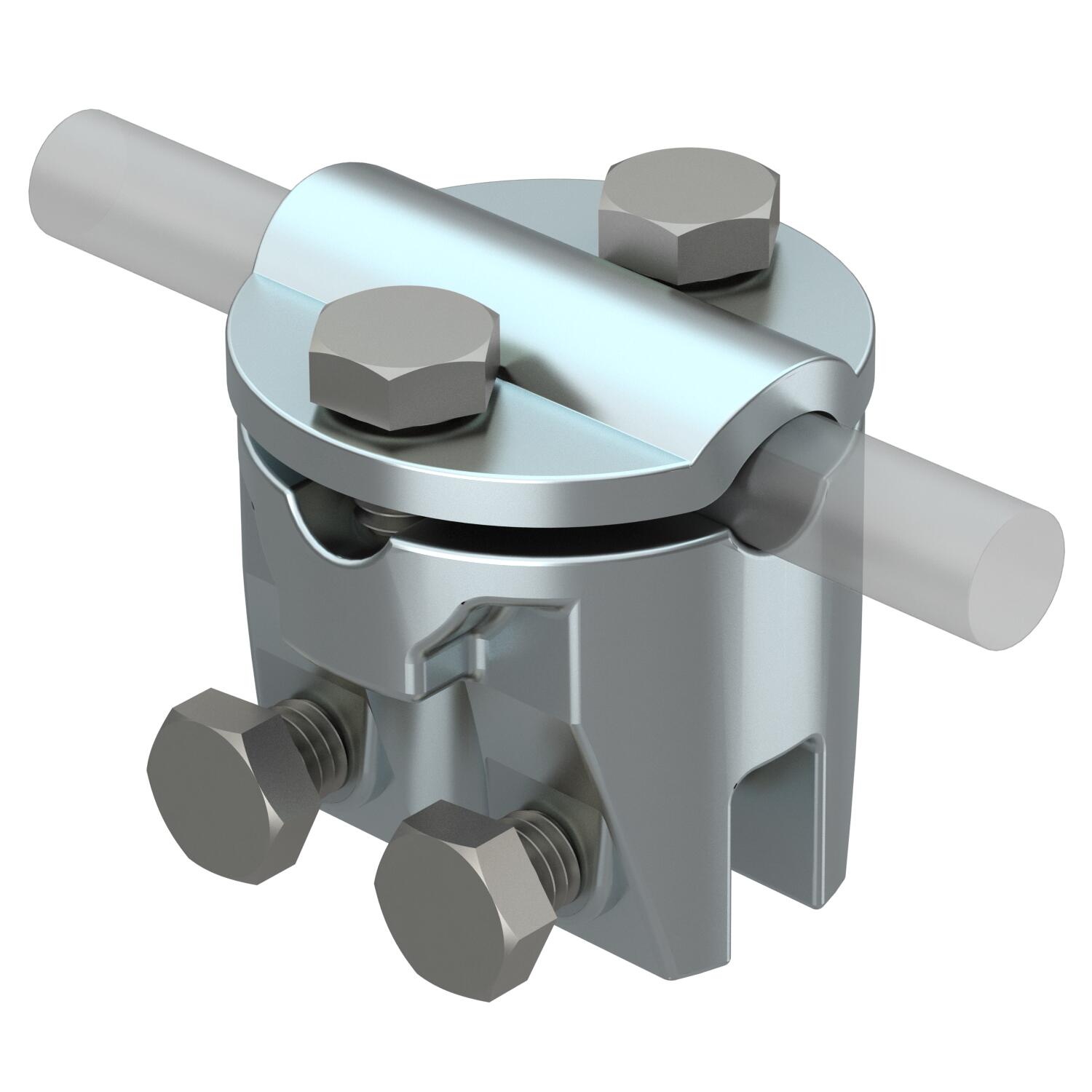

• For cable routing across and parallel to the plate with 4 hexagonal bolts M6 x 16
• Meets the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Clamping range, max. 7 mm
Dimension 8/10mm
Fit Rd 8-10 mm
Lightning current carrying capacity N/50 kA
Material Die-cast zinc
Surface Electrogalvanised
Type of connector Folding clamp
Type of fastening screw Hexagonal bolt

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,6686 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,6686 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Fit Clamping range, max. Item no. Quantity SSU
269 8-10 Rd 8-10 mm 7 mm 5317010
20 piece
