Frame cassette for inspection opening, RK, nominal size 350-3, stainless steel 20 | 18

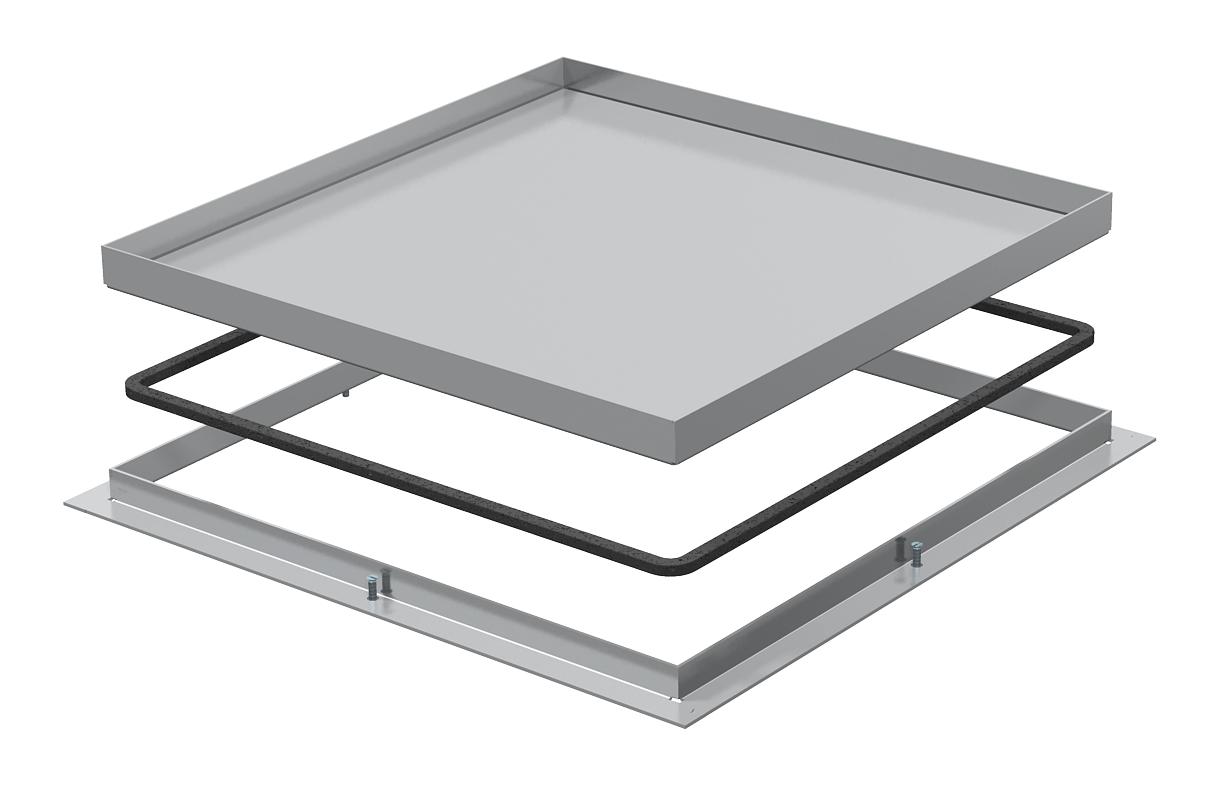

Frame cassette for inspection opening, RK, nominal size 350-3, stainless steel

Item no. 7406036 | EAN 4012195106432

Item no. / Types

Dimension h

Floor covering thickness

Product description

Product description

"Blank" frame cassette for the creation of an inspection opening in the UZD350-3 in dry or wet-cleaned floors for indoor use. Only suitable for smooth floor coverings.

Technical data

Technical data

Cable outlet version	No cable outlet
Device support to accept mounting boxes	no
Dimension	383x383x20
Floor care	Wet
Floor covering thickness	18 mm

Material	Stainless steel 1.4301
Protection rating (IP) when unused	IP44
Protection rating (IP) when used	IP00
Vertical load, large area	to 3,000 N
Vertical load, small area	to 3,000 N

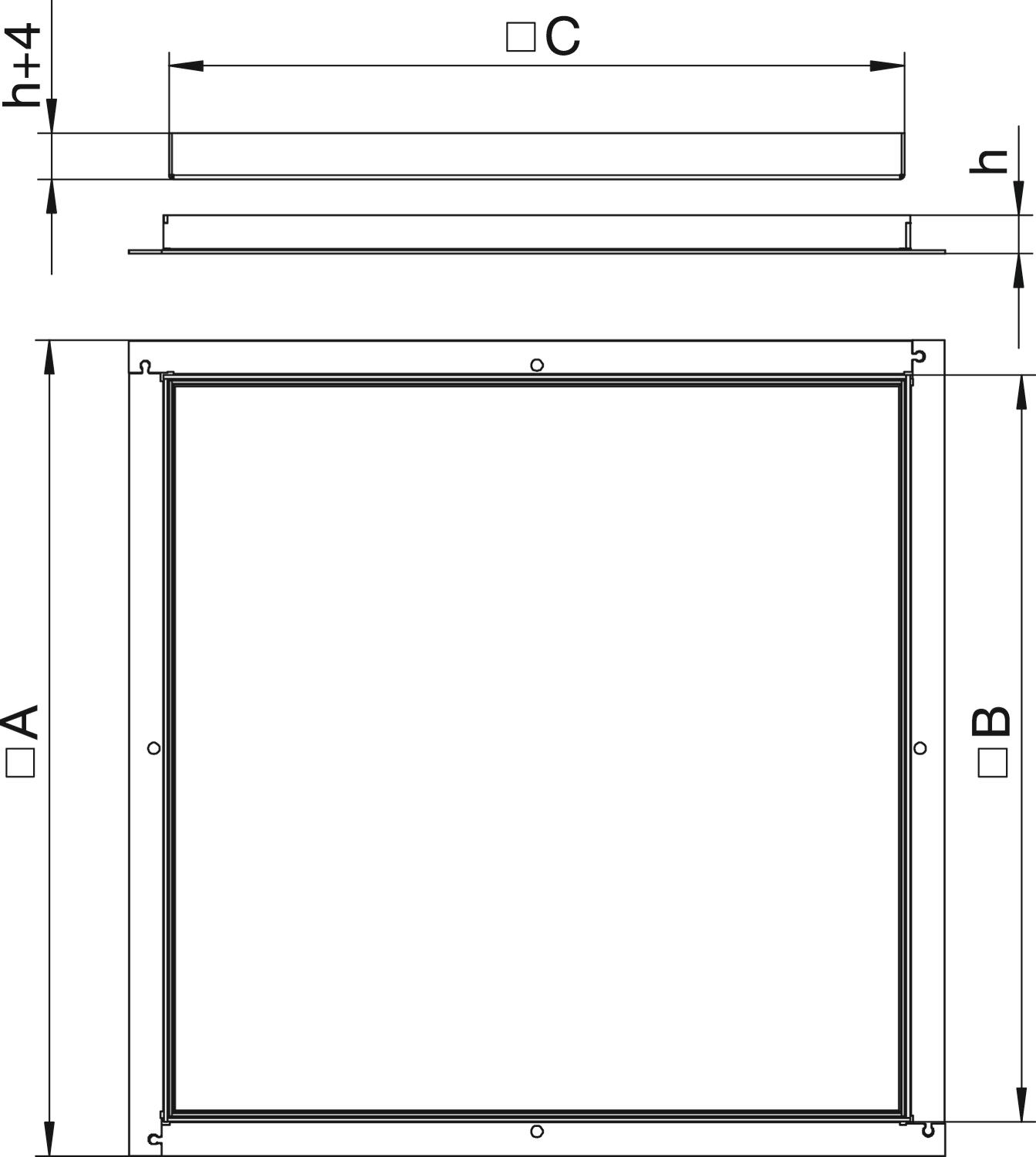

Dimensions

Dimension A	424 mm
Dimension B	388 mm

Dimension C	382 mm
Dimension h	20 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	29,3003 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	29,3003 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Dimension h	Floor covering thickness	Item no.	Quantity	SSU
RK V3 10	10 mm	8 mm	7406028	piece	1 piece
RK V3 15	15 mm	13 mm	7406032	piece	1 piece
RK V3 20	20 mm	18 mm	7406036	piece	1 piece
RK V3 25	25 mm	23 mm	7406040	piece	1 piece
RK V3 30	30 mm	28 mm	7406044	piece	1 piece
