Note: This article is discontinued. You can find the current article here: 7408970 / Height-adjustable cassette for inspection opening, RKN, stainless steel

Height-adjustable cassette for inspection opening, RKN, stainless steel 100 | 150 | 20 | 100 | No cable outlet | 9

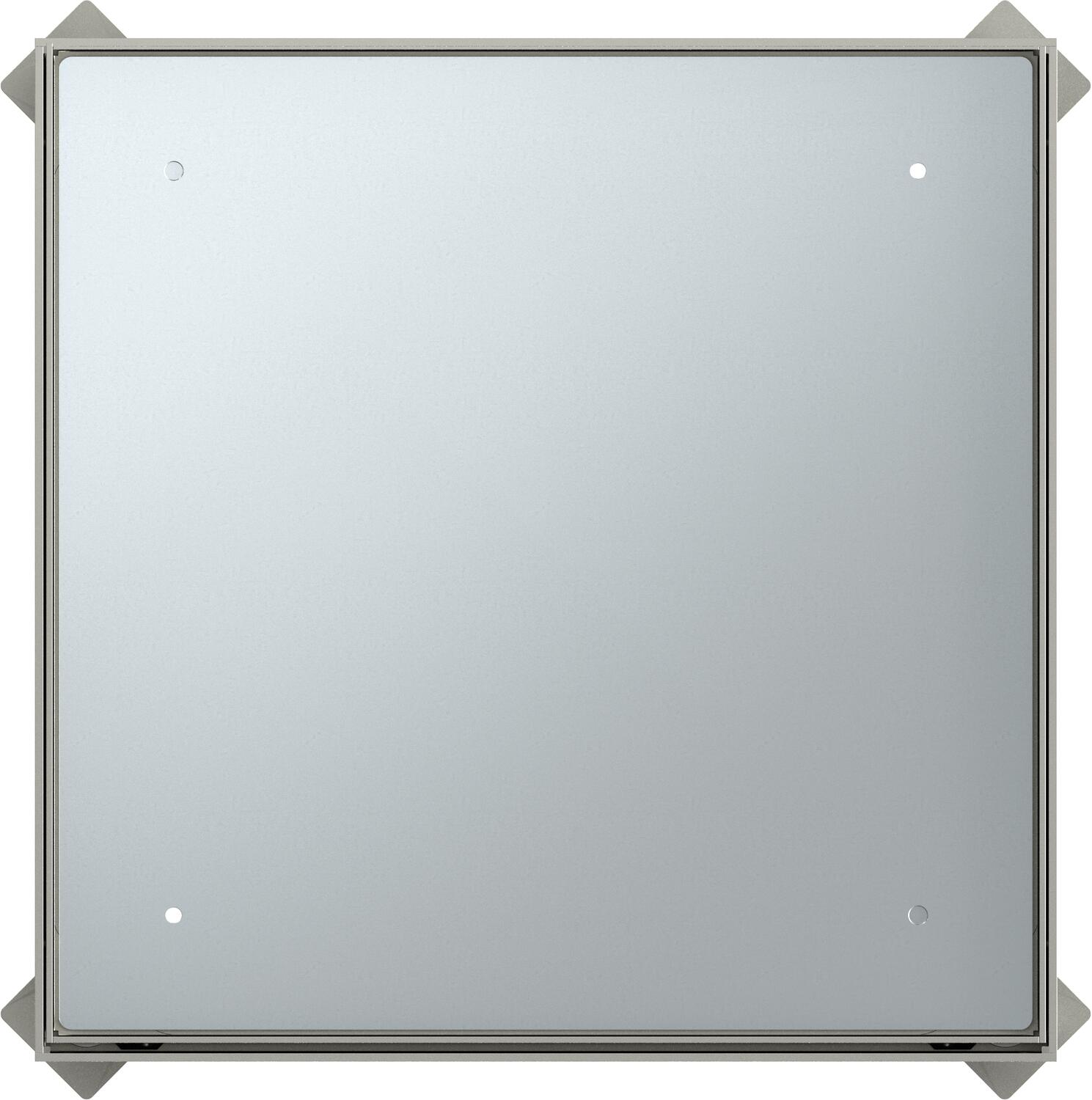

Height-adjustable cassette for inspection opening, RKN, stainless steel

Item no. 7409044 | EAN 4012195867777

Item no. / Types

Floor height, min.

Floor height, max.

Floor covering thickness

Dimension h

Cable outlet version	No cable outlet

Nominal size for device installation units	9

Product description

Product description

Height-adjustable "blank" cassette for the creation of an inspection opening of nominal size 9 in dry or wet-cleaned floors for indoor use. Only suitable for smooth floor coverings.
For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45 devices.

Technical data

Technical data

Approvals	VDE
Cable outlet version	No cable outlet
Decouplable	no
Device support to accept mounting boxes	no
Dimension	243x243mm
Dimension h	100 mm
Floor care	Wet
Floor covering thickness	20 mm
Floor height, max.	150 mm
Floor height, min.	100 mm
Heavy-duty version	no
Height-adjustment range, max.	150 mm
Height-adjustment range, min.	100 mm
Installation depth	100 mm
Installation system type	UT4
Length	243 mm

Length of installation dimensions	244 mm
Material	Stainless steel
Nominal size	350 mm
Nominal size for device installation units	9
Number of mounting boxes	3
Protection rating (IP) when unused	IP40
Protection rating (IP) when used	IP00
Protection rating IK code	IK10
Suitable for cavity floor installation	yes
Suitable for raised floor installation	yes
Version for	Square
Vertical load, large area	to 15,000 N
Vertical load, small area	to 3,000 N
Wide installation dimensions	244 mm
Width	243 mm

All types

All types

Types	Floor height, min.	Floor height, max.	Floor covering thickness	Dimension h	Cable outlet version	Nominal size for device installation units	Item no.	Quantity	SSU
RKN2 9 VS 20	100 mm	150 mm	20 mm	100 mm	No cable outlet	9	7409044	piece	1 piece
RKN2 9 VS 25	105 mm	155 mm	25 mm	105 mm	No cable outlet	9	7409046	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Height adjustment unit RKNEV2	RK NEV2 110	7405815	PU	1 PU
Mounting support for data technology connection sockets, system length 208 mm	MTU 3	7407840	piece	1 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm	UT4 45 4	7408727	piece	1 piece
