Hook-head screw A4 43.3 | 13 | 10 | M12x60mm
morepic-1 morepic-2

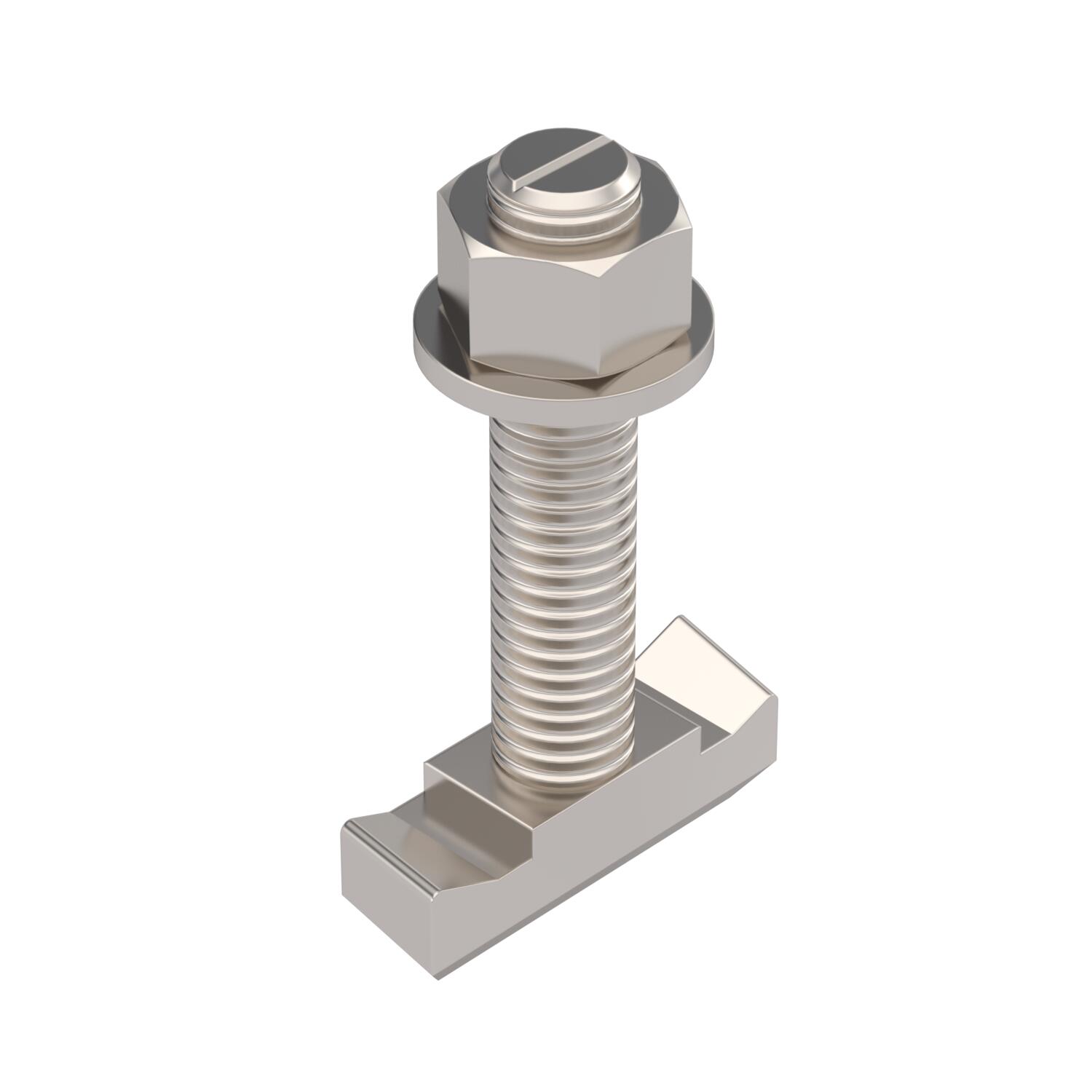

Hook-head screw A4

Item no. 1148280 | EAN 4012196489824

Product description
Product description
Hook-head screw for use with MS5030 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Dimension M12x60mm
Material Stainless steel
Suitable for mounting rail yes
Surface Bright, treated
Thread M12x60mm
Thread metric 12

Dimensions

Height 10 mm
Length 43,3 mm
Width 13 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,5562 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,5562 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS50HB M6x30 A4 43 mm 21 mm 12 mm M6x30mm 1148256
50 piece
MS50HB M8x30 A4 43 mm 21 mm 12 mm M8x30mm 1148260
50 piece
MS50HB M8x60 A4 43 mm 21 mm 12 mm M8x60mm 1148264
25 piece
MS50HB M10x30 A4 43.3 mm 13 mm 10 mm M10x30mm 1148268
50 piece
MS50HB M10x60 A4 43.3 mm 13 mm 10 mm M10x60mm 1148272
25 piece
MS50HB M12x30 A4 43.3 mm 13 mm 10 mm M12x30mm 1148276
50 piece
MS50HB M12x60 A4 43.3 mm 13 mm 10 mm M12x60mm 1148280
25 piece
Downloads

Download

Download
Download

REACH Declaration of conformity MS50HB M12x60 A4 / 1148280 , 0.12MB , pdf
Download
RoHS Declaration of conformity MS50HB M12x60 A4 / 1148280 , 0.13MB , pdf
Download

Download

MS50HB M12x60 A4 / 1148280
