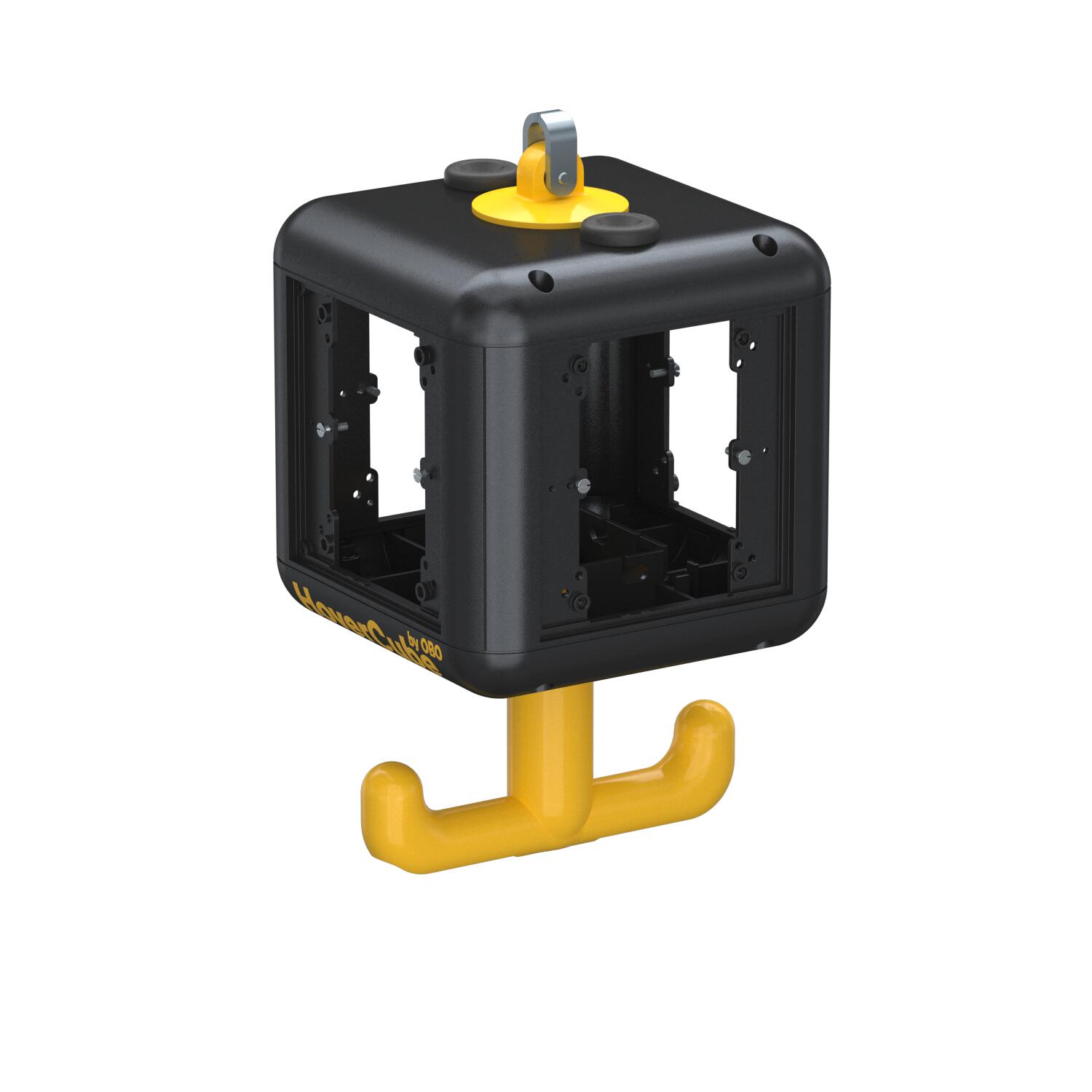

HoverCube VH-4, empty housing
Item no. 6109800 | EAN 4012195125037
- Product description
-
Product descriptionEmpty housing with suspension lug and grip hook, for the installation of four electrical resources, with included partition. Without cover plates.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
-
- Technical data
-
Technical data

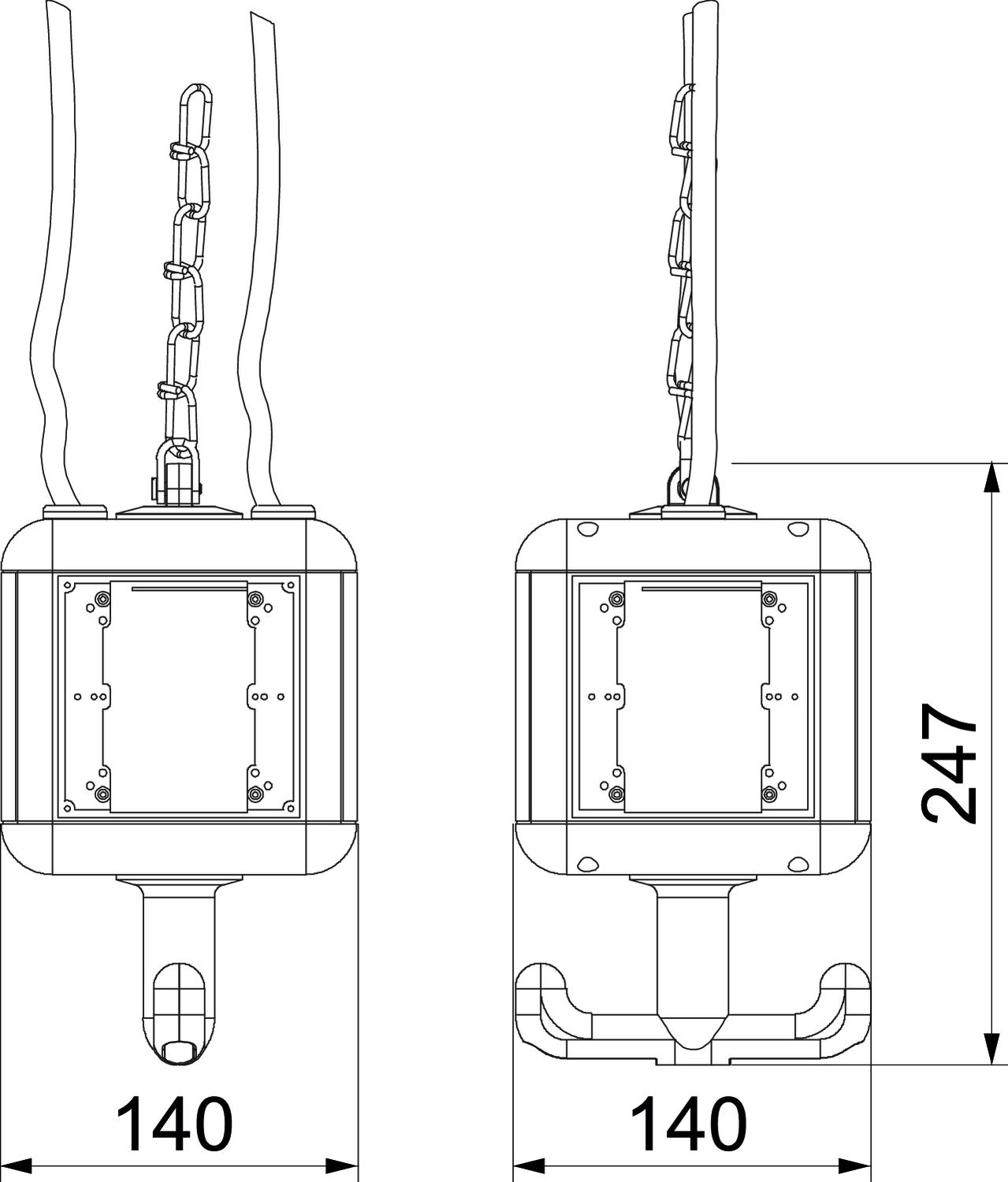

CEE socket, 16 A Without CEE socket, 32 A Without Colour Graphite black; RAL 9011 Depth 140 mm Dimension 140x140x252 FI protection switch Without Handling abhängbar Material Polyamide Military version no Other installations and/or empty slots 4 Protection rating IP20 Supply/connection option Miscellaneous Dimensions
Height 237 mm Width 140 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,1946 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,1946 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Knotted chain
VH-K800 6109870 1 m
Positioner for power supply units VH
VH-POS 6109887 1 piece
VH/VHF tension spring
VH-F100VA 6109829 1 piece - Downloads
-
Data sheet VH-4 LG / 6109800 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity VH-4 LG / 6109800 , 0.10MB , pdfREACH Declaration of conformity VH-4 LG / 6109800 , 0.10MB , pdfRoHS Declaration of conformity VH-4 LG / 6109800 , 0.13MB , pdfMounting instructions Mounting instructions, HoverCube (not pre-terminated) , 3.04MB , pdfMounting instructions Mounting instructions, VH-4/..; VH-4L/.. , 0.06MB , pdf
