HoverCube VH-8, empty housing, with cover plates
Item no. 6109820 | EAN 4012195125198
- Product description
-

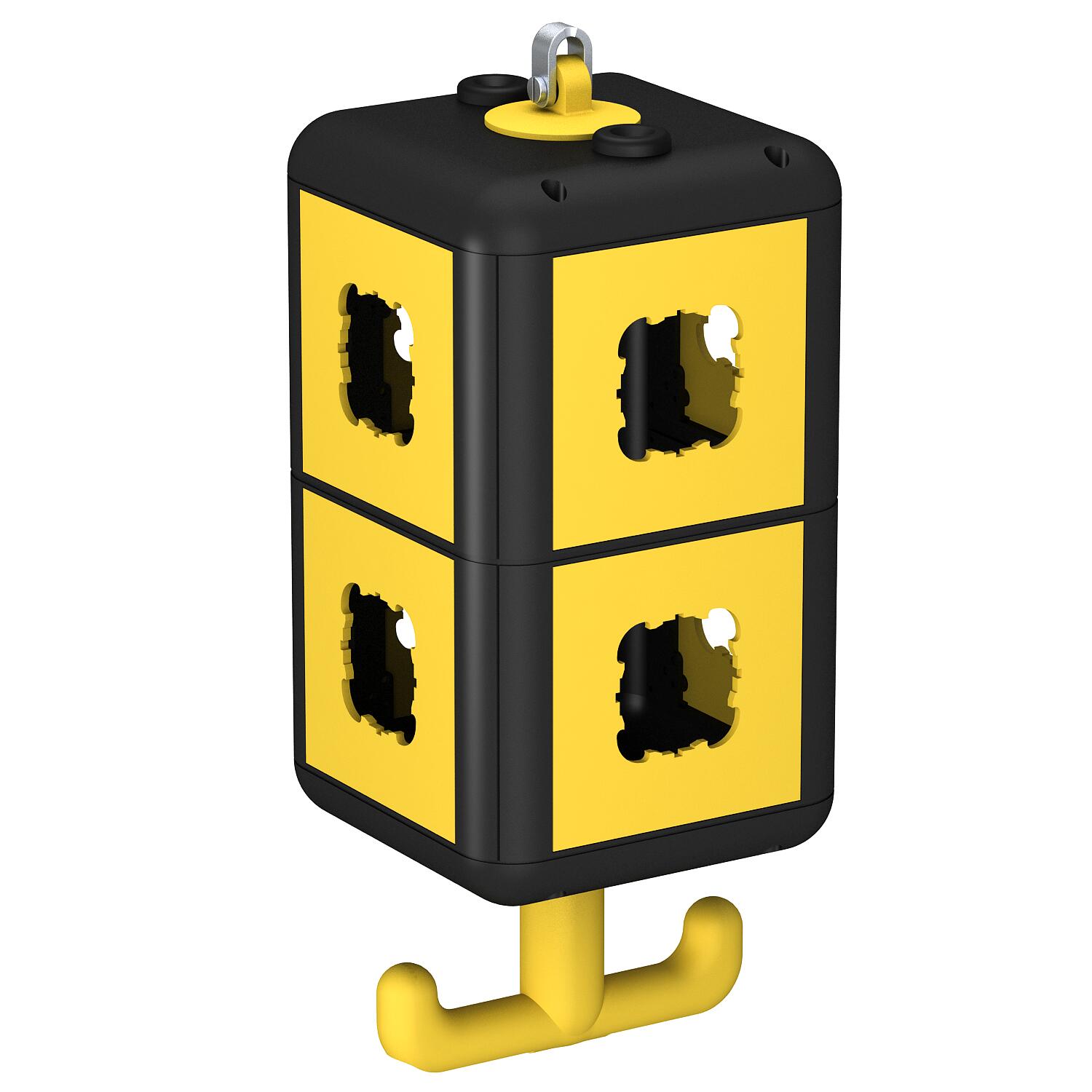

Product descriptionEmpty housing with suspension lug and grip hook, for the installation of eight electrical resources, with included partition. With eight cover plates for accessories with concealed support ring or support bracket.
- Housing in graphite black, RAL 9011
- Cover plates in rape yellow, RAL 1021.
-
- Technical data
-
Technical data
CEE socket, 16 A Without CEE socket, 32 A Without Colour Graphite black; RAL 9011 Depth 140 mm Dimension 140x140x352 FI protection switch Without Handling abhängbar Material Polyamide Military version no Other installations and/or empty slots 8 Protection rating IP20 Supply/connection option Miscellaneous Dimensions

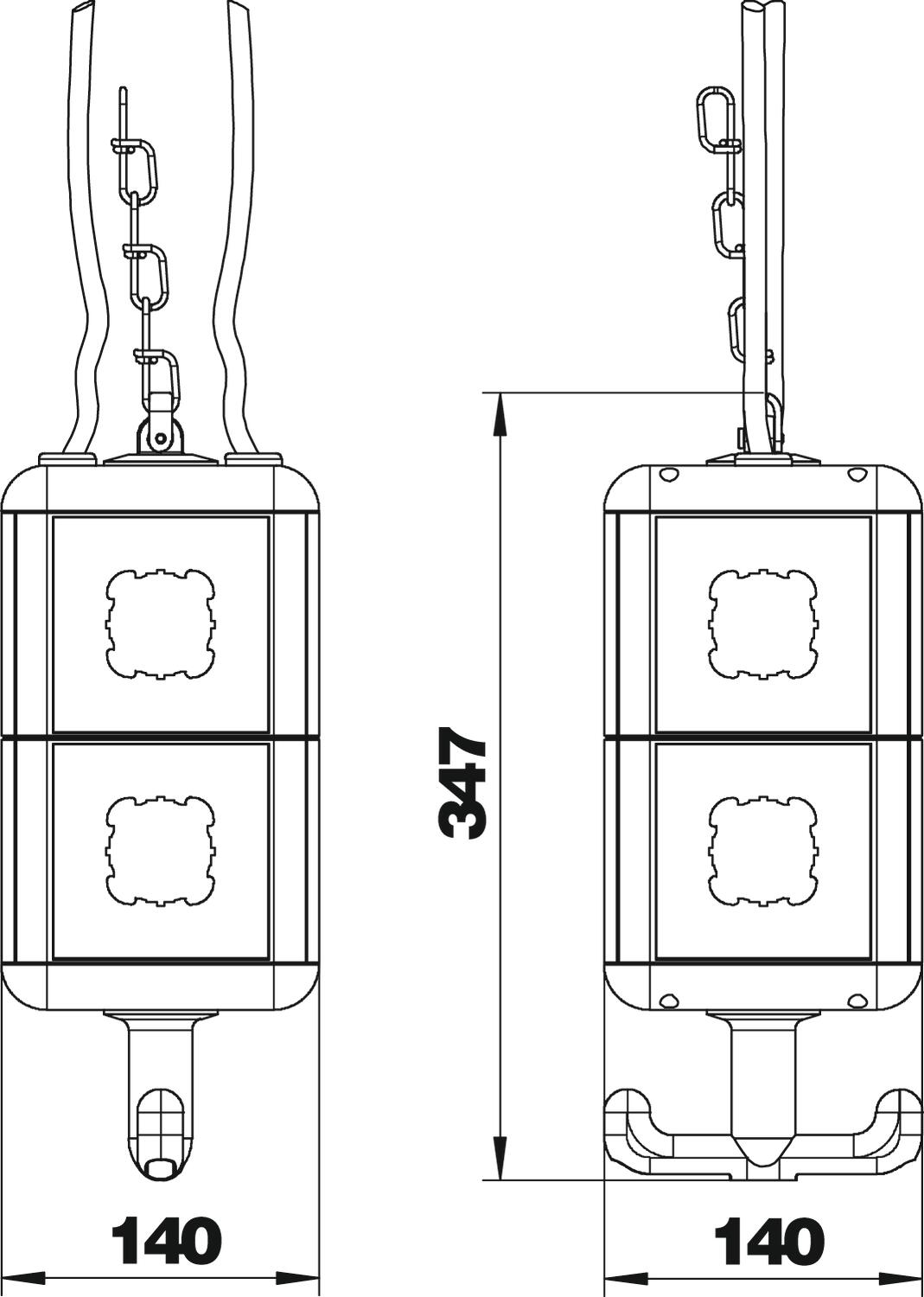

Height 347 mm Width 140 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 5,4976 kg CO2e / 1 Piece CO₂ Footprint (GWP) 5,4976 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Knotted chain
VH-K800 6109870 1 m
Positioner for power supply units VH
VH-POS 6109887 1 piece
VH/VHF tension spring
VH-F100VA 6109829 1 piece - Downloads
-
Data sheet VH-8 LG8P2 / 6109820 , 0.20MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity VH-8 LG8P2 / 6109820 , 0.10MB , pdfREACH Declaration of conformity VH-8 LG8P2 / 6109820 , 0.13MB , pdfRoHS Declaration of conformity VH-8 LG8P2 / 6109820 , 0.13MB , pdfMounting instructions Mounting instructions, HoverCube (not pre-terminated) , 3.04MB , pdf
