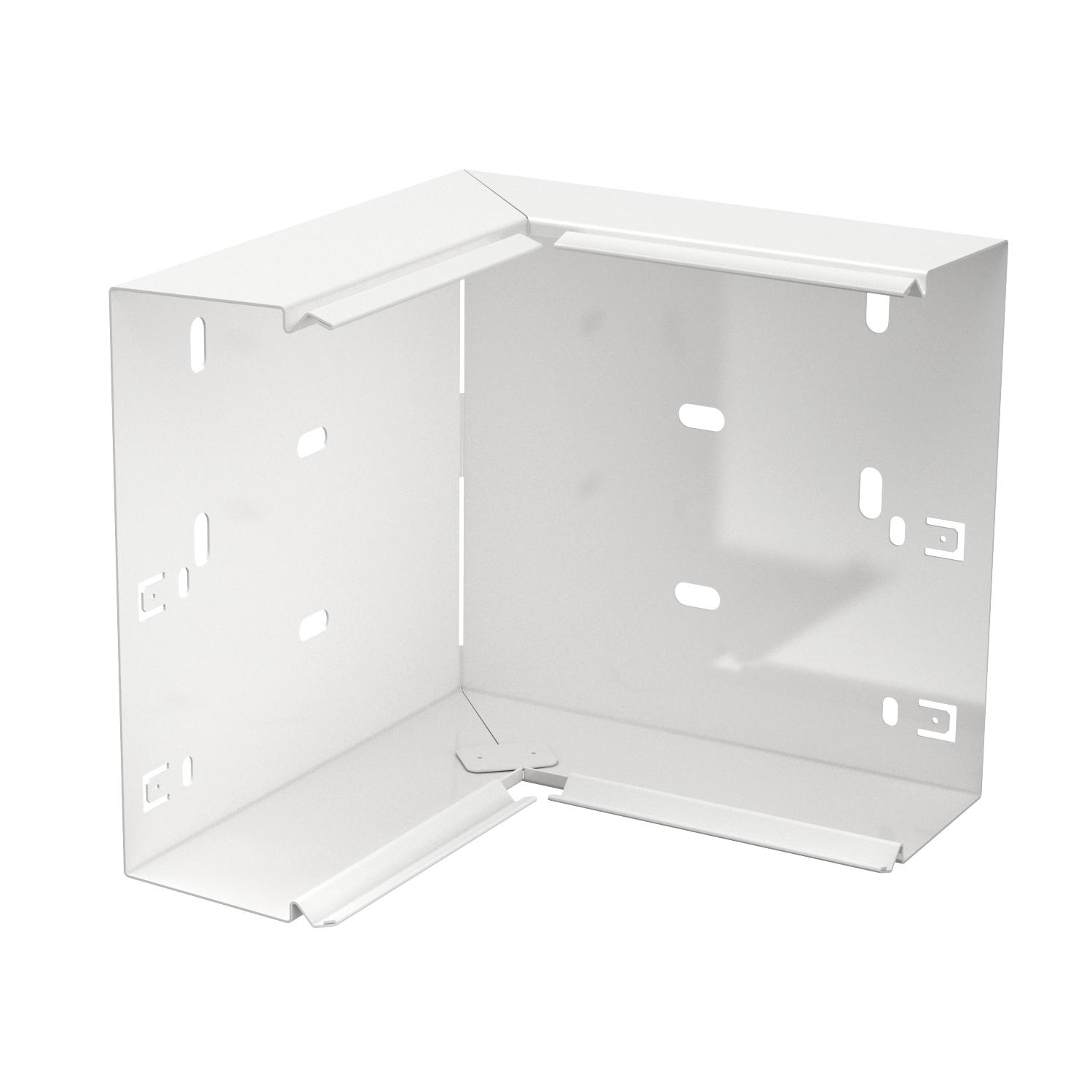

Internal corner, for cable trunking type LKM 60150
Item no. 6249647 | EAN 4012196315130
- Product description
-
Product descriptionInternal corner for changing the direction of the LKM trunking.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no CO2 Footprint (GWP) Cradle-to-Gate 2,1279 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Dimension 60x150mm Dimension a 160 mm Fastening type Base perforation Halogen-free yes Height 64 mm Length 160 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Version for Base Width 150 mm - All types
- Downloads
-
Data sheet LKM I60150RW / 6249647 , 0.19MB , pdfEU declaration of conformity LKM I60150RW / 6249647 , 0.11MB , pdfUK Declaration of Conformity LKM I60150RW / 6249647 , 0.09MB , pdfREACH Declaration of conformity LKM I60150RW / 6249647 , 0.27MB , pdfRoHS Declaration of conformity LKM I60150RW / 6249647 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
