Joint cover, trunking height 70 mm
Item no. 6279764 | EAN 4012195667704
- Product description
-

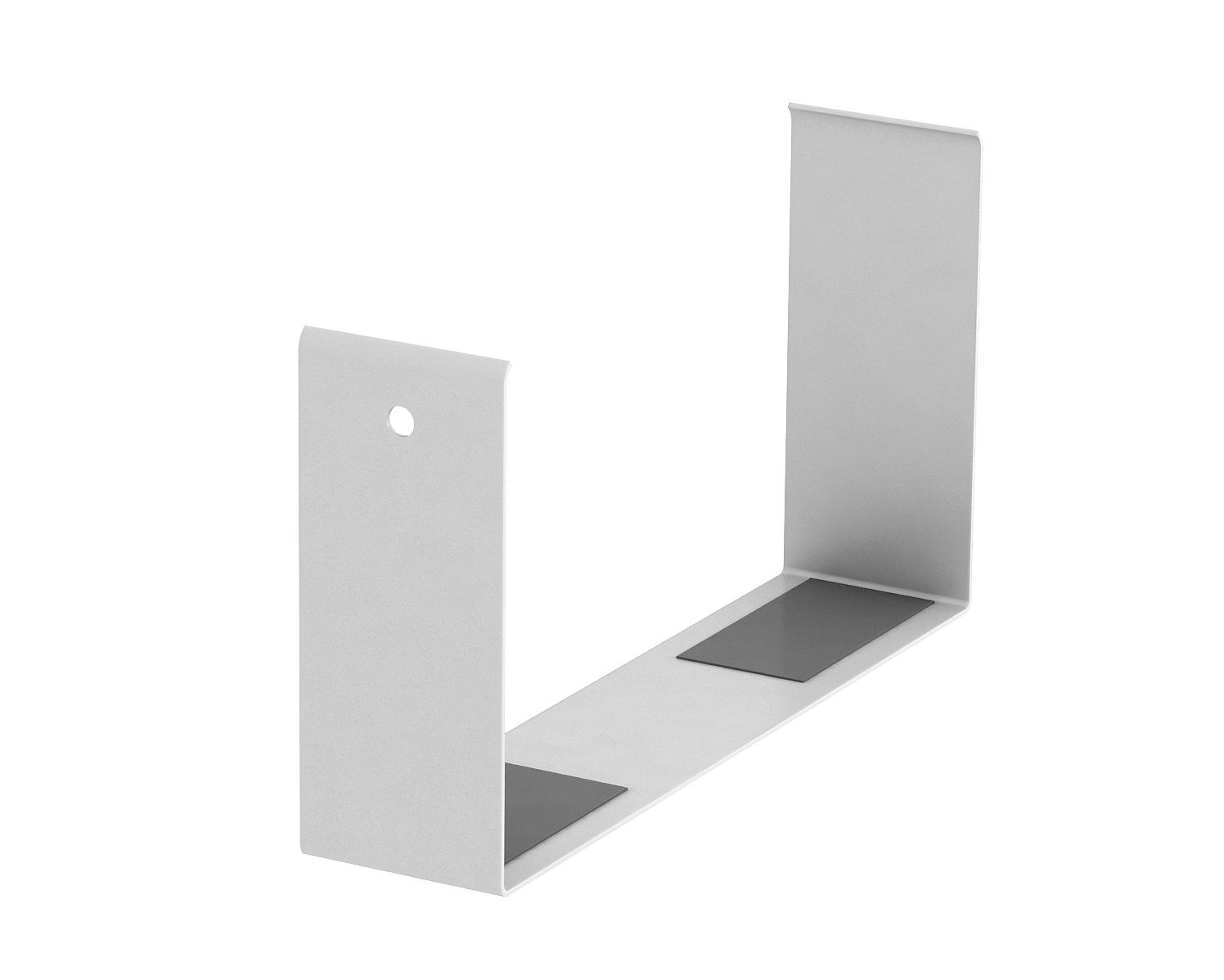

Product descriptionJoint cover to hide sawn trunking joint edges.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Cover width 76,5 mm Dimension 70x130x30 Duct height, min. 70 mm Fastening type Self-adhesive for duct dimension 70x130 for duct width 130 mm for trunking height 70 mm Halogen-free yes Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Shape Universal Trunking depth 70 mm Version for Trunking cut cover Dimensions

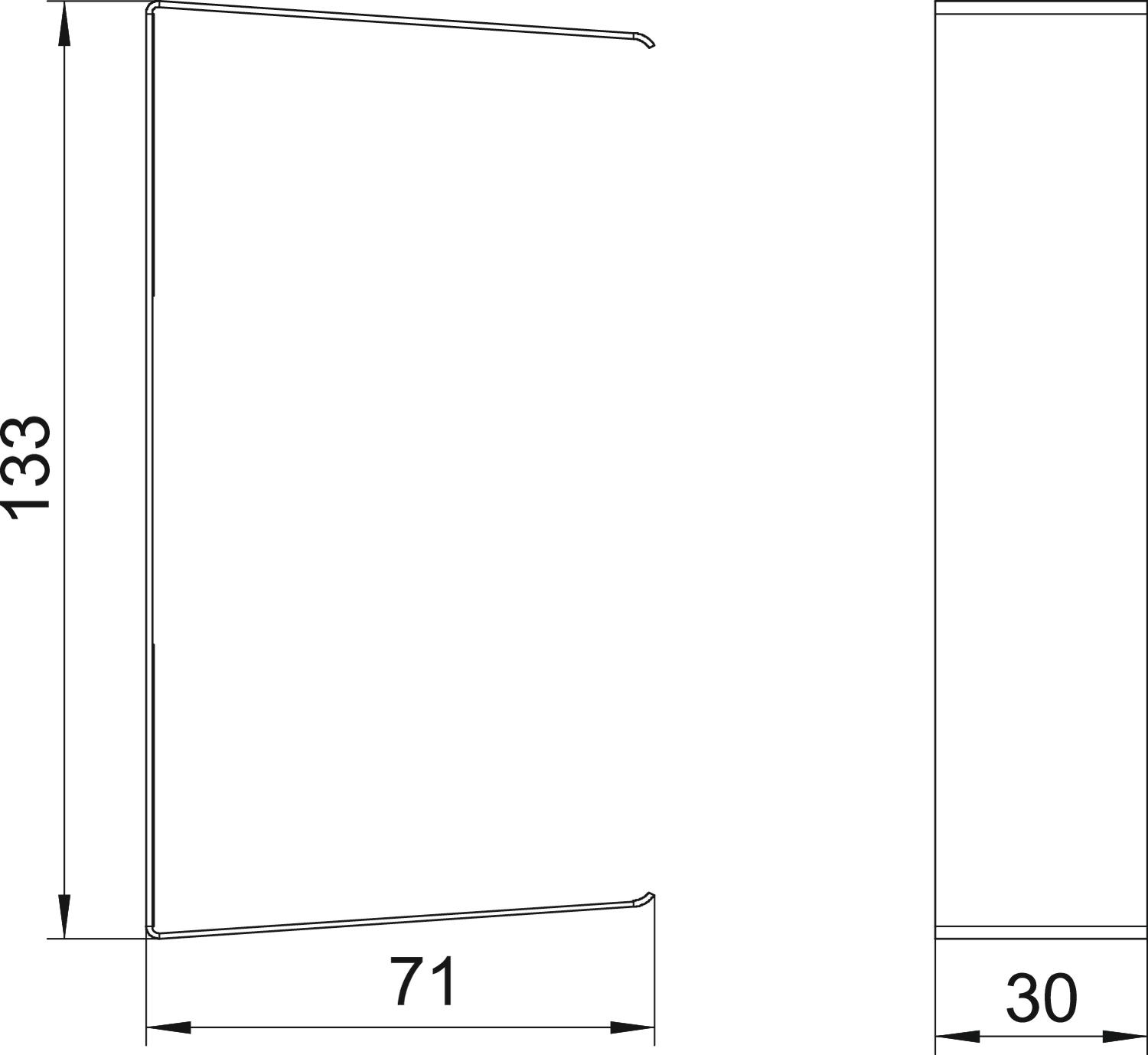

Height 71 mm Length 30 mm Width 133 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,2715 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,2715 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet G-SVS70130RW / 6279764 , 0.19MB , pdfEU declaration of conformity G-SVS70130RW / 6279764 , 0.10MB , pdfUK Declaration of Conformity G-SVS70130RW / 6279764 , 0.09MB , pdfREACH Declaration of conformity G-SVS70130RW / 6279764 , 0.27MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
