Kantenschutzring KSR 40060, für LKM-Kanal Typ 40060 18 | 63
morepic-1

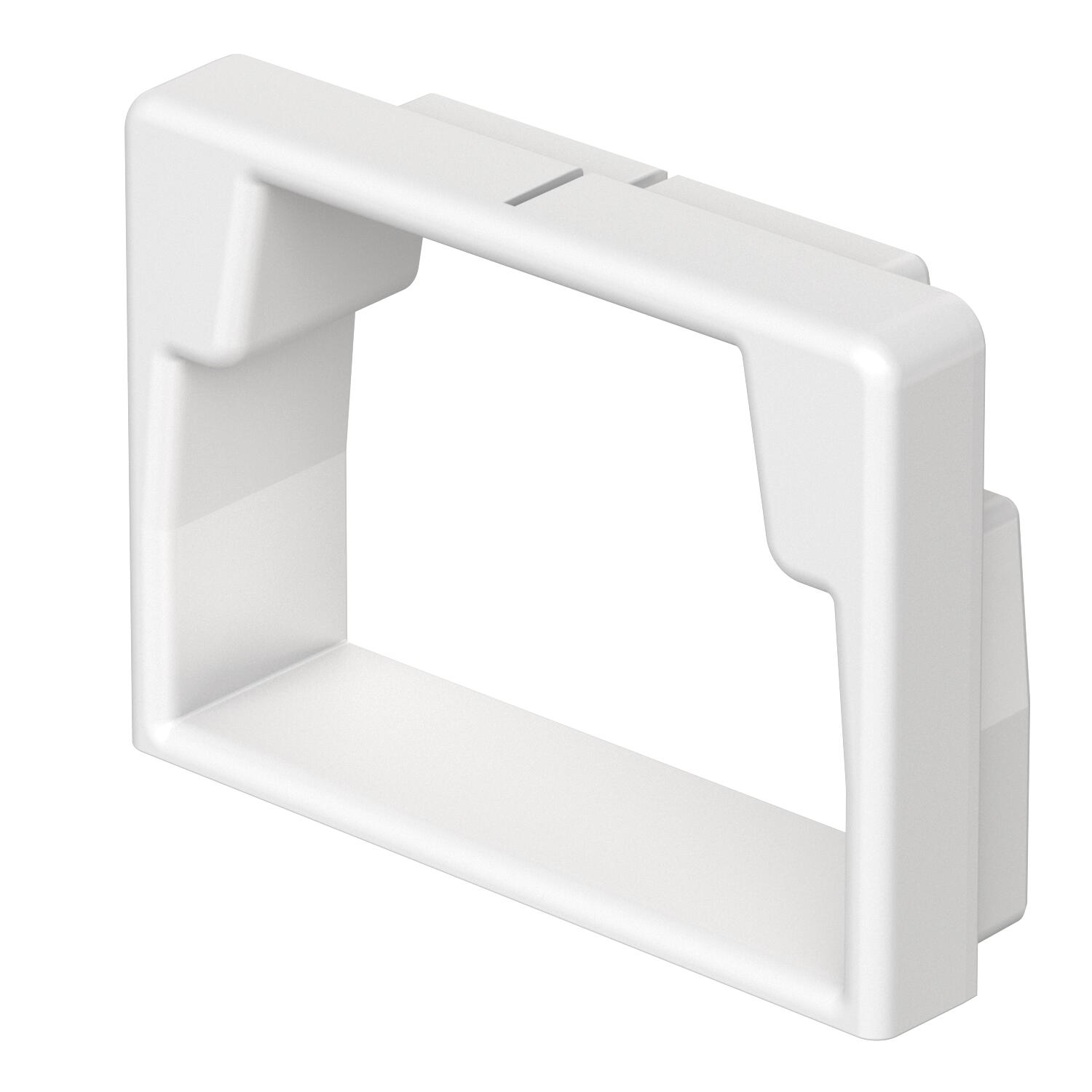

Kantenschutzring KSR 40060, für LKM-Kanal Typ 40060

Item no. 6249660 | EAN 4012197532116

6249660 / LKM KSR40060RW
18 mm
63 mm
Product description
Product description
Kantenschutzring für die offenen Enden von LKM Leitungsführungskanälen.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 40x60mm
for plate thickness, min. 0,75 mm
Halogen-free yes
Material Thermoplastic elastomer
Product series LKM
Protection rating IP30
Protection rating IK code IK10
ROHS-conformant yes
Suitable for Cable routing duct
Type Injection-moulded part

Dimensions

Height 45 mm
Length 18 mm
Width 63 mm
All types

All types

Types Length Width Item no. Quantity SSU
LKM KSR40060RW 18 mm 63 mm 6249660
5 piece
Downloads

REACH Declaration of conformity LKM KSR40060RW / 6249660 , 0.13MB , pdf
Download
RoHS Declaration of conformity LKM KSR40060RW / 6249660 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
