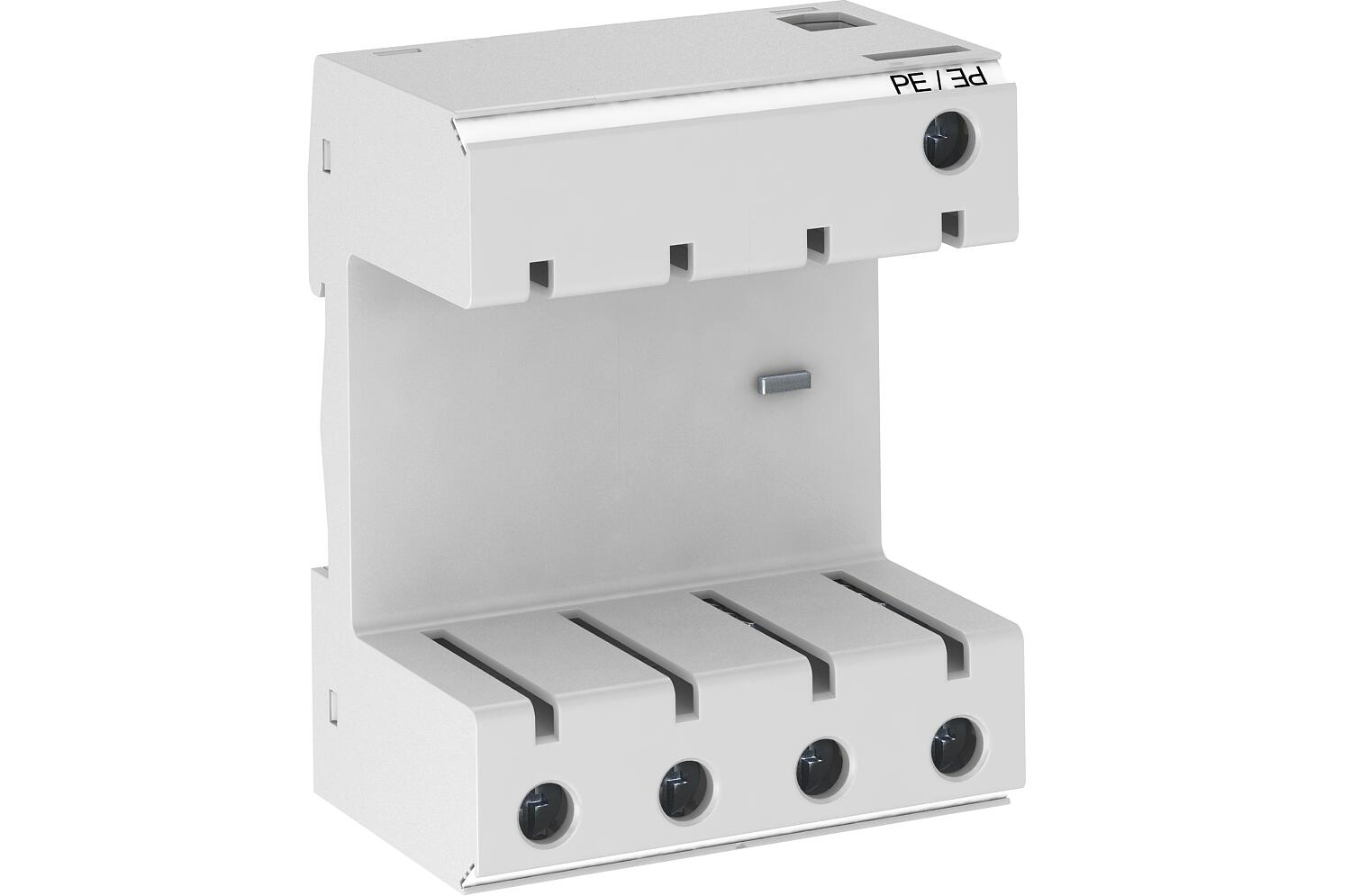

MultiBase base + NPE
Item no. 5096650 | EAN 4012195415770
- Product description
-
Product description• Suitable for V 25-B+C, V 20-C and V10-C
• Pre-mounted and ready for connection
• Multifunction terminals for easy connection to series-mounted devices
• Upper parts can be rotated through 180 degrees
• For TN-S and TT network systems
-
- Technical data
-
Technical data

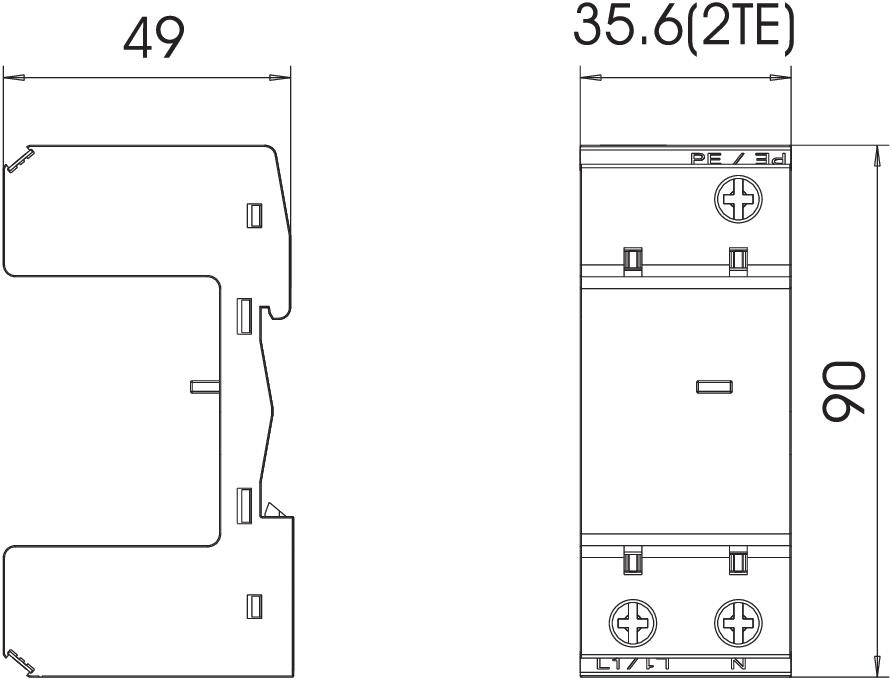

Dimension 1+NPE Installation type DIN rail 35 mm Network form Other Operating temperature, max. 80 °C Operating temperature, min. -40 °C Permitted temperature range, max. 80 °C Permitted temperature range, min. -40 °C Pole version 1+N/PE Protection rating IP20 Remote signalling no Version for 1+NPE Connectivity options
Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,5975 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,5975 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet MB 1+NPE / 5096650 , 0.14MB , pdfREACH Declaration of conformity MB 1+NPE / 5096650 , 0.09MB , pdfRoHS Declaration of conformity MB 1+NPE / 5096650 , 0.13MB , pdfTechnical information MultiBase , 0.54MB , pdf
