Partition GK-TW70
Item no. 6274900 | EAN 4012195658122
- Product description
-

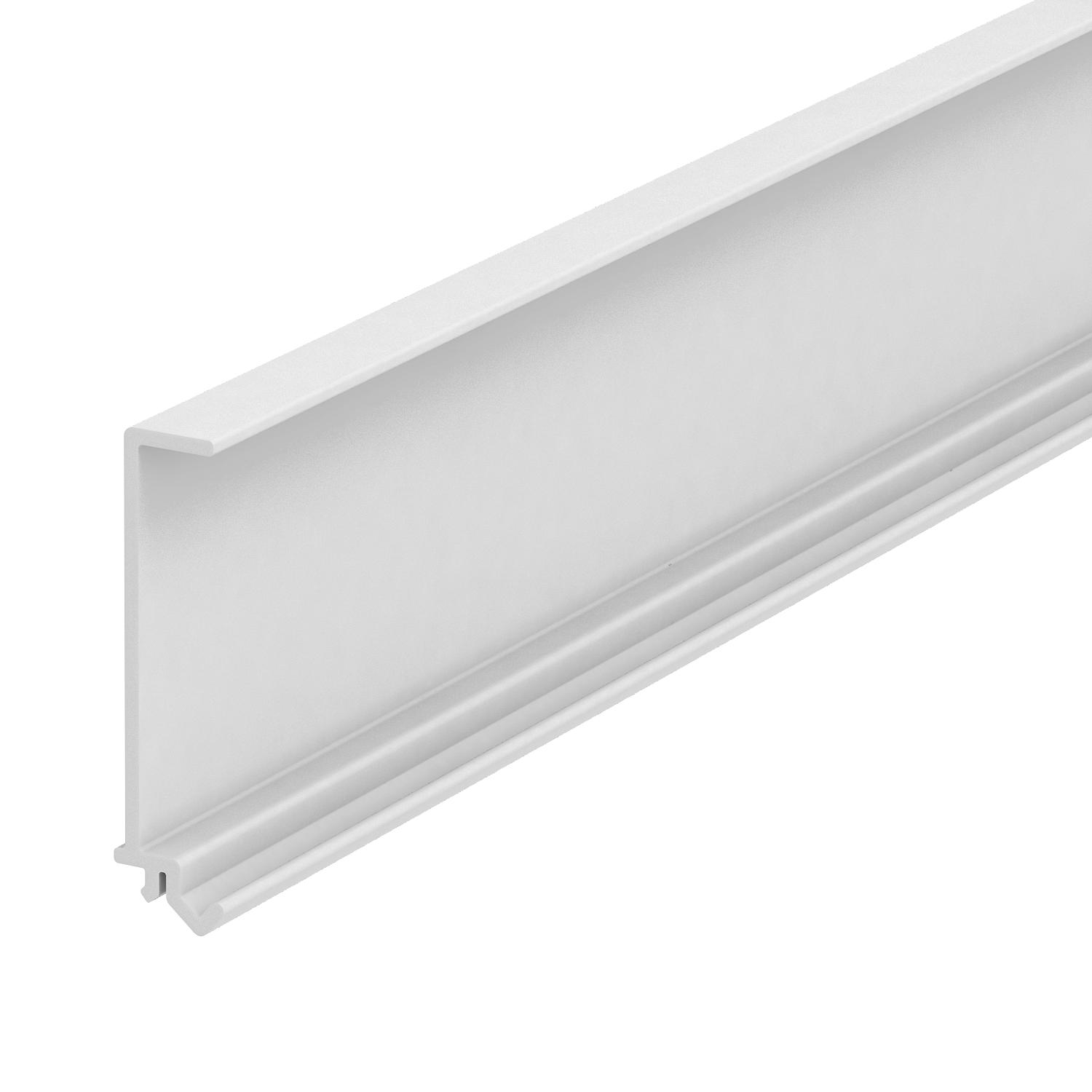

Product descriptionPartition for mounting in Rapid 80 GK, GA and Rapid IBIS device installation trunking or ISS service poles for installing cables of different voltage levels.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 70x2000mm Fastening type Plug-in Halogen-free no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Suitable for duct depth 70 Version for Single Dimensions

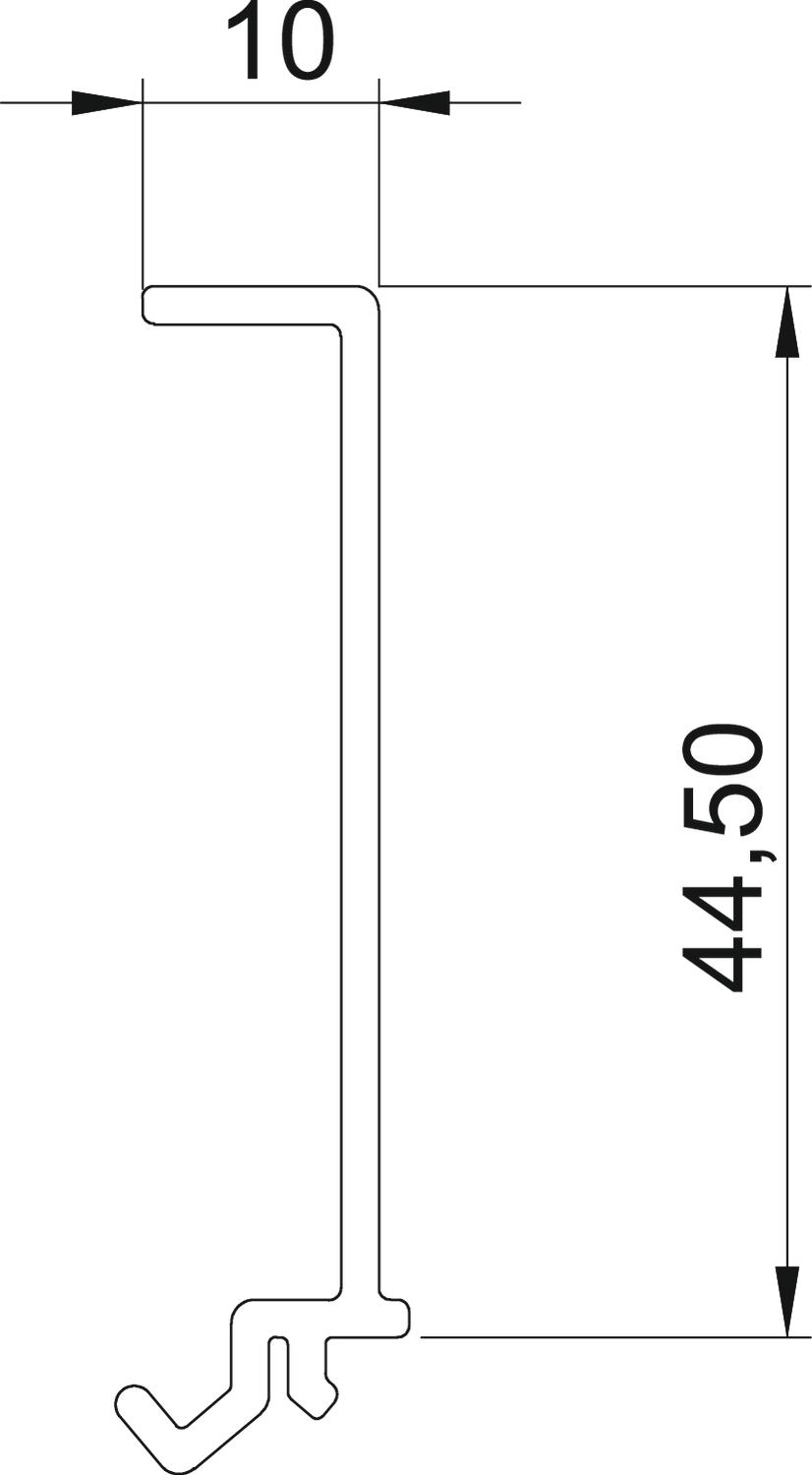

Height 10 mm Length 2000 mm Width 44,5 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,3733 kg CO2e / 1 Meter CO₂ Footprint (GWP) 0,3733 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GK-TW70 / 6274900 , 0.19MB , pdfSafety data sheet GK-TW70 / 6274900 , 0.02MB , pdfEU declaration of conformity GK-TW70 / 6274900 , 0.10MB , pdfUK Declaration of Conformity GK-TW70 / 6274900 , 0.09MB , pdfREACH Declaration of conformity GK-TW70 / 6274900 , 0.12MB , pdfRoHS Declaration of conformity GK-TW70 / 6274900 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfMounting instructions Cable trunking WDK , 6.31MB , pdf
