Note: This article is discontinued.
Perforated steel strap, ridged
Item no. 1475126 | EAN 4012195139935
- Product description
-

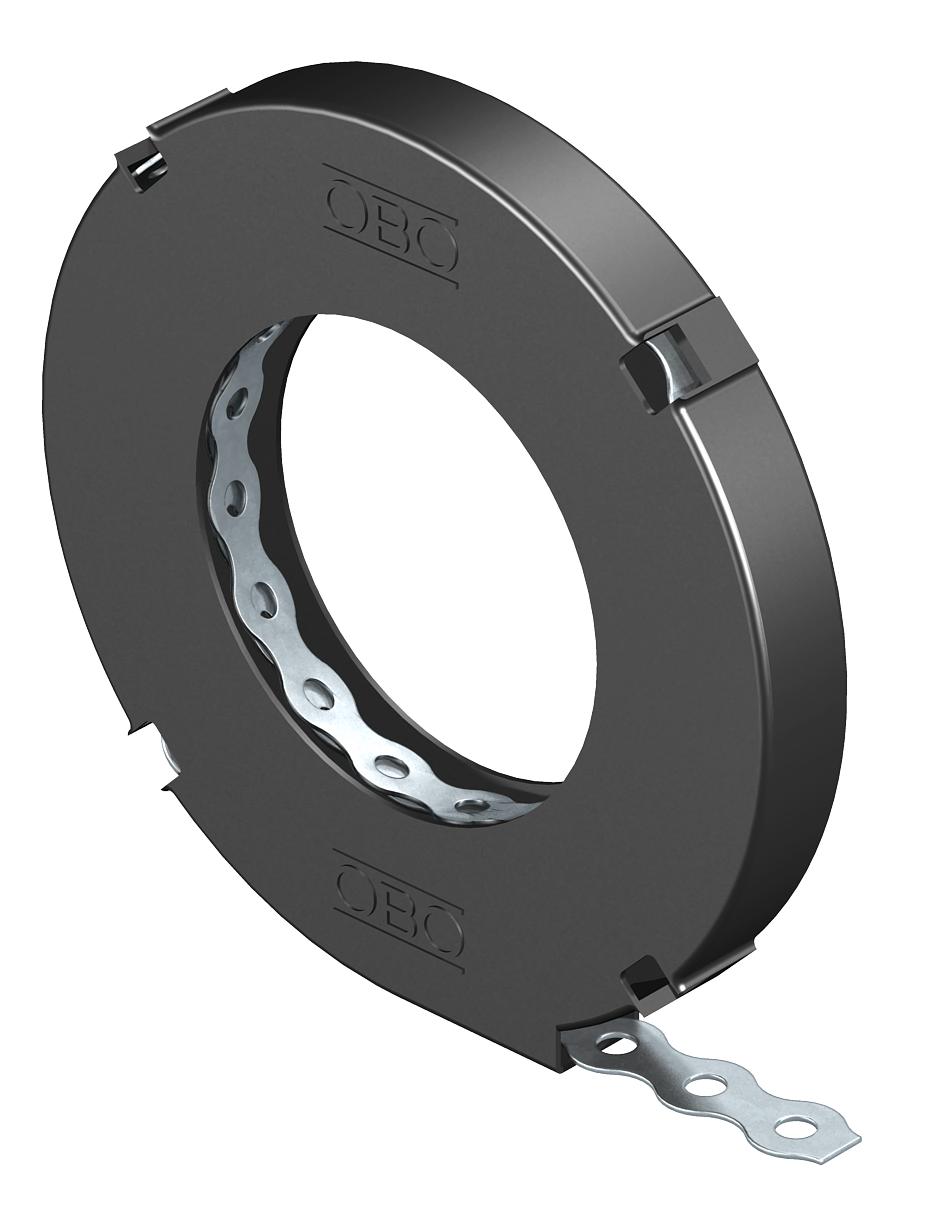

Product descriptionPerforated mounting strap in wave form, for the mounting of pipes on walls and ceiling, for example. In uncoiling box.
-
- Technical data
-
Technical data

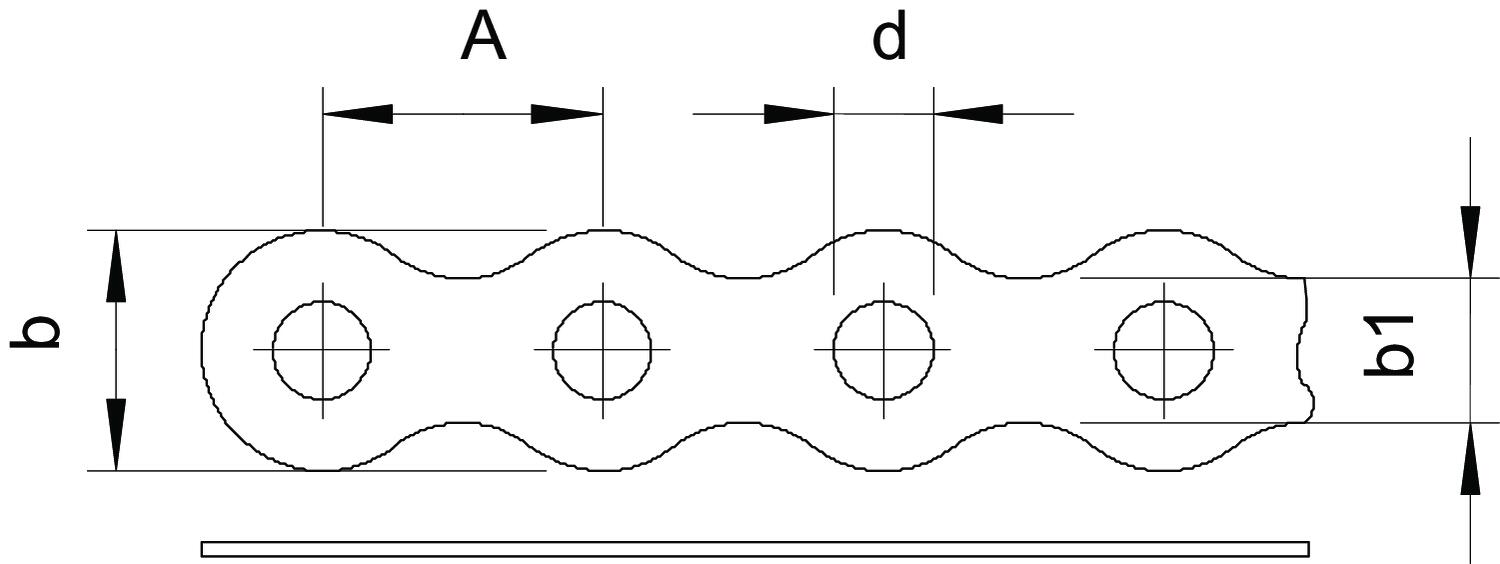

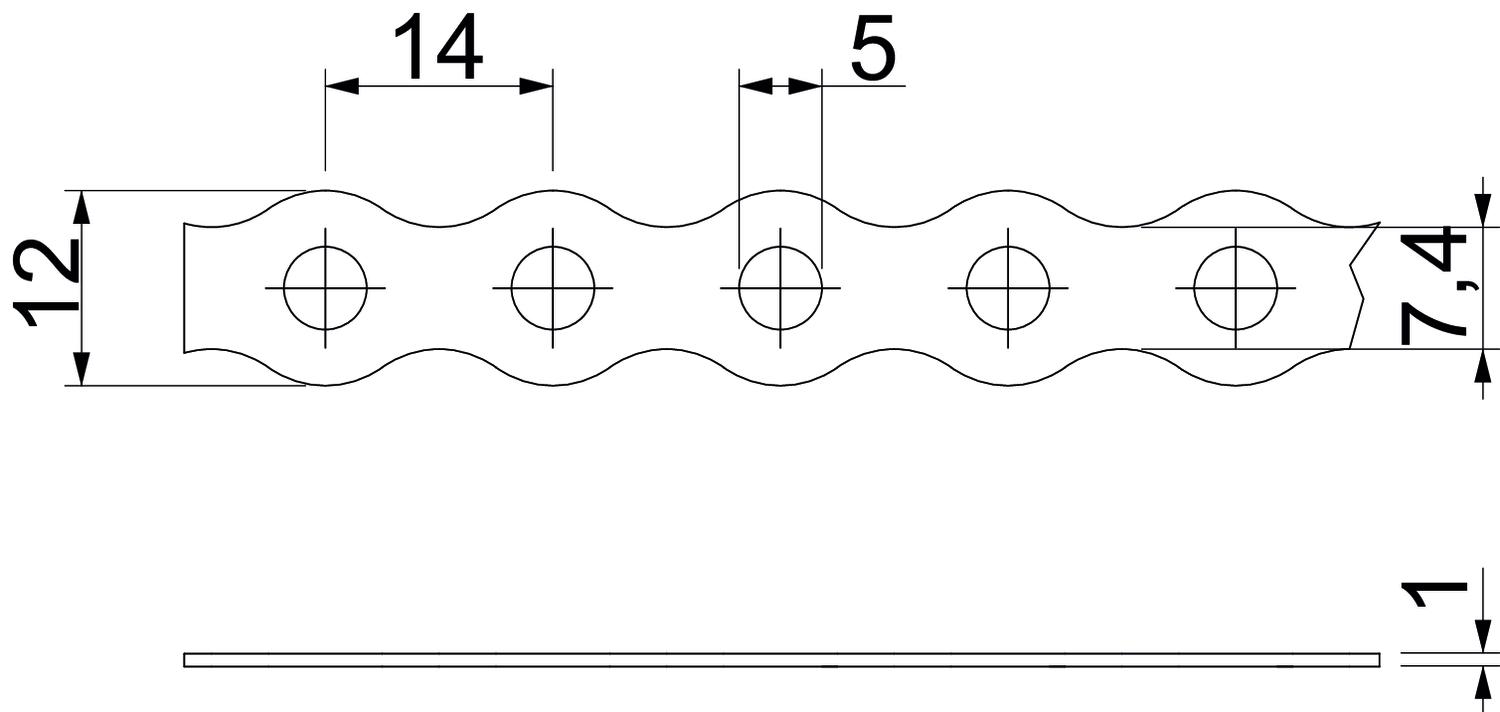

Dimension 12x1mm Dimension 12 x 1 Dimension A 14 mm Dimension b 12 mm Dimension b1 7,4 mm Dimension d 5 mm Hole diameter 5 mm In the holder yes Material Steel per rolls 10 Perforation Round Size I Surface Strip galvanized Type of band Ribbed Version for Perforated With perforation yes - All types
- Downloads
-
Data sheet 5062 I12 FS / 1475126 , 0.16MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 5062 I12 FS / 1475126 , 0.71MB , pdfREACH Declaration of conformity 5062 I12 FS / 1475126 , 0.12MB , pdfRoHS Declaration of conformity 5062 I12 FS / 1475126 , 0.12MB , pdf
