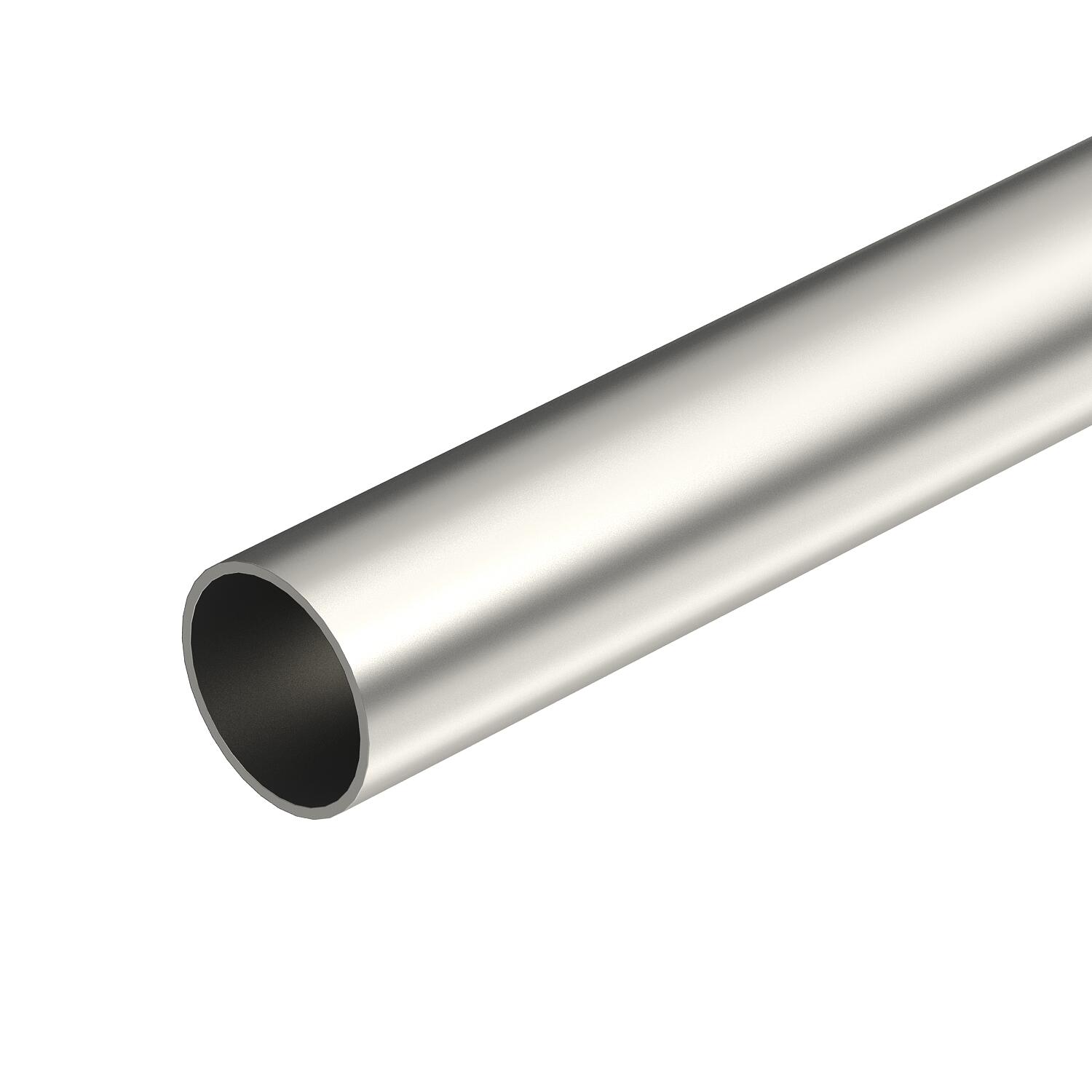

Stainless steel pipe, V4A

Item no. 2046750 | EAN 4012195923886

Item no. / Types

Dimension m (mm)

Product description

Product description

Electrical installation pipe without threaded ends to EN 61386-1 for mechanical protection of cables. With burr-free inner wall. Corrosion protection class 4 (high).

Technical data

Technical data

Brushed surface	yes
Cavity wall installation	yes
Classification code	55571
Concealed	yes
Concrete installation	yes
Connection 1, installation pipe	Pipe end
Connection 2, installation pipe	Pipe end
Dimension	Ø16, 3000mm
Installation in the earth	yes
Installation on wood	yes
Installation outdoors	yes

Machines and system installation	yes
Material	Stainless steel 1.4571
Permitted temperature range, max.	400 °C
Permitted temperature range, min.	-45 °C
Pipe version	Rigid without thread
Polished surface	no
Surface	Bright, treated
Surface-mounted	yes
Underfloor installation (bitumen, hot asphalt)	yes
Underfloor installation (screed)	yes
With sleeve	no

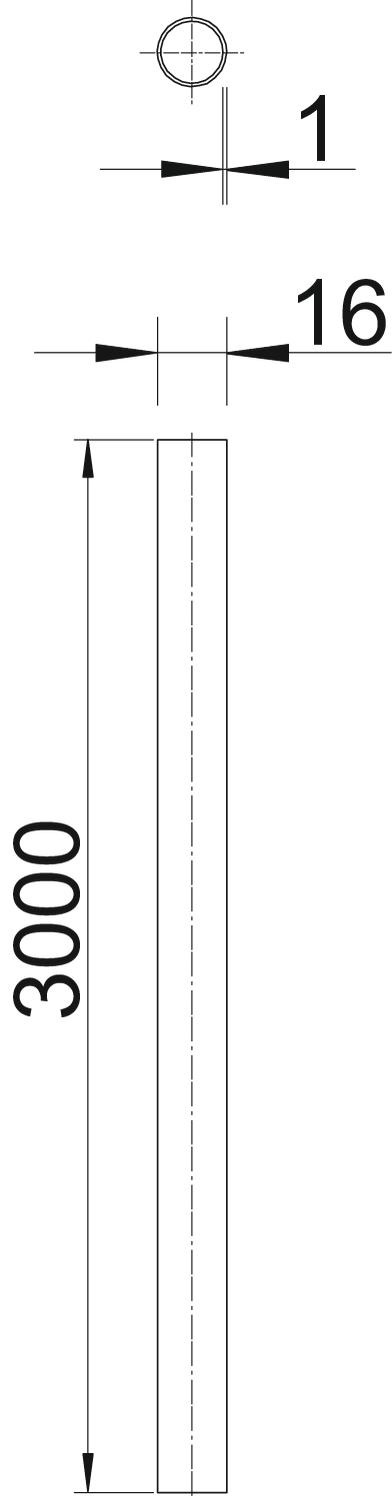

Dimensions

Dimension D	16 mm
Dimension L	3000 mm
Dimension m (mm)	M16

Dimension t	1 mm
Length	3000 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	0,627 kg CO2e / 1 Meter
CO₂ Footprint (GWP)	0,627 kg CO₂e
Declared Unit (LCA)	Metres

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-14T00:00:00.000+0200

All types

All types

Types	Dimension m (mm)	Item no.	Quantity	SSU
S16W A4	M16	2046750	m	15 m
S20W A4	M20	2046751	m	15 m
S25W A4	M25	2046752	m	15 m
S32W A4	M32	2046753	m	15 m
S40W A4	M40	2046754	m	9 m
S50W A4	M50	2046755	m	9 m
S63W A4	M63	2046756	m	9 m

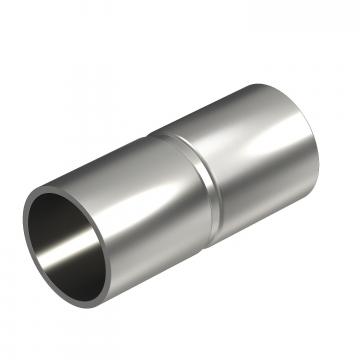

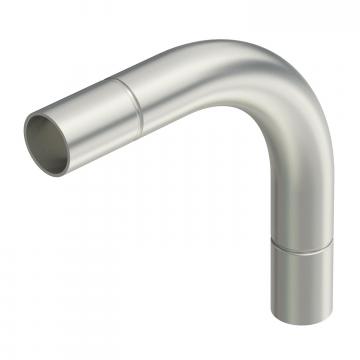

Accessories
