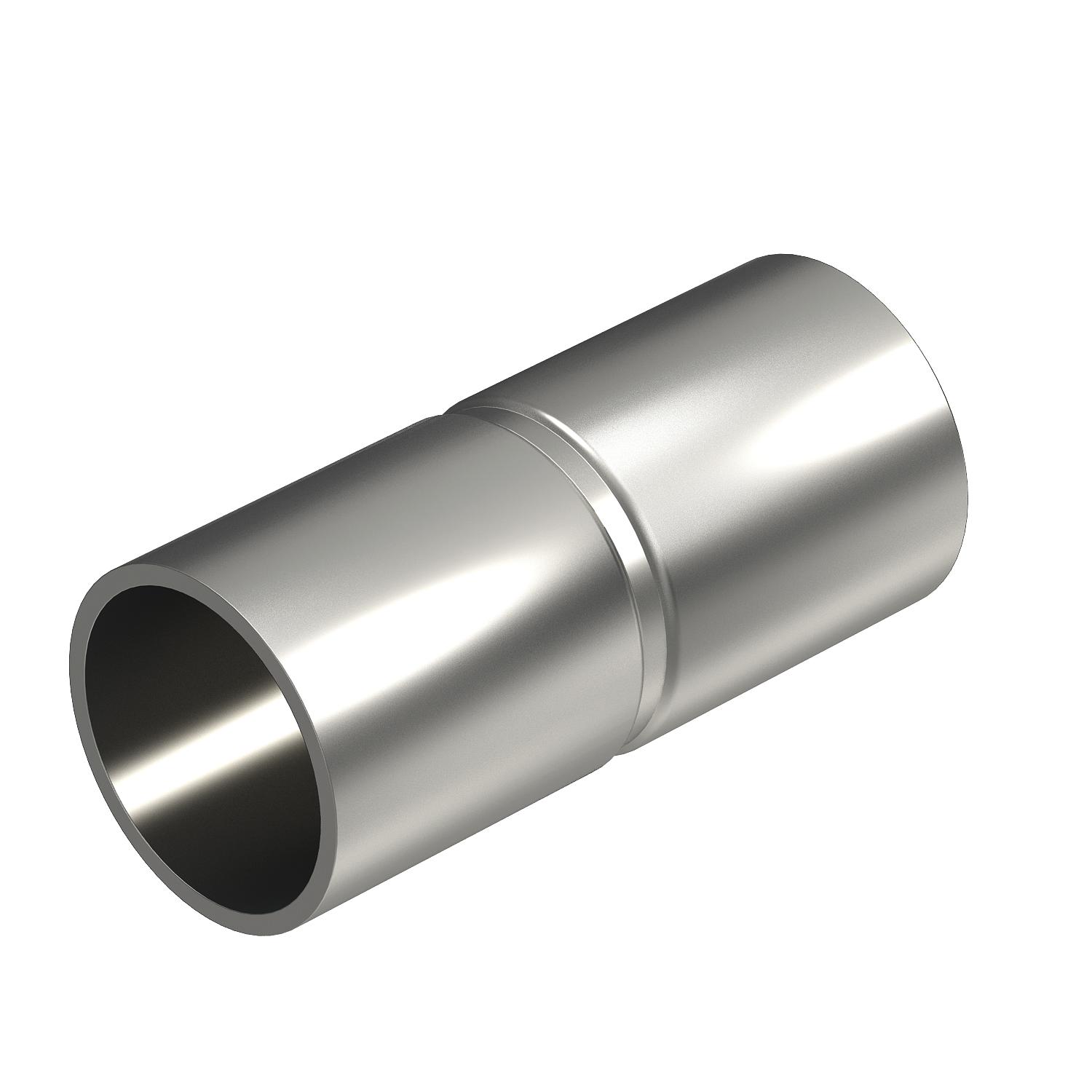

Stainless steel sleeve V4A
Item no. 2046771 | EAN 4012195924258
- Product description
-
Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data
Brushed surface yes Dimension Ø20mm for pipe diameter 20 mm Halogen-free yes Material Stainless steel 1.4571 Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 20 Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no Dimensions
Dimension d 20,2 mm Dimension D 22,2 mm Dimension L 60 mm Dimension l 30 mm Dimension m (mm) M20 Dimension t 1 mm Length 60 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1839 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1839 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet SV20W A4 / 2046771 , 0.17MB , pdfEU declaration of conformity SV20W A4 / 2046771 , 0.10MB , pdfEU declaration of conformity EU declaration of conformity ,UK Declaration of Conformity SV20W A4 / 2046771 , 0.09MB , pdfREACH Declaration of conformity SV20W A4 / 2046771 , 0.12MB , pdfRoHS Declaration of conformity SV20W A4 / 2046771 , 0.12MB , pdf
