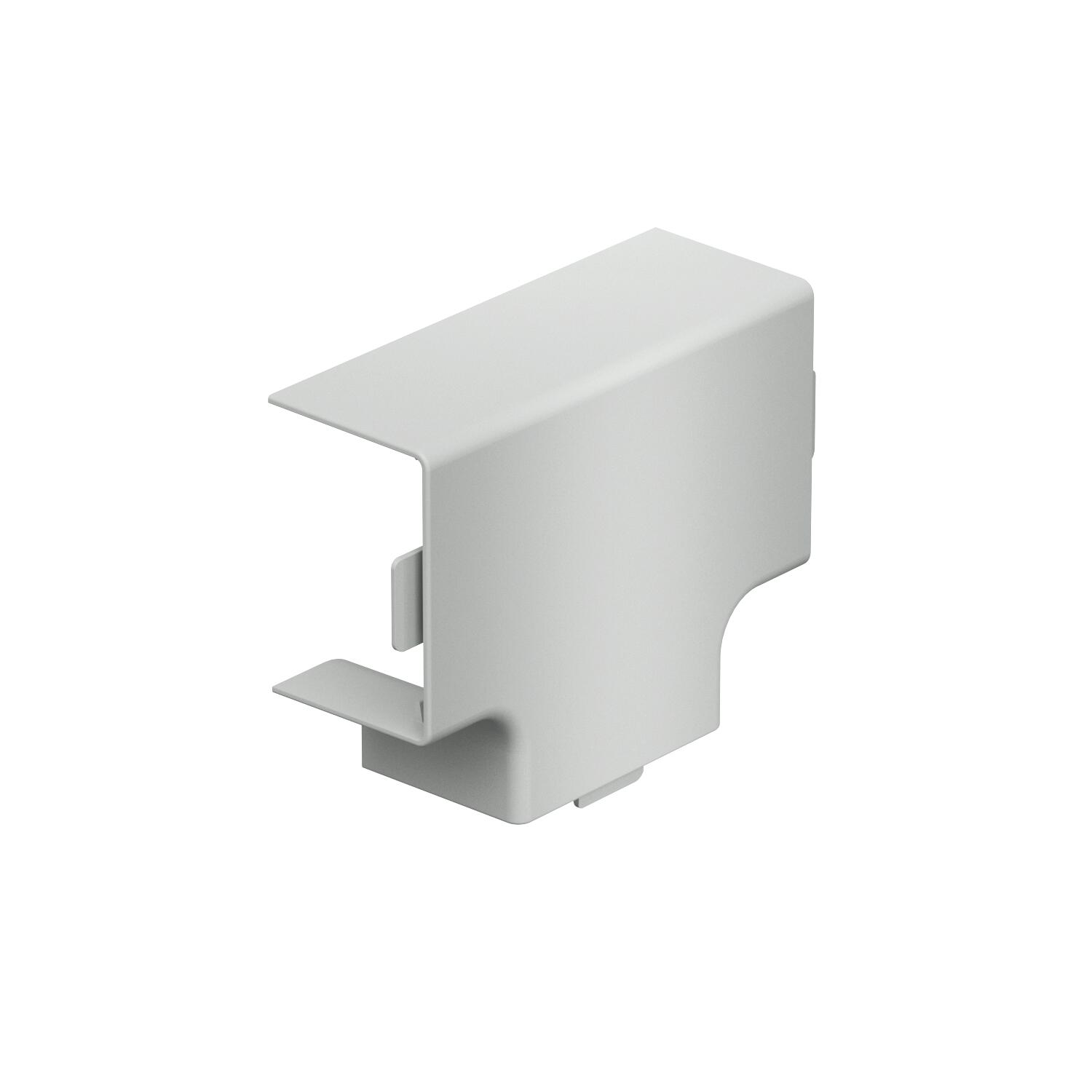

T and intersection cover, for trunking type WDK 30045
Item no. 6176076 | EAN 4012195815105
- Product description
-
Product descriptionT and intersection cover for changing the direction of the halogen-free WDK-H trunking.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Light grey; RAL 7035 Dimension 30x45mm Duct height, min. 45 mm Fastening type Lockable for duct dimension 30 x 45 Halogen-free yes Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Trunking depth 30 mm Version for Hood fitting Dimensions

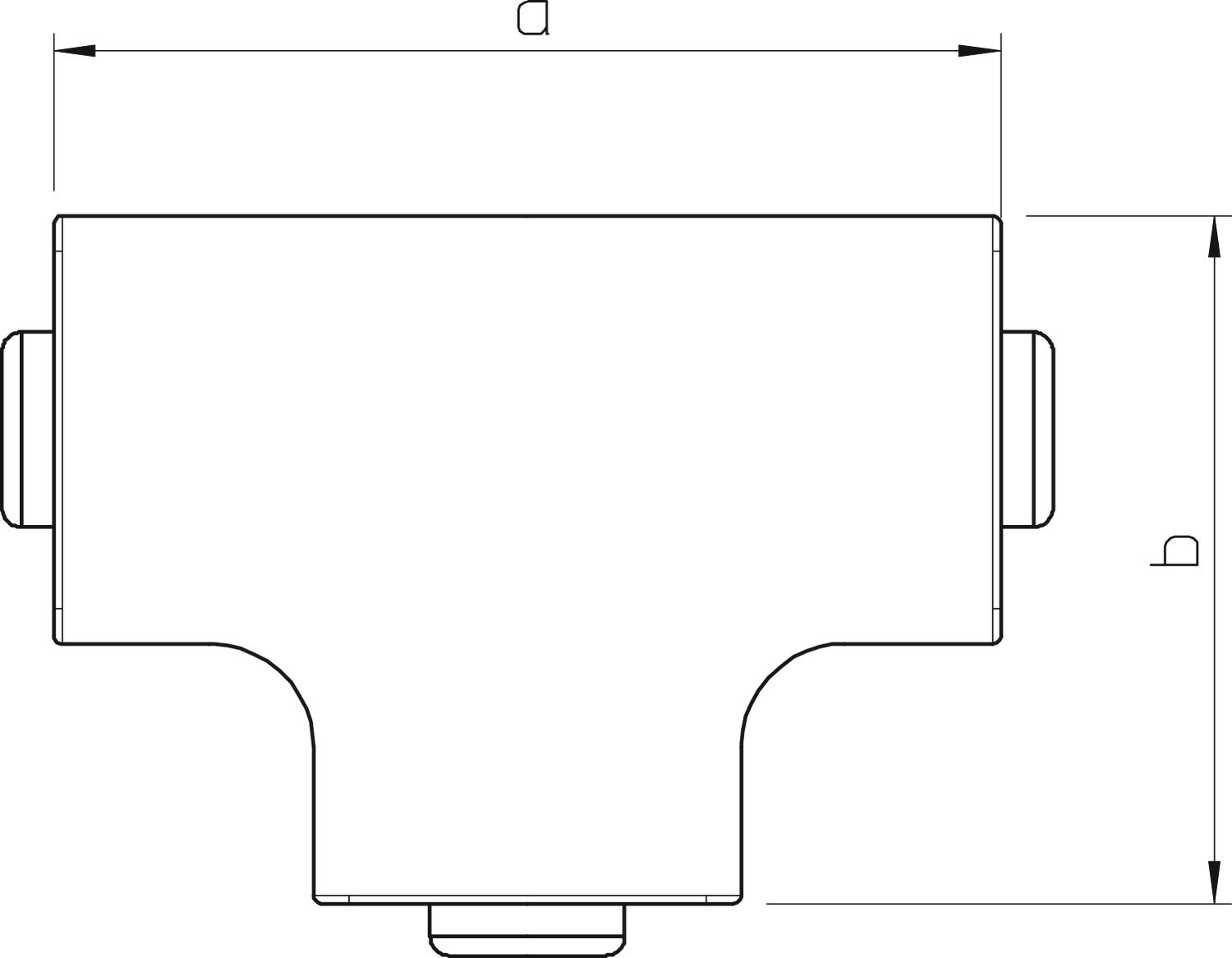

Dimension a 88 mm Dimension b 68 mm Height 30 mm Length 88 mm Width 45 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,128 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,128 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDKH-T30045LGR / 6176076 , 0.19MB , pdfSafety data sheet WDKH-T30045LGR / 6176076 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-T30045LGR / 6176076 , 0.10MB , pdfUK Declaration of Conformity WDKH-T30045LGR / 6176076 , 0.09MB , pdfREACH Declaration of conformity WDKH-T30045LGR / 6176076 , 0.12MB , pdfRoHS Declaration of conformity WDKH-T30045LGR / 6176076 , 0.12MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
