T piece 110 FS

Item no. 6219388 | EAN 4012196685950

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

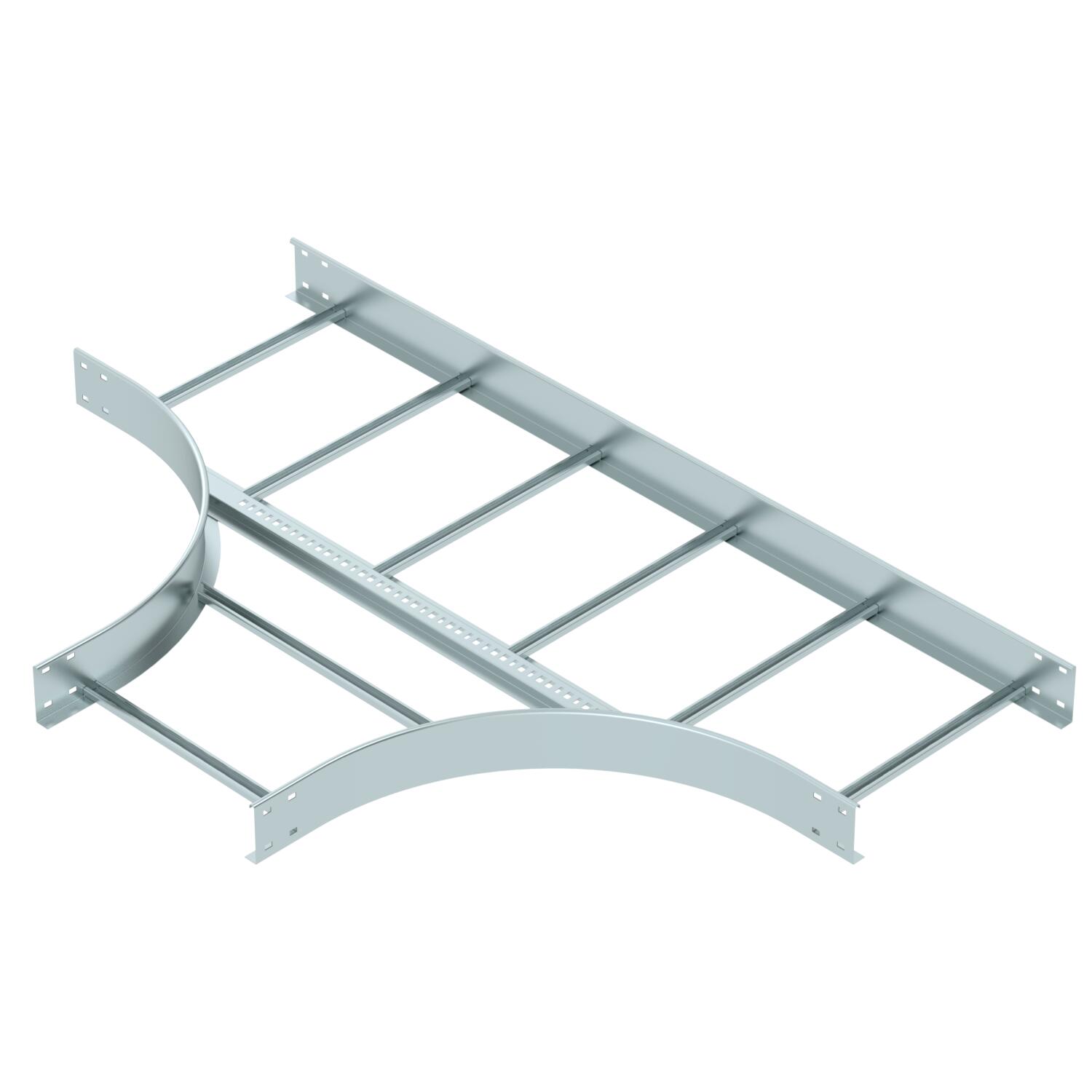

T piece to create a horizontal branch, fittings for cable ladders of side height110 mm. With connector perforation. Can be used in indoor areas. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.

Technical data

Technical data

Colour	zinc
Dimension	110x500
Maintain electrical functions	no
Material	Steel
Rail thickness	1,5 mm
Rustproof steel, pickled	no

Side rail version	Flat profile
Surface	Strip galvanised
Type	Exit symmetrical
Version of the rungs	Profile unperforated
Wide-span version	no

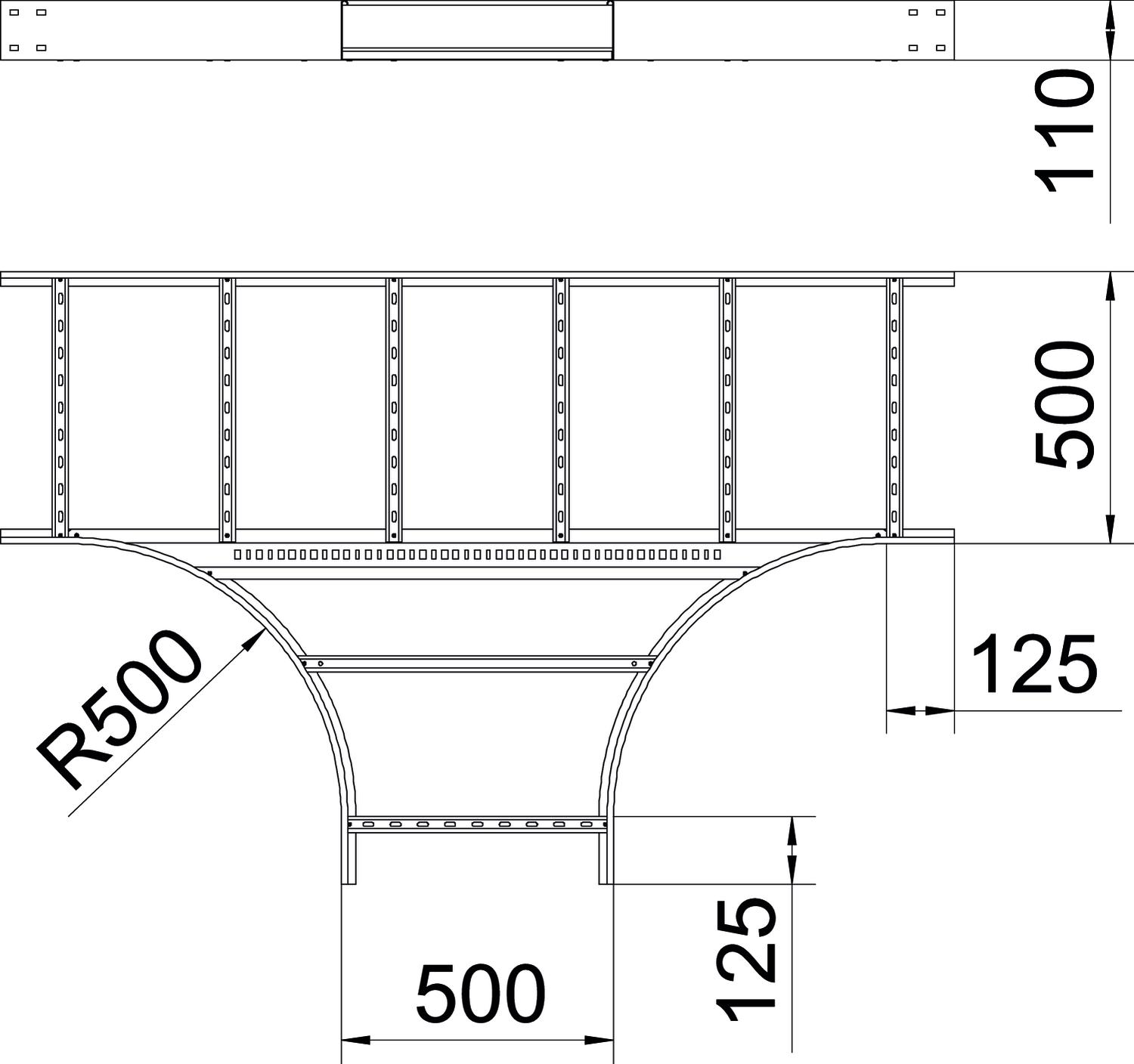

Dimensions

Dimension B	500 mm
Dimension R	500 mm

Height	110 mm
Width	500 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate	32,8446 kg CO2e / 1 Piece
CO₂ Footprint (GWP)	32,8446 kg CO₂e
Declared Unit (LCA)	Units

Declared Unit Quantity (LCA)	1
Determination date of CO2 value	2025-05-27T00:00:00.000+0200

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LT 1120 R5 FS	200 mm	1.5 mm	6219382	piece	1 piece
LT 1130 R5 FS	300 mm	1.5 mm	6219384	piece	1 piece
LT 1140 R5 FS	400 mm	1.5 mm	6219386	piece	1 piece
LT 1150 R5 FS	500 mm	1.5 mm	6219388	piece	1 piece
LT 1160 R5 FS	600 mm	1.5 mm	6219390	piece	1 piece
