T piece 60 FT
Item no. 6213880 | EAN 4012196685875
- Product description
-

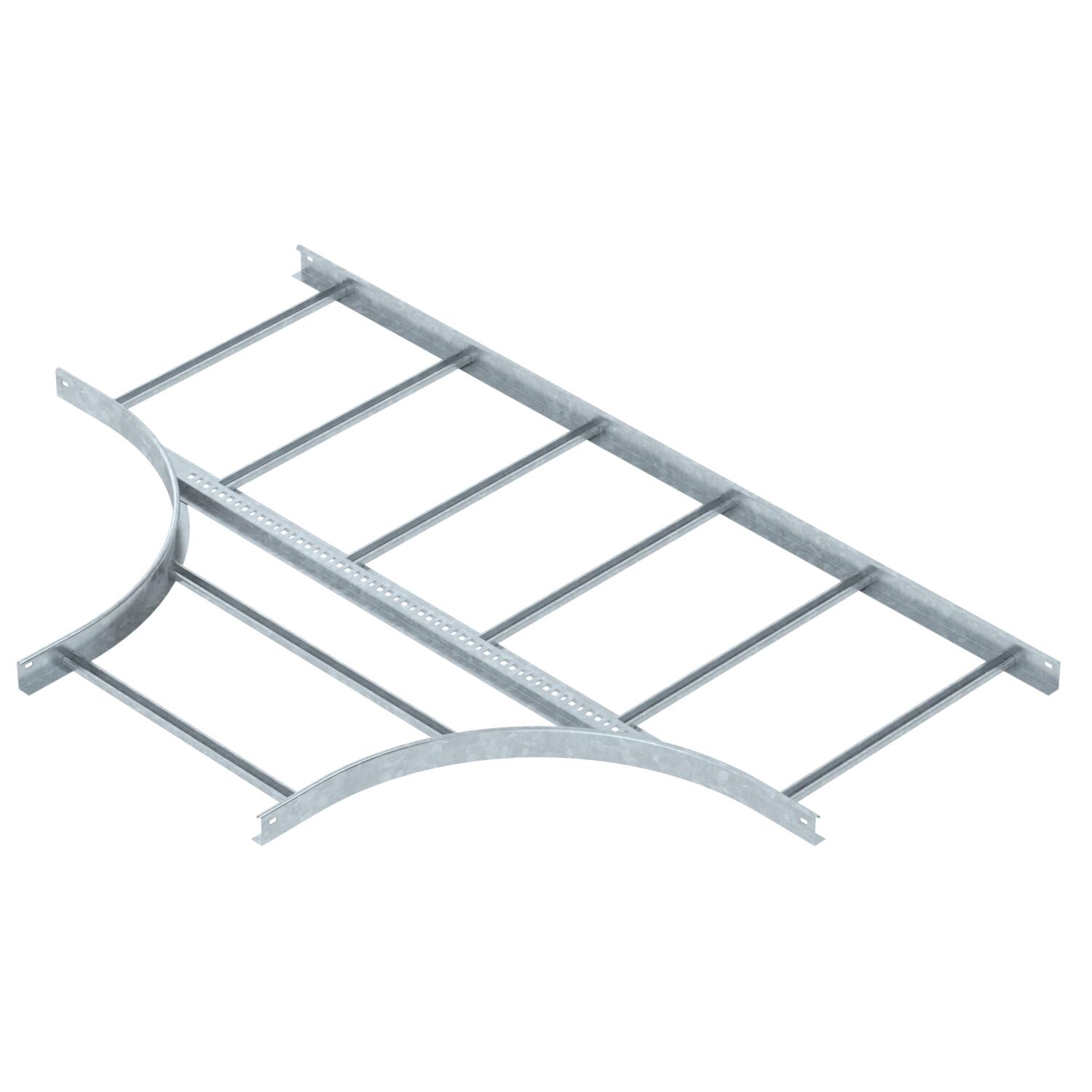

Product descriptionT piece, horizontal, for all cable ladder types of 60 mm side height.
Connectors should be ordered separately and in the appropriate quantity.
-
- Technical data
-
Technical data
Colour zinc Dimension 60x600 Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Dimensions

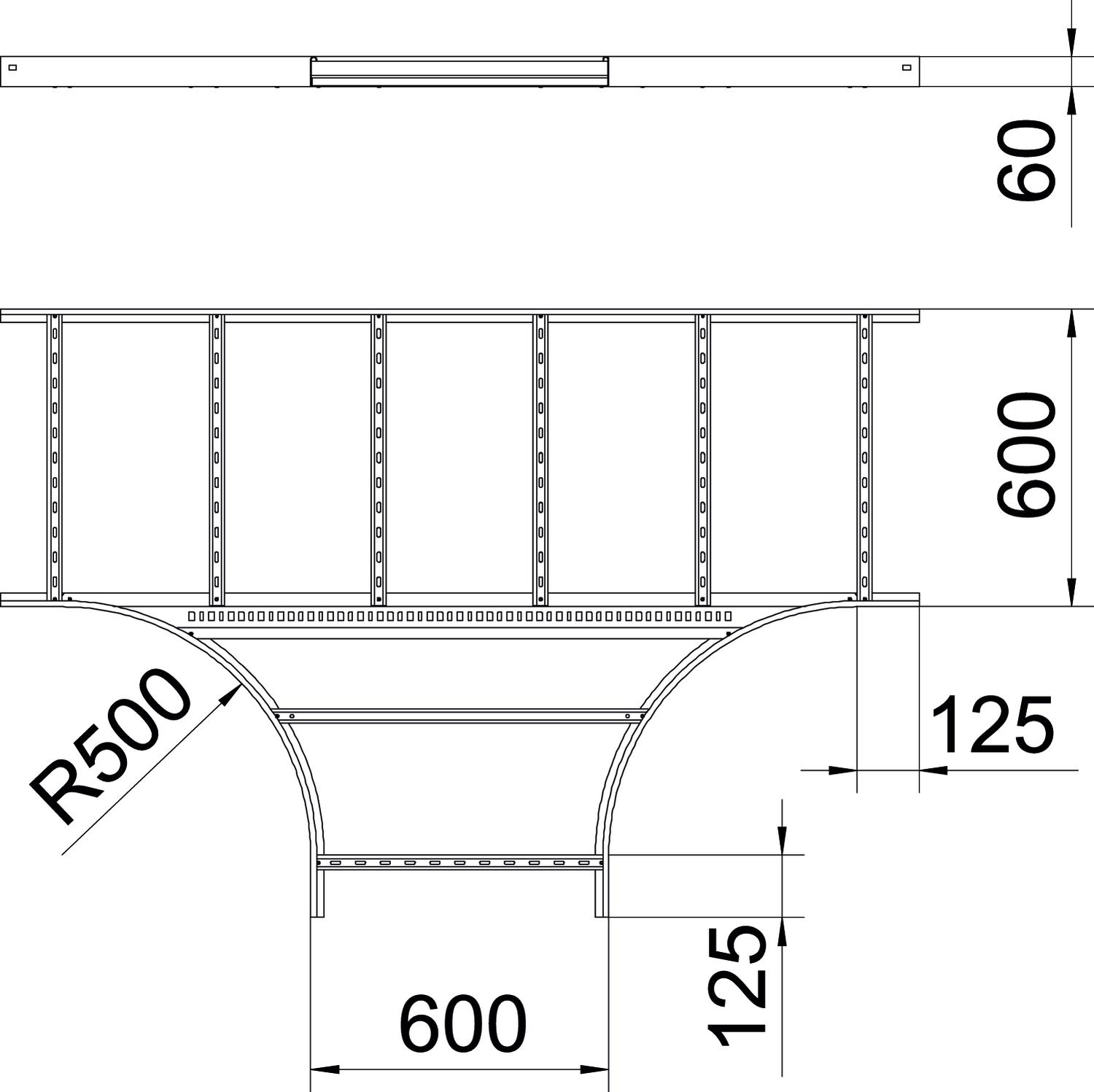

Dimension B 600 mm Dimension R 500 mm Height 60 mm Width 600 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 27,1904 kg CO2e / 1 Piece CO₂ Footprint (GWP) 27,1904 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 60 FT 6208843 10 piece - Downloads
-
Data sheet LT 660 R5 FT / 6213880 , 0.22MB , pdfEU declaration of conformity LT 660 R5 FT / 6213880 , 0.10MB , pdfUK Declaration of Conformity LT 660 R5 FT / 6213880 , 0.09MB , pdfREACH Declaration of conformity LT 660 R5 FT / 6213880 , 0.12MB , pdfRoHS Declaration of conformity LT 660 R5 FT / 6213880 , 0.12MB , pdfMounting instructions Cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
