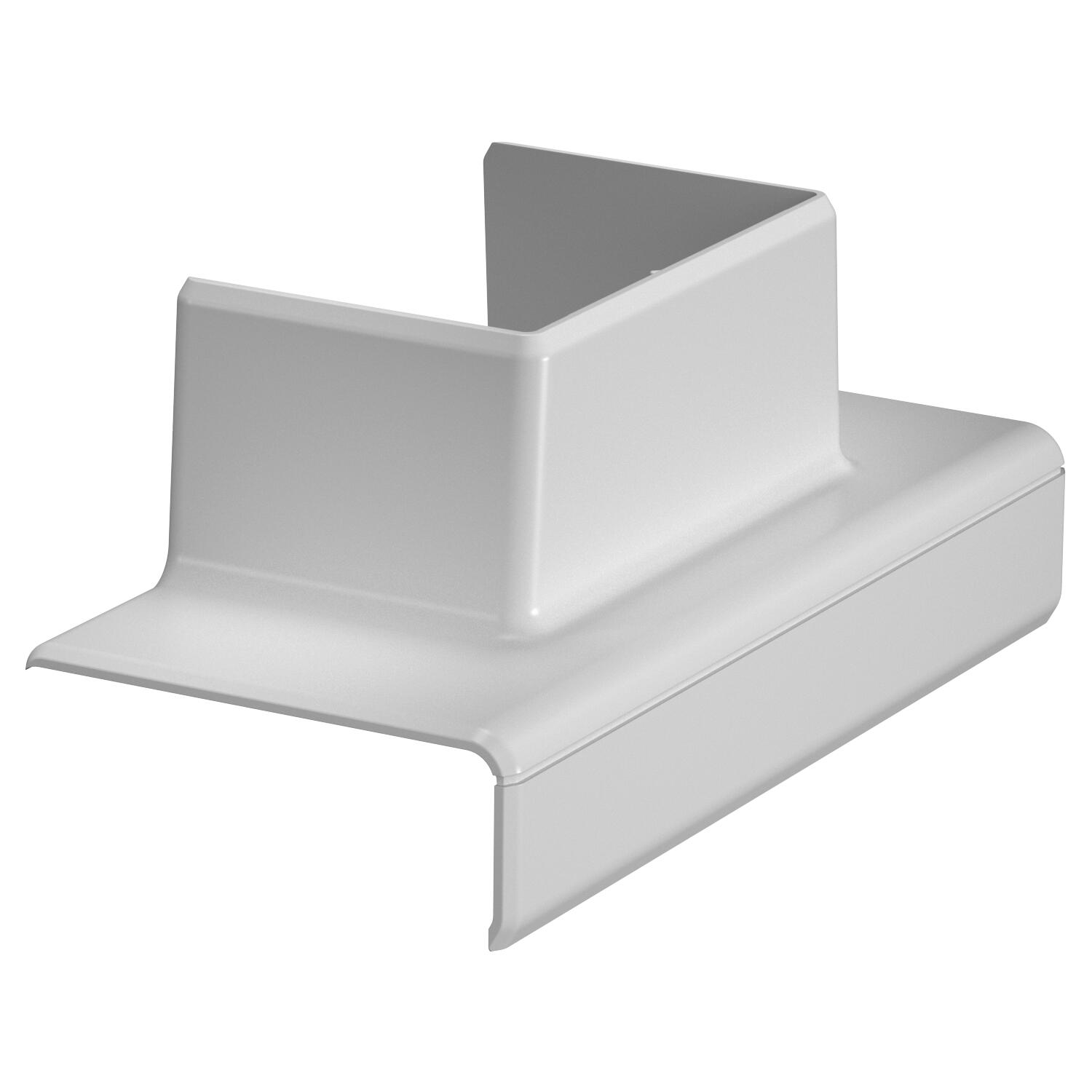

T piece adapter on WDK 40060
Item no. 6113322 | EAN 4012196419883
- Product description
-
Product descriptionT piece adapter to create a 90° junction from the system size Rapid 45-2 53130 to a cable trunking WDK40060.
-
- Technical data
-
Technical data

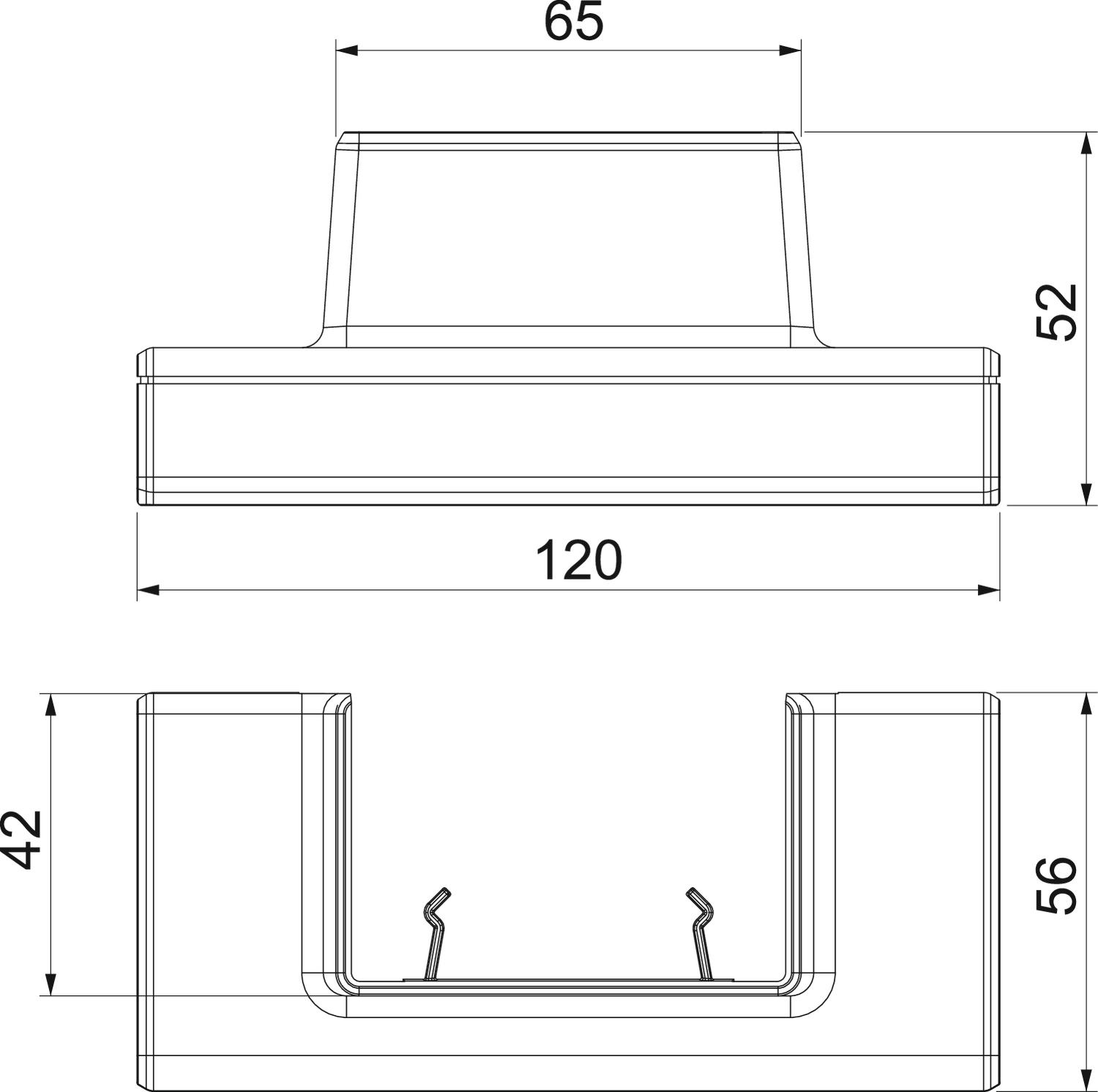

Antibacterial treatment no Cable retaining clip no Colour Light grey; RAL 7035 Cover mounting type Cross-over Dimension 120x52x56 Duct connector no for duct width 130 mm for trunking height 53 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical no Version for Hood fitting Width of the branch 60 mm Dimensions
Height 55,5 mm Length 120 mm Width 52 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,1735 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,1735 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet GK-TA WDK 2LGR / 6113322 , 0.20MB , pdfEU declaration of conformity GK-TA WDK 2LGR / 6113322 , 0.10MB , pdfREACH Declaration of conformity GK-TA WDK 2LGR / 6113322 , 0.12MB , pdfRoHS Declaration of conformity GK-TA WDK 2LGR / 6113322 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfMounting instructions Mounting instructions, T piece adapter GK-TA WDK..., GK-TR... , 0.14MB , pdfNo invitation to tender text is available for this product.
