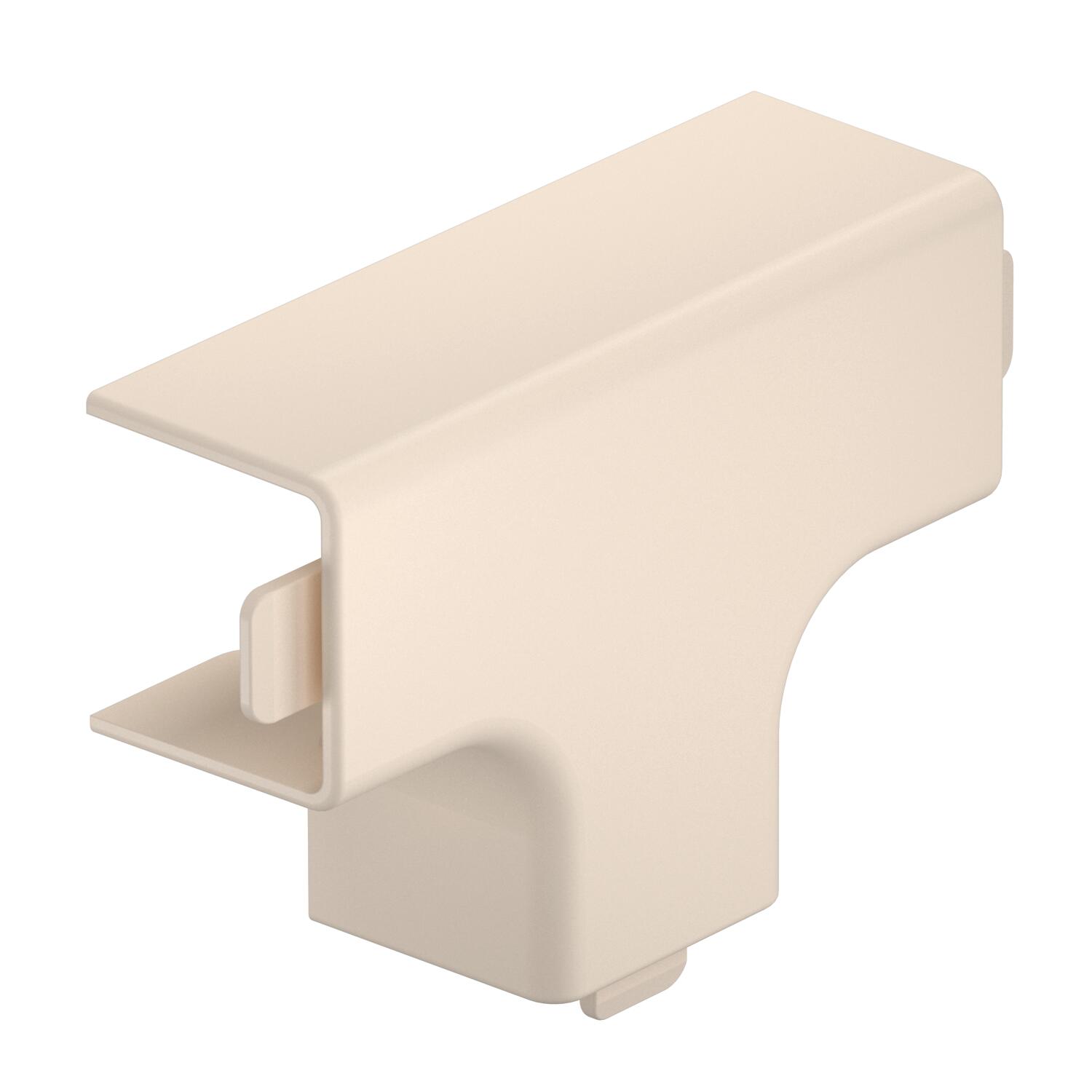

T piece cover, for trunking type WDK 20020
Item no. 6161901 | EAN 4012196580453
- Product description
-
Product descriptionT piece cover for changing the direction of the WDK trunking.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Dimension 20x20mm Fastening type Lockable for duct dimension 20 x 20 Halogen-free no Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Trunking depth 20 mm Version for Hood fitting Dimensions

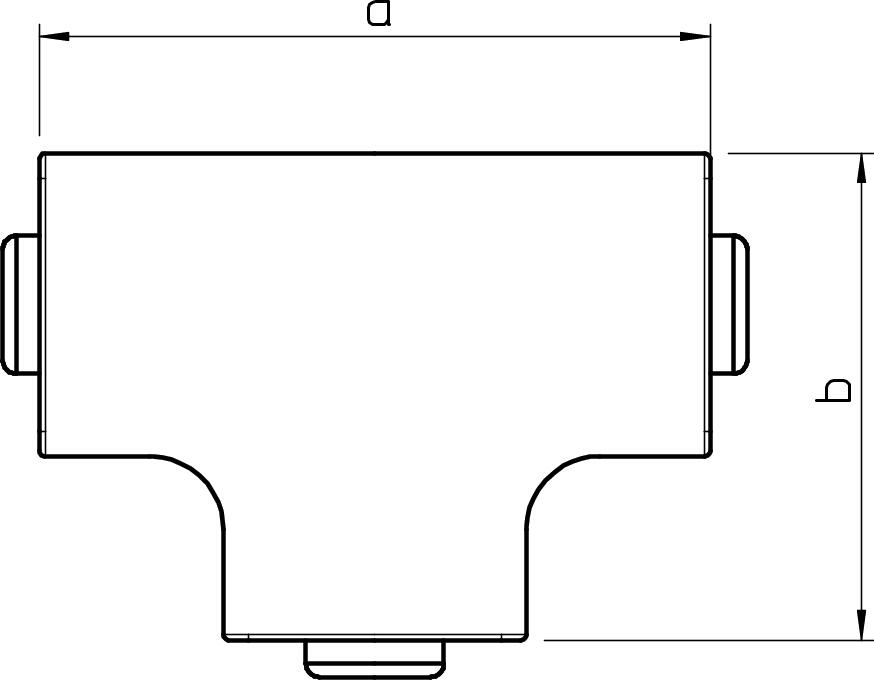

Dimension a 57 mm Dimension b 39 mm Dimension H 20 mm Height 20 mm Length 57 mm Width 20 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0253 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0253 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet WDK HT20020CW / 6161901 , 0.18MB , pdfSafety data sheet WDK HT20020CW / 6161901 , 0.02MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDK HT20020CW / 6161901 , 0.10MB , pdfUK Declaration of Conformity WDK HT20020CW / 6161901 , 0.09MB , pdfREACH Declaration of conformity WDK HT20020CW / 6161901 , 0.12MB , pdfRoHS Declaration of conformity WDK HT20020CW / 6161901 , 0.13MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
