T piece, for cable trunking type LKM 60200
Item no. 6248225 | EAN 4012196317950
- Product description
-
Product descriptionT piece including cover for changing the direction of the LKM trunking.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Colour zinc Departing height 64 mm Departing width 200 mm Dimension 60x200mm Duct height, min. 64 mm Fastening type Base perforation for duct dimension 60 x 200 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanised Trunking depth 64 mm Version for Base and cover Dimensions

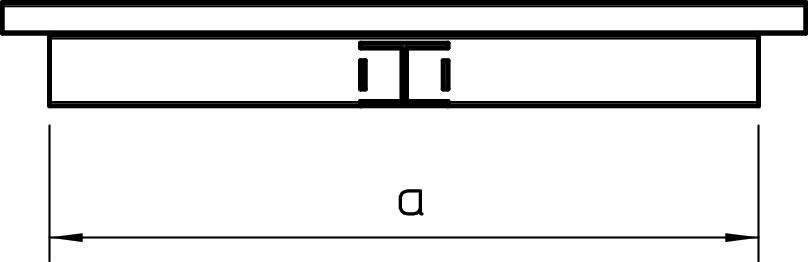

Dimension a 300 mm Height 64 mm Length 300 mm Width 200 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 3,5732 kg CO2e / 1 Piece CO₂ Footprint (GWP) 3,5732 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LKM T60200FS / 6248225 , 0.19MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM T60200FS / 6248225 , 0.10MB , pdfUK Declaration of Conformity LKM T60200FS / 6248225 , 0.09MB , pdfREACH Declaration of conformity LKM T60200FS / 6248225 , 0.12MB , pdfRoHS Declaration of conformity LKM T60200FS / 6248225 , 0.12MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
