T piece, for cable trunking type LKM 80080
Item no. 6248340 | EAN 4012195699057
- Product description
-
Product descriptionT piece including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Colour zinc Departing height 80 mm Departing width 80 mm Dimension 80x80mm Duct height, min. 80 mm Fastening type Base perforation for duct dimension 80 x 80 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanised Trunking depth 80 mm Version for Base and cover Dimensions

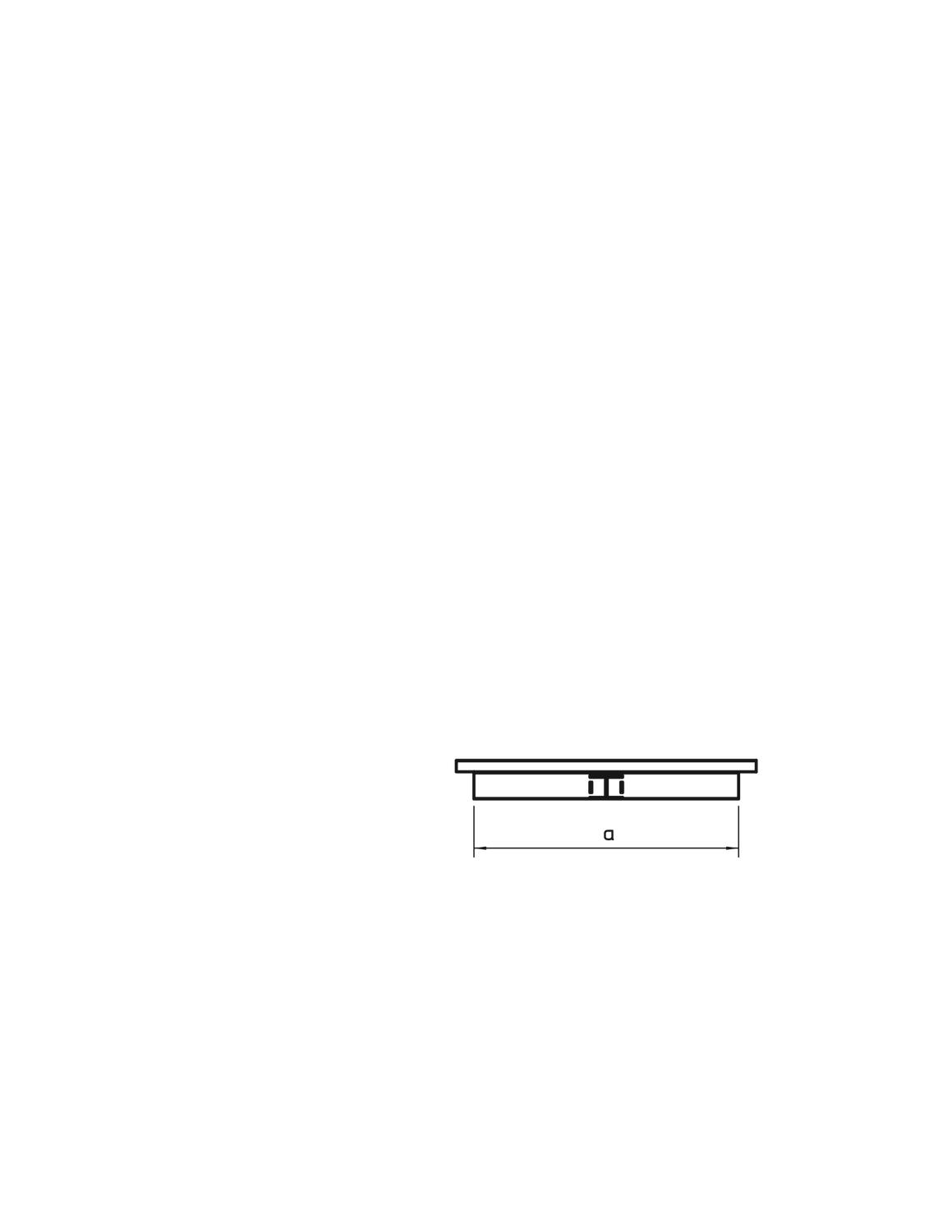

Dimension a 300 mm Height 80 mm Length 300 mm Width 80 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 2,5132 kg CO2e / 1 Piece CO₂ Footprint (GWP) 2,5132 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LKM T80080FS / 6248340 , 0.19MB , pdfEU declaration of conformity LKM T80080FS / 6248340 , 0.10MB , pdfUK Declaration of Conformity LKM T80080FS / 6248340 , 0.09MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
