Terminal strip set with screwless terminals for SDB 03 122 | 6 | 16 | 450
morepic-1 morepic-2

Terminal strip set with screwless terminals for SDB 03

Item no. 2008910 | EAN 4012196465866

2008910 / KLS-SDB 03S
122 mm
6 mm²
16 mm²
450 V
Product description
Product description
Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip the empty small distributors of the SDB 03... type series.

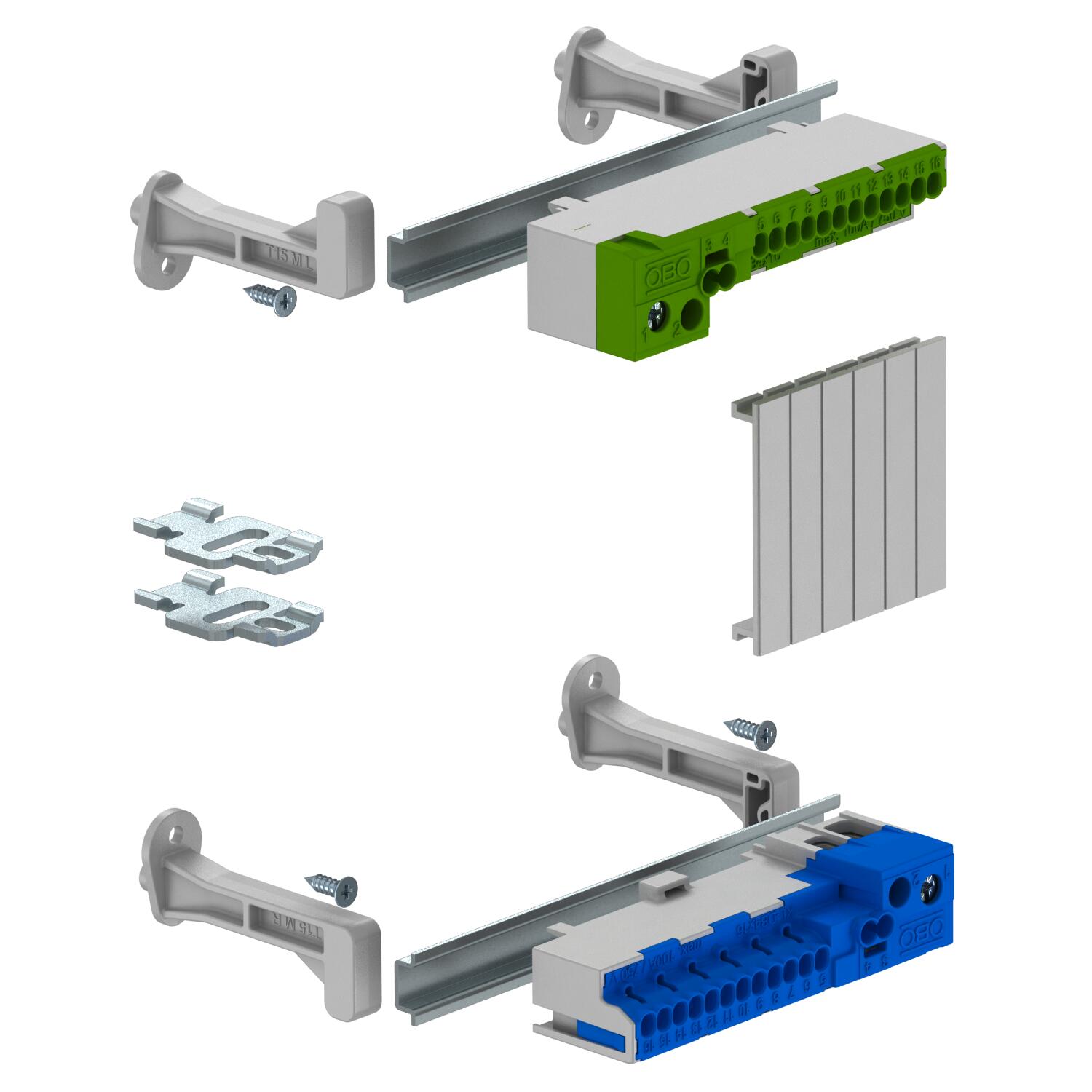

Mounting instructions; cover strip; hat rail with corresponding support and fastening material; one protective conductor terminal and one neutral conductor terminal each with two 16/25 mm² screw terminals and 2x 4 mm² and 12x 2.5 mm² screwless terminals

The terminal strip set with screwless terminals contains:

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Dimension 82x15x4
Nominal cross-section, max. 16 mm²
Nominal cross-section, min. 6 mm²
Nominal current 100 A
Nominal voltage 450 V

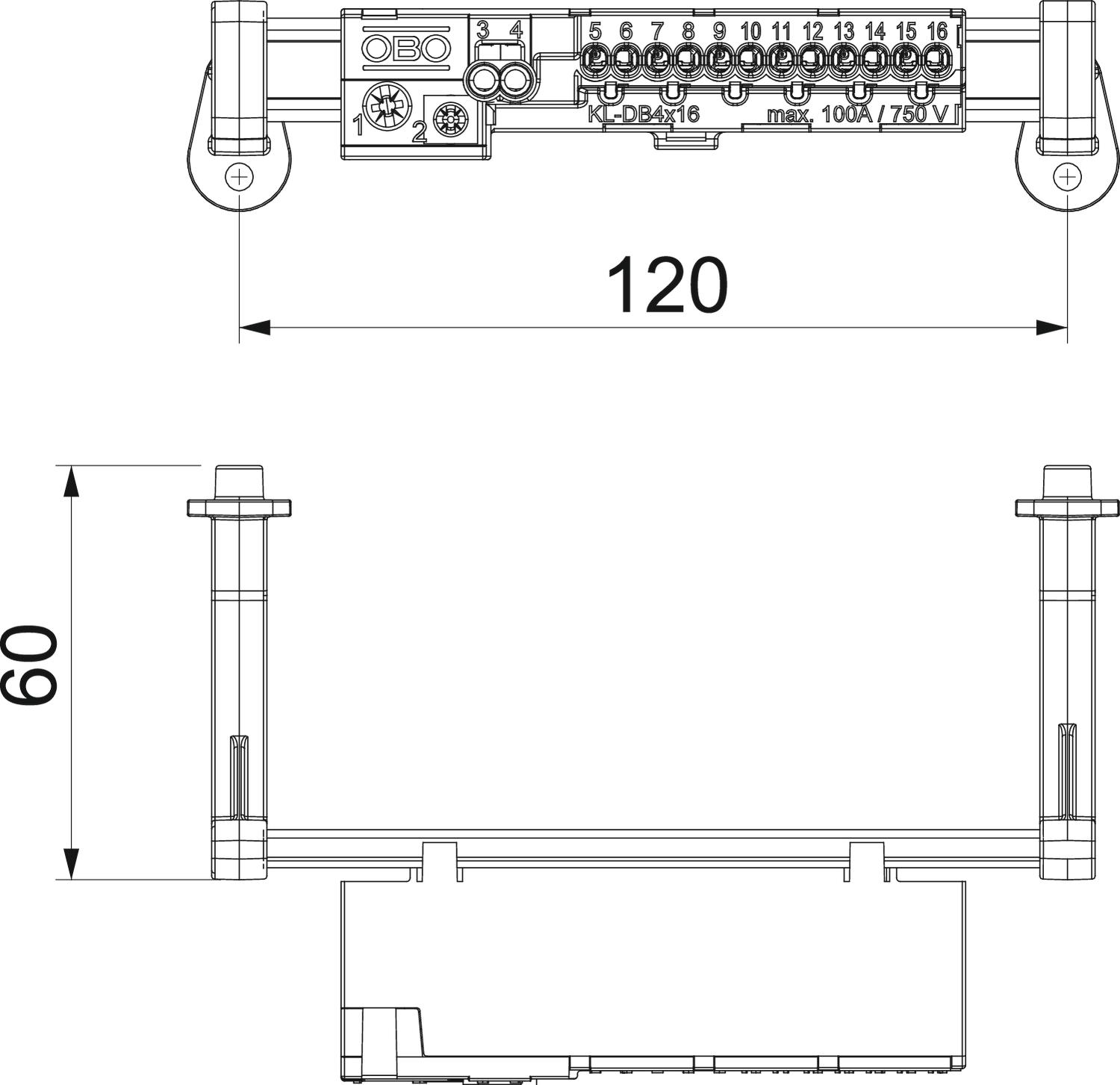

Dimensions

Height 4 mm
Length 122 mm
Width 15 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 1,0288 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 1,0288 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Item no. Quantity SSU
KLS-SDB 03S 122 mm 6 mm² 16 mm² 450 V 2008910
1 piece
