Terminal strip set with screwless terminals for SDB 12 184 | | |
morepic-1 morepic-2

Terminal strip set with screwless terminals for SDB 12

Item no. 2008922 | EAN 4012196465897

2008922 / KLS-SDB 12S
184 mm
Product description
Product description
Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip the empty small distributors of the SDB 12... type series.

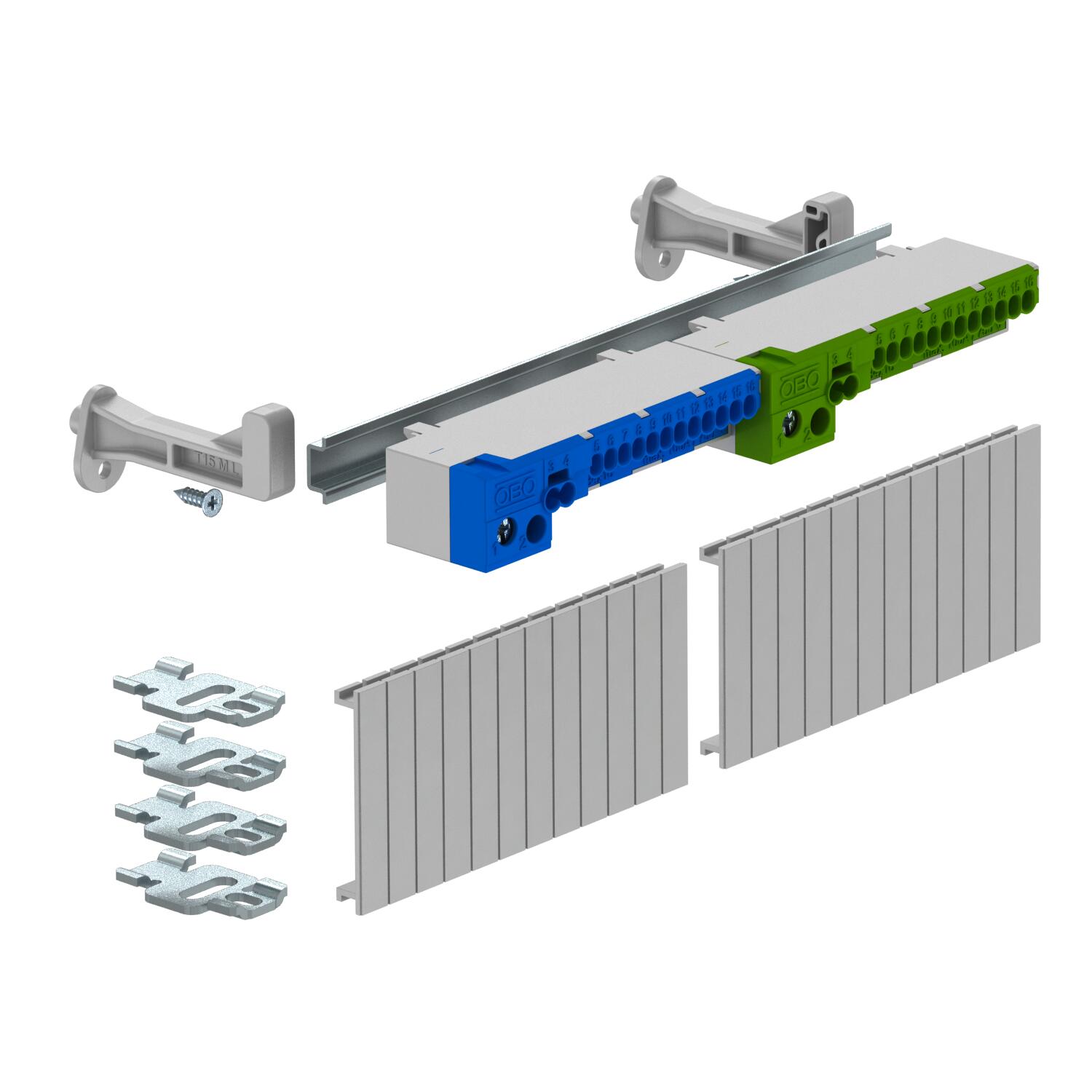

Mounting instructions; cover strip; hat rail with corresponding support and fastening material; one protective conductor terminal and one neutral conductor terminal each with two 16/25 mm² screw terminals and 2x 4 mm² and 12x 2.5 mm² screwless terminals

The terminal strip set with screwless terminals contains:

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Cross-section 2.5 mm²
Dimension 184x15x4

Dimensions

Height 4 mm
Length 184 mm
Width 15 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 1,6522 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 1,6522 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Item no. Quantity SSU
KLS-SDB 12S 184 mm 2008922
1 piece
Downloads

Download

Download

REACH Declaration of conformity KLS-SDB 12S / 2008922 , 0.09MB , pdf
Download
RoHS Declaration of conformity KLS-SDB 12S / 2008922 , 0.13MB , pdf
Download

KLS-SDB 12S / 2008922
Download
