Tilting anchor 100 | 16 | 0.7 | M6
morepic-1 morepic-2 morepic-3

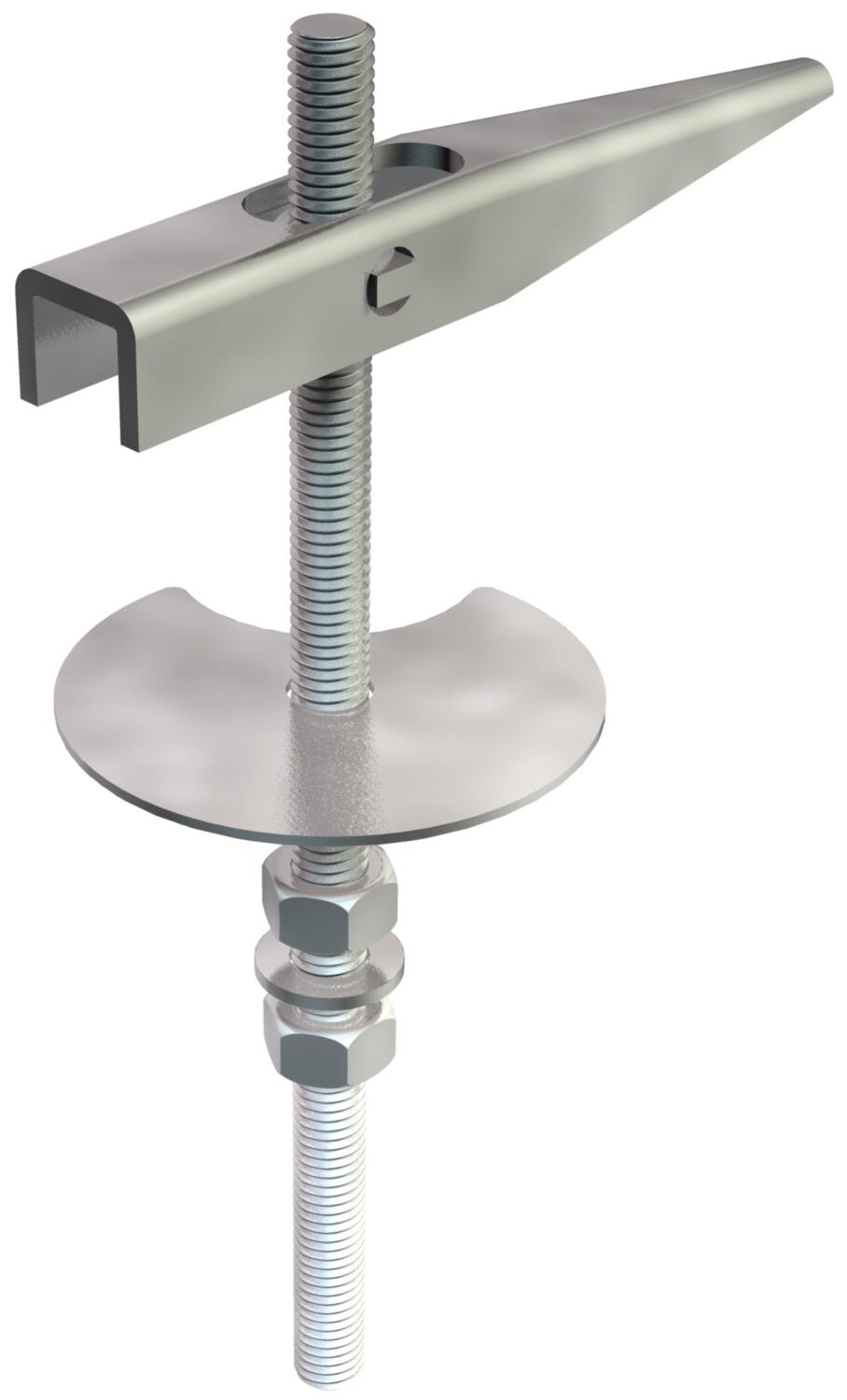

Tilting anchor

Item no. 3482014 | EAN 4012195310631

100 mm
Product description
Product description
Two washers and two hexagonal nuts, with threaded shank.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Breaking load 0,7 kN

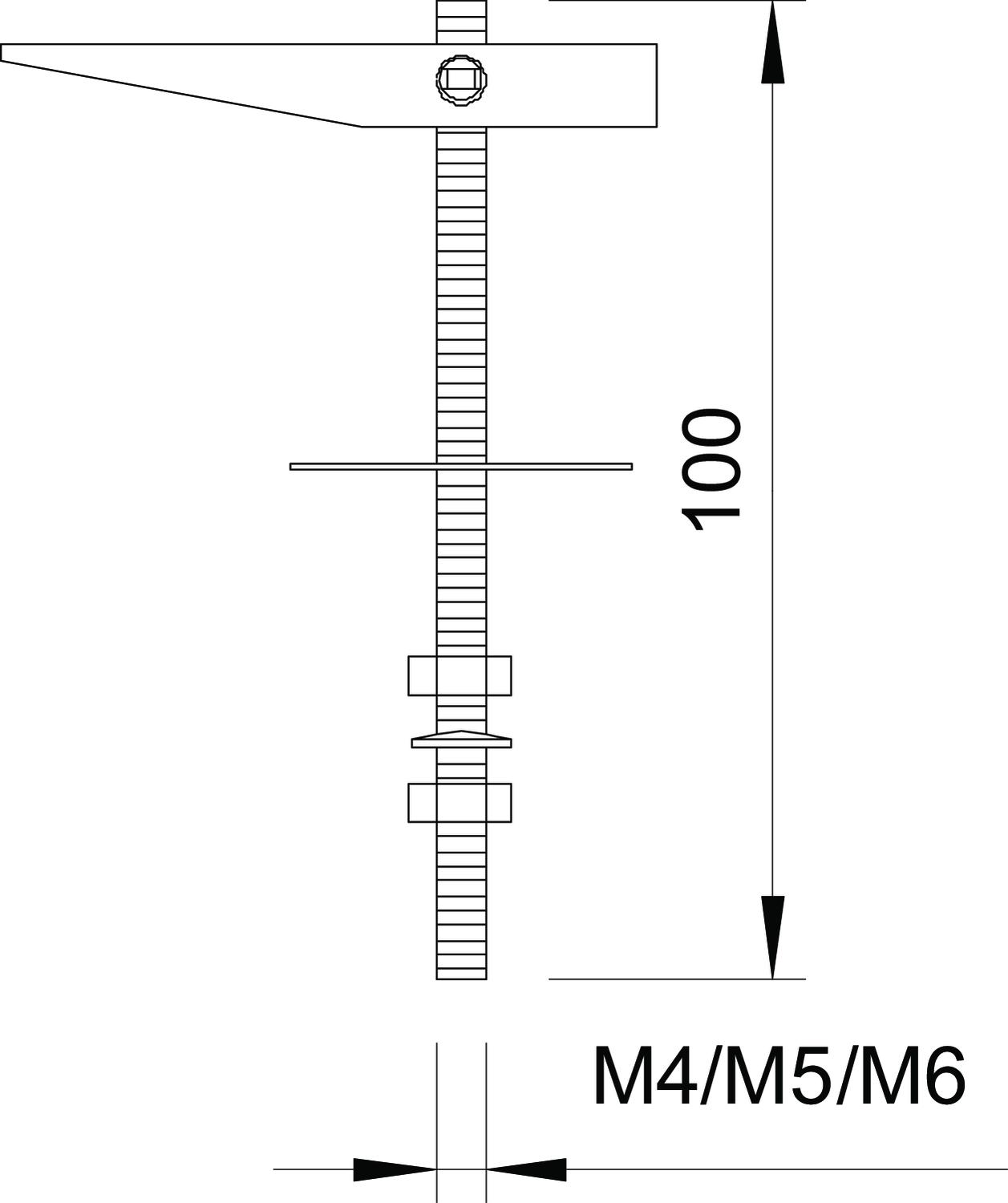

Dimension M6x100mm
Drill hole 16 mm
Drill hole diameter, min. 16 mm
Material Steel
Product series Anchors
ROHS-conformant yes
Surface Electrogalvanised
Thread M6
Thread type Metric
Version for With threaded shaft
With washer yes

Dimensions

Length 100 mm

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 0,1236 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 0,1236 kg CO₂e
Declared Unit (LCA) Units
Declared Unit Quantity (LCA) 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Length Drill hole diameter, min. Breaking load Thread Item no. Quantity SSU
453 M6x100 G 100 mm 16 mm 0.7 kN M6 3482014
50 piece
456 M5x100 G 100 mm 13 mm 0.7 kN M5 3482103
50 piece
458 M4x100 G 100 mm 13 mm 0.5 kN M4 3482154
50 piece
