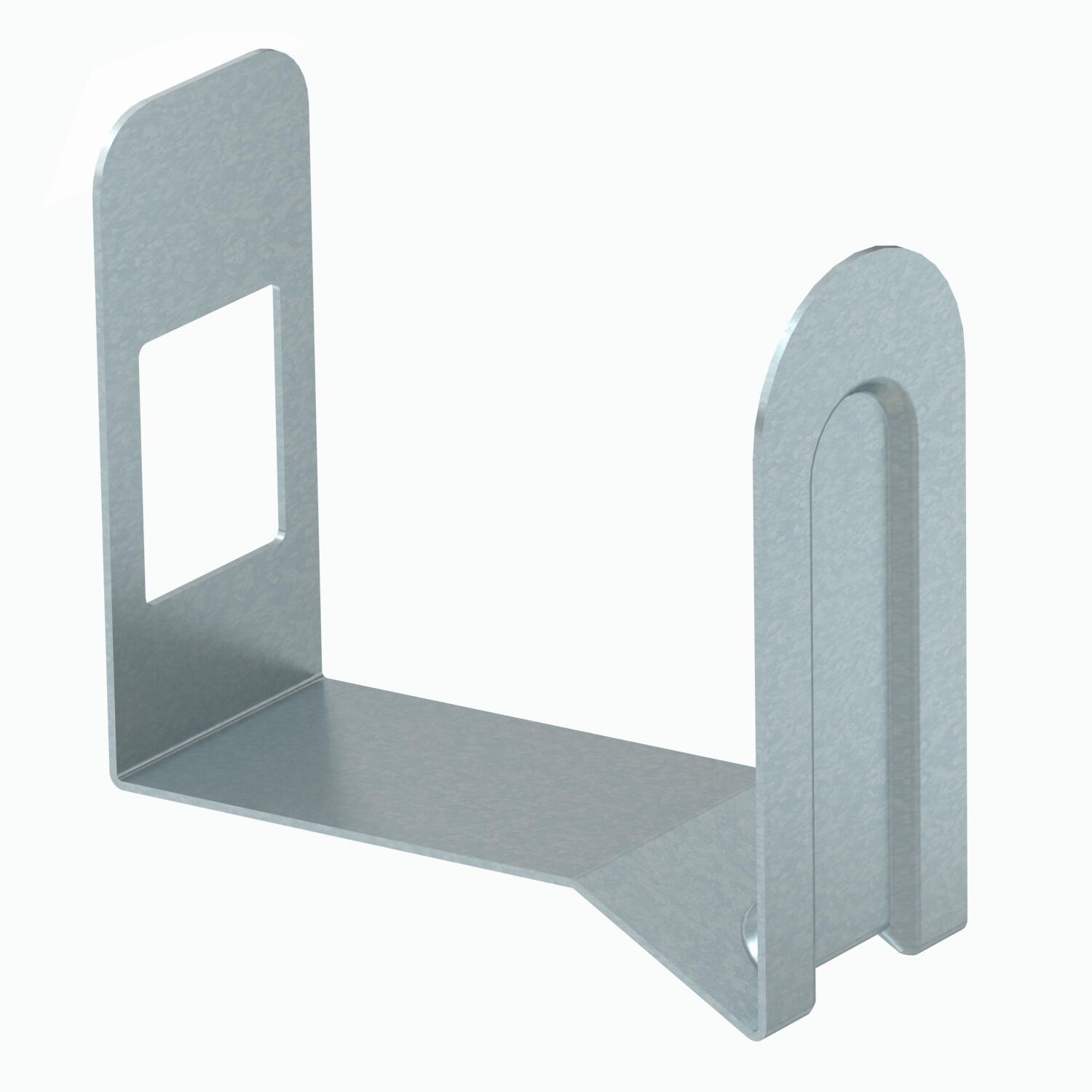

Trunking clamp, LKM, trunking width 80 mm
Item no. 6249882 | EAN 4012195699170
- Product description
-
Product descriptionThe trunking clamp keeps the inserted cables in the trunking, thus simplifying installation on walls and ceilings. The trunking clamps are plugged onto the loop perforation and locked on the side wall. Suitable for trunking width 80 mm.
-
- Technical data
-
Technical data
Colour zinc Cover width 80 mm Dimension 65mm Fastening type Lockable for duct dimension 80 x 80 Halogen-free yes Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Self-extinguishing no Surface Electrogalvanised, blue-passivated With equipotential bonding no Dimensions

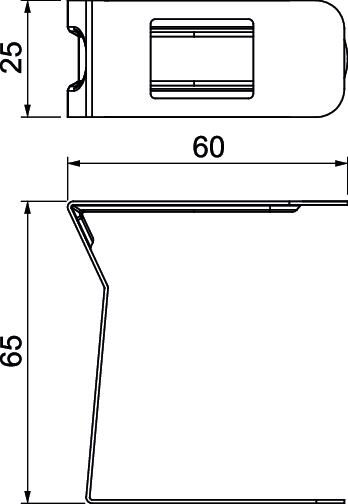

Dimension a 25 mm Dimension b 60 mm Dimension c 65 mm Height 65 mm Length 25 mm Width 60 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,0493 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,0493 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-21T00:00:00.000+0200 - All types
- Downloads
-
Data sheet LKM K65 / 6249882 , 0.19MB , pdfEU declaration of conformity LKM K65 / 6249882 , 0.10MB , pdfUK Declaration of Conformity LKM K65 / 6249882 , 0.09MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
