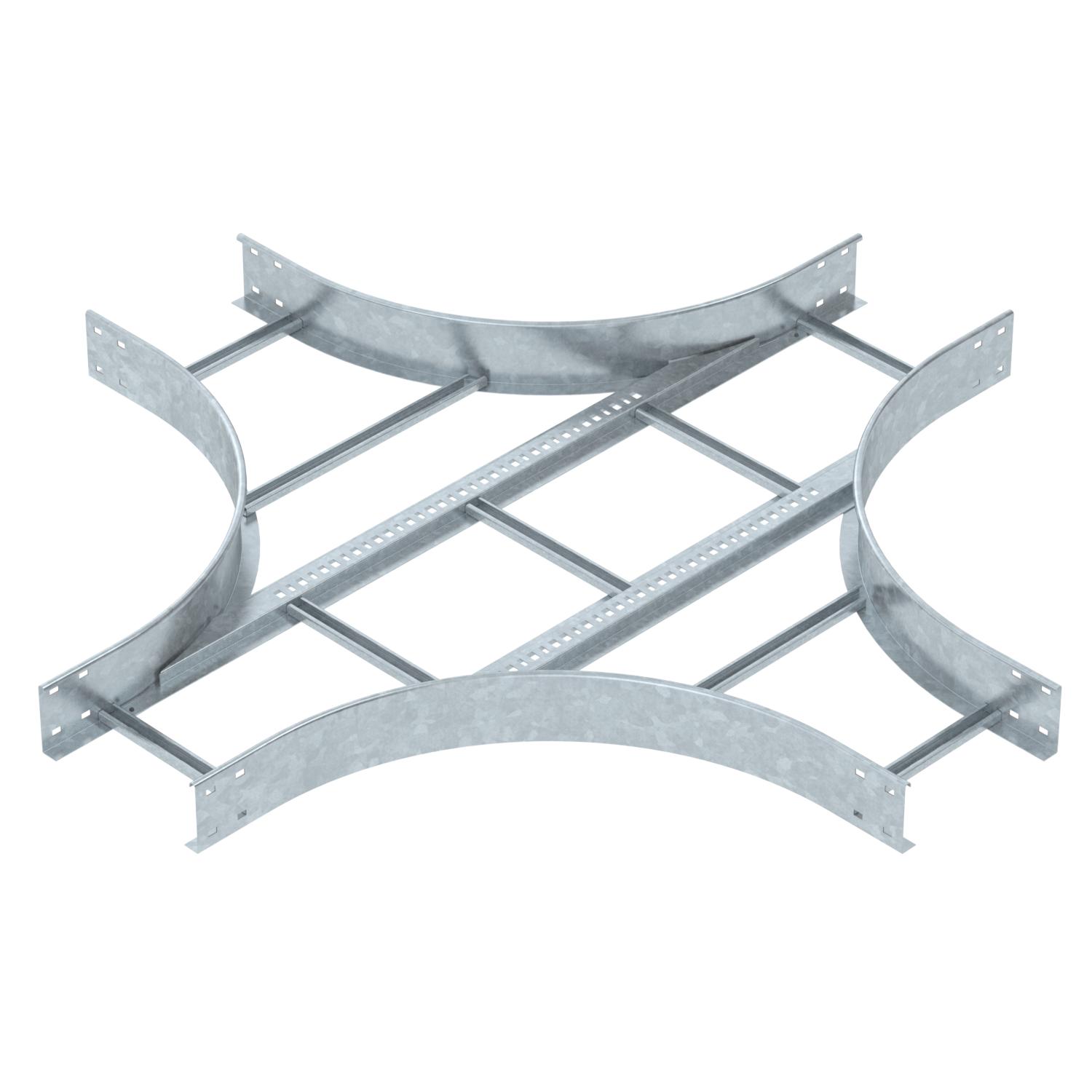

110 FT cross-over
Item no. 6219704 | EAN 4012196685615
- Product description
-
Product descriptionCross-over for the creation of horizontal branches, fitting for cable ladders of side height 110 mm. With connector perforation. Can be used indoors and outdoors. Connector and fastening material must be ordered separately. Fittings must be supported by the support structure.
-
- Technical data
-
Technical data

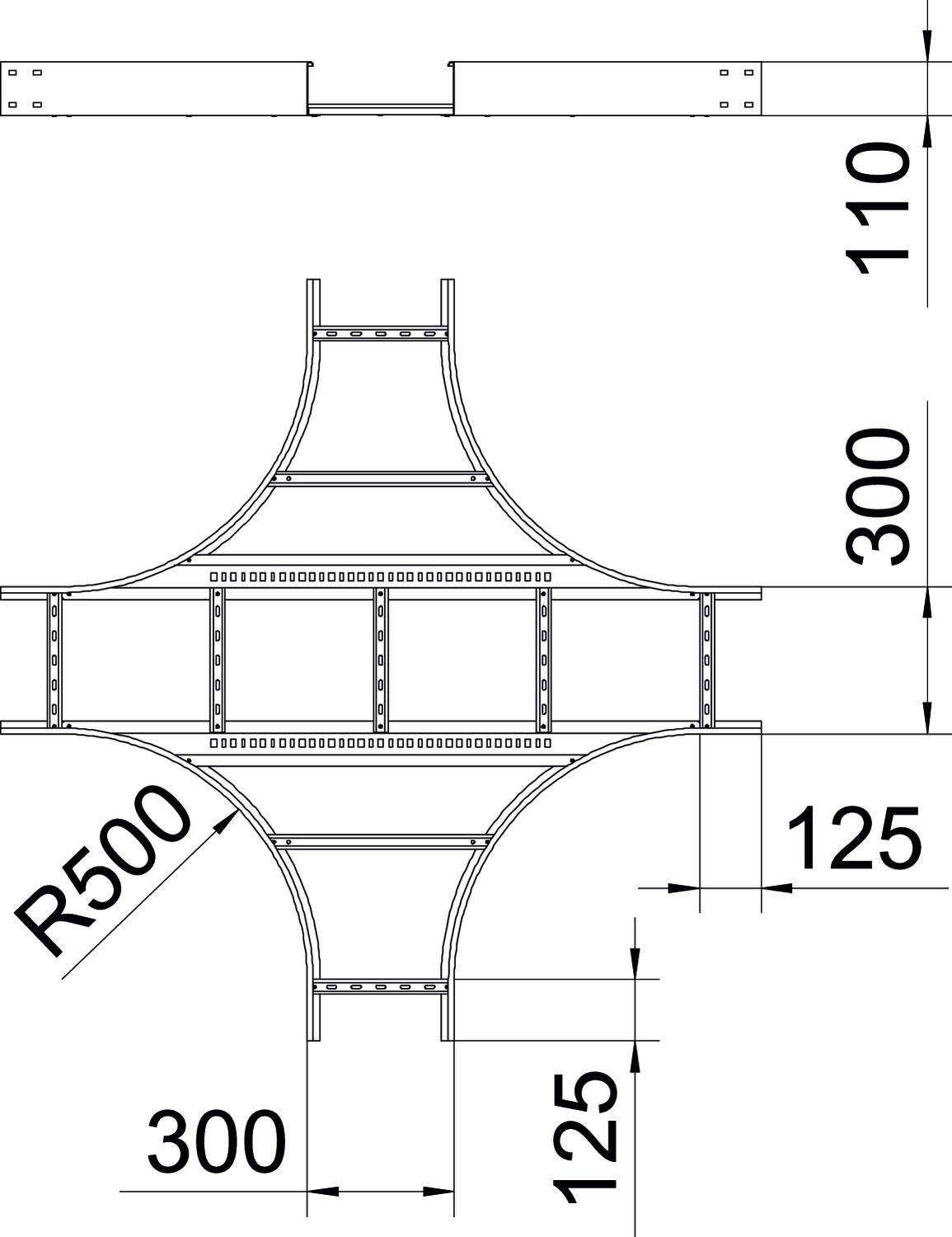

Colour zinc Dimension 110x300 Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Profile (open) Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version no Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
Data sheet LK 1130 R5 FT / 6219704 , 0.21MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity LK 1130 R5 FT / 6219704 , 0.10MB , pdfUK Declaration of Conformity LK 1130 R5 FT / 6219704 , 0.09MB , pdfREACH Declaration of conformity LK 1130 R5 FT / 6219704 , 0.12MB , pdfRoHS Declaration of conformity LK 1130 R5 FT / 6219704 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
